Removing and Installing/Replacing Flywheel (M54)

11 22 500 - Removing and installing/replacing flywheel (M54)





Special tools required:
- 11 4 180
- 11 9 260 11 9 260 Counter Support with Screw Connection
- 11 9 265 11 9 260 Counter Support with Screw Connection





Necessary preliminary tasks:
- Remove exhaust system Service and Repair.
- Remove transmission.
- Remove clutch Service and Repair (manual transmissions only).





Note:

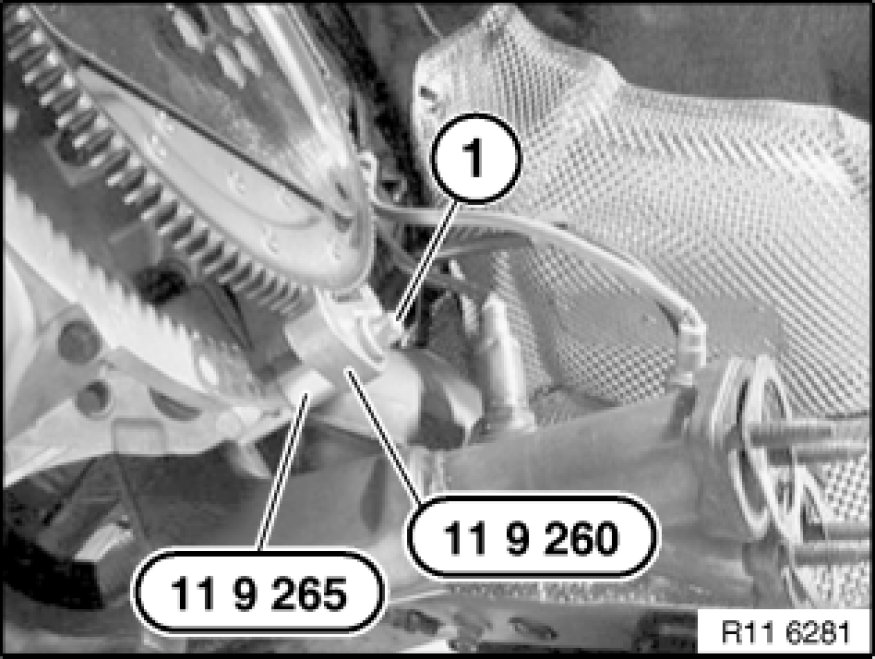

Automatic transmissions only:

Secure flywheel with transmission screw (1) and special tools 11 9 260 11 9 260 Counter Support with Screw Connection and 11 9 265 11 9 260 Counter Support with Screw Connection.

Unfasten flywheel screws.
Tightening torque: 11 22 1AZ 11 22 Flywheel.





Note:

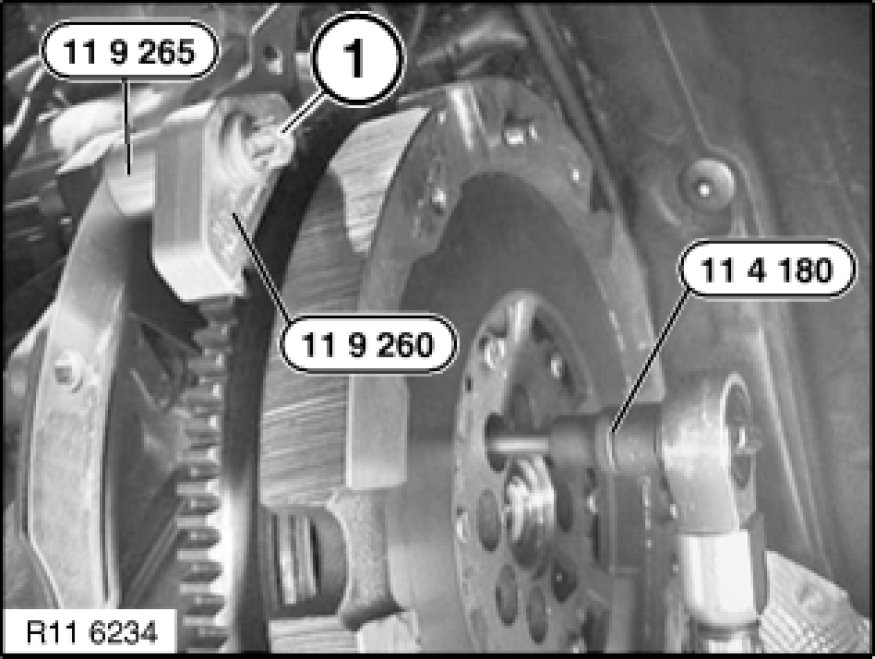

Manual transmissions only:

Secure flywheel with transmission screw (1) and special tools 11 9 260 11 9 260 Counter Support with Screw Connection and 11 9 265 11 9 260 Counter Support with Screw Connection.

Release flywheel screws with special tool 11 4 180.
Tightening torque: 11 22 1AZ 11 22 Flywheel.





Installation:
Check dowel sleeves for damage and firm seating.

Assemble engine.
