Replacing Radial Shaft Seal for Manual Shift Valve Shaft (A5S 360R/390R/A4S 200R)
24 50 001 - Replacing radial shaft seal for manual shift valve shaft (A5S 360R/390R/A4S 200R)
Special tools required:
- 24 5 361 24 5 360 Fixture
- 24 5 362 24 5 360 Fixture
- 24 5 363 24 5 360 Fixture
- 24 5 364 24 5 360 Fixture
Important!
After completion of work, check transmission oil level Procedures.
Use only the approved automatic transmission fluid in this automatic transmission.
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Grip clamping sleeve (1).
Loosen nut (2).
Tightening torque 24 51 1AZ [1][2]Shift Linkage, A/T.
Unscrew nut (1).
Tightening torque 25 16 2AZ [1][2]Shifter A/T.
Remove selector lever (4).

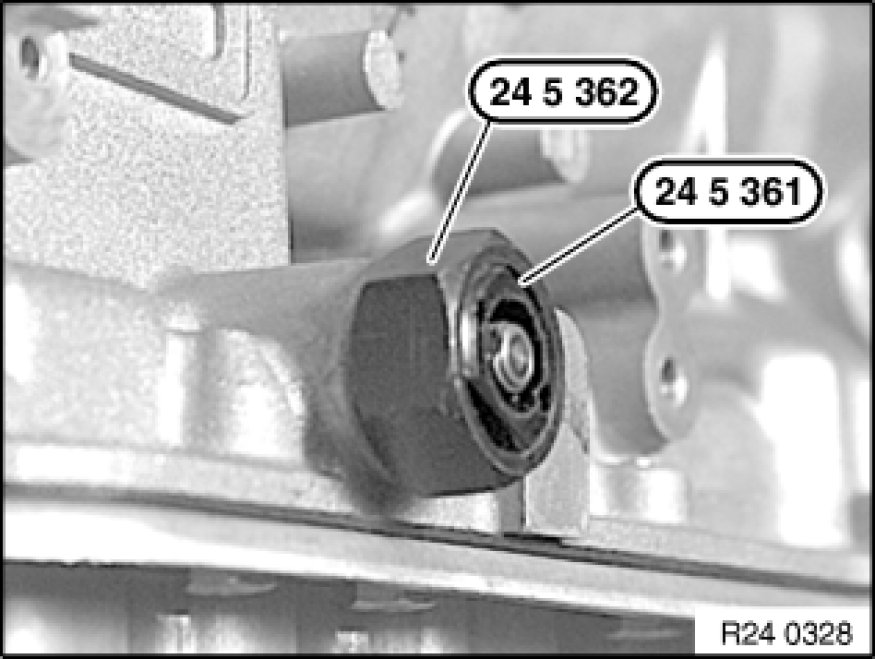

Screw special tool 24 5 361 24 5 360 Fixture into radial shaft seal.
Screw special tool 24 5 362 24 5 360 Fixture onto special tool 24 5 361 24 5 360 Fixture and tighten down.
This pulls the radial shaft seal out of the transmission housing.

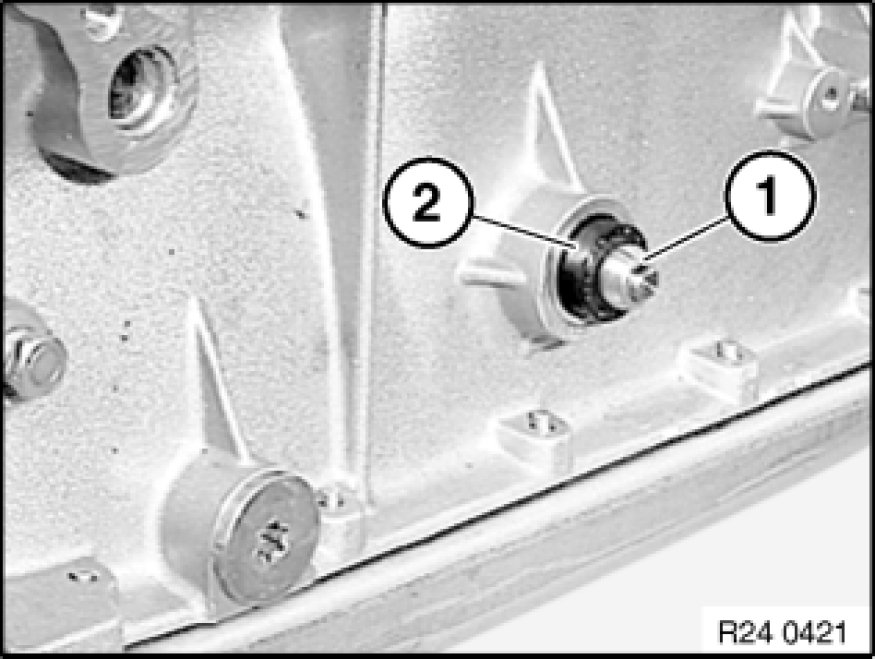

Screw adapter sleeve (1) from seal set onto manual shift valve shaft.
Moisten sealing lips of radial shaft seal (2) with automatic transmission fluid.
Push radial shaft seal (2) onto manual shift valve shaft. Press radial shaft seal (2) as far as possible into transmission housing.
Grip radial shaft seal (2) firmly.
Unscrew adapter sleeve (1) from manual shift valve shaft.

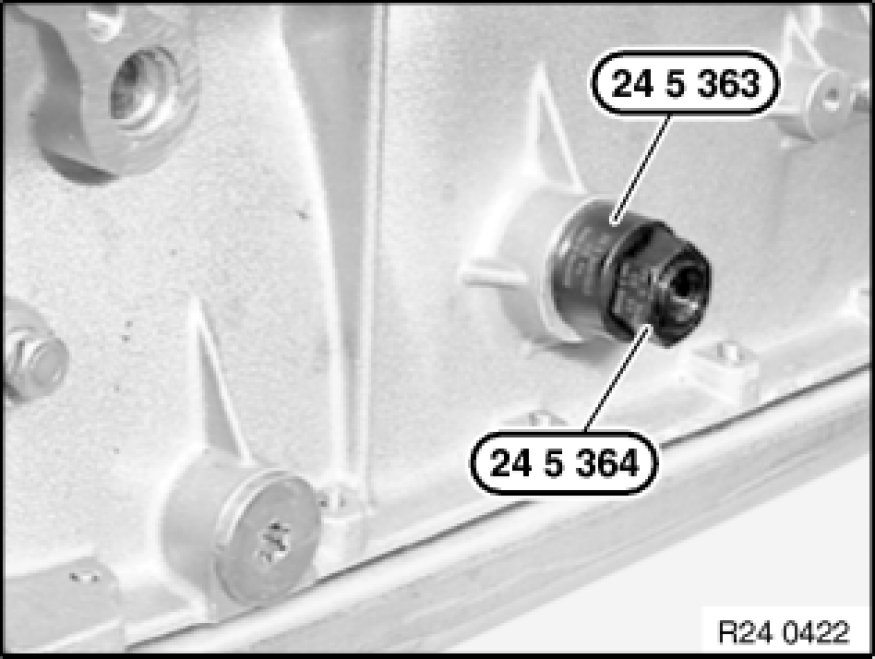

Pull radial shaft seal into transmission housing up to stop with special tools 24 5 363 24 5 360 Fixture and 24 5 364 24 5 360 Fixture.
Installation:
Adjust selector lever Adjustments.
E46 4WD:
Selector shaft sealing cap on left transmission side leaking.
Lever out sealing cap (1) with a screwdriver (2).

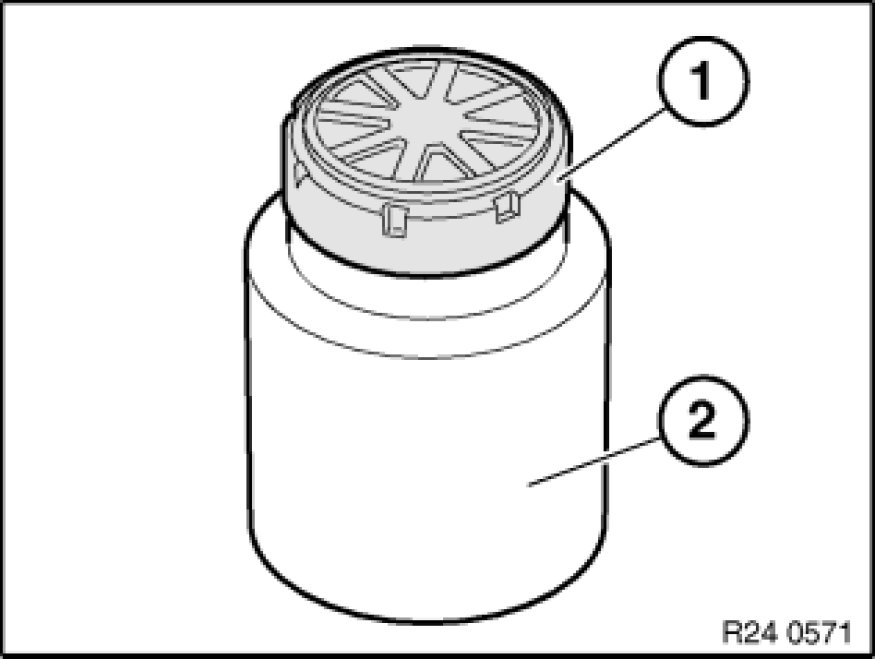

Place new sealing cap (1) on drift (2).
Note:
Drift (2) for driving in sealing cap is contained in repair kit.

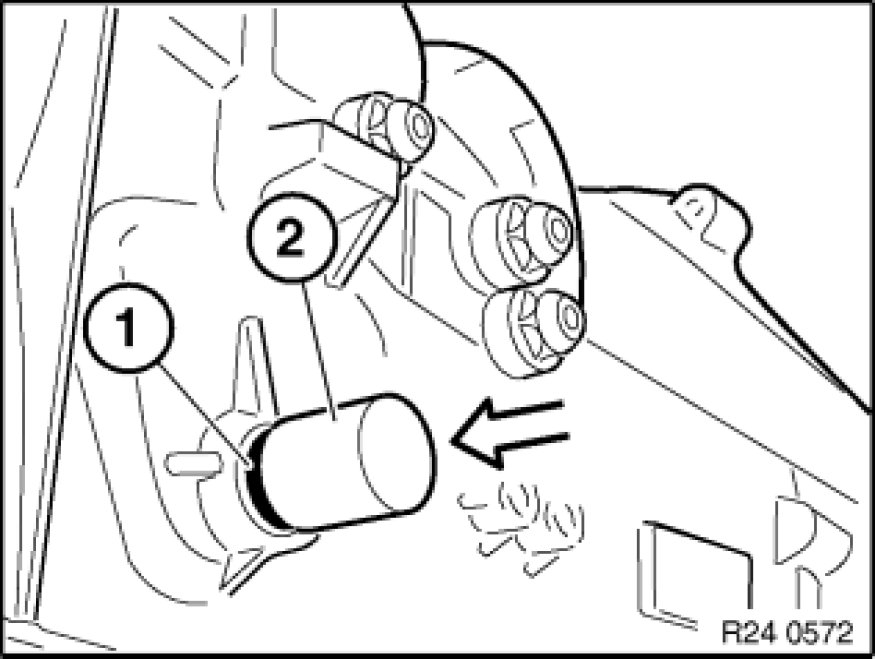

Drive in new sealing cap (1) with drift (2) as far as it will go.
