Replacing One Rubber Mount in Lower Control Arm (Control Arm Removed)

33 32 681 - Replacing one rubber mount in lower control arm (control arm removed)





Special tools required:
- 33 3 351 33 3 350 Set of Tools
- 33 3 352 33 3 350 Set of Tools
- 33 3 353 33 3 350 Set of Tools
- 33 3 354 33 3 350 Set of Tools





Attach special tool 33 3 354 33 3 350 Set of Tools between both control arms.

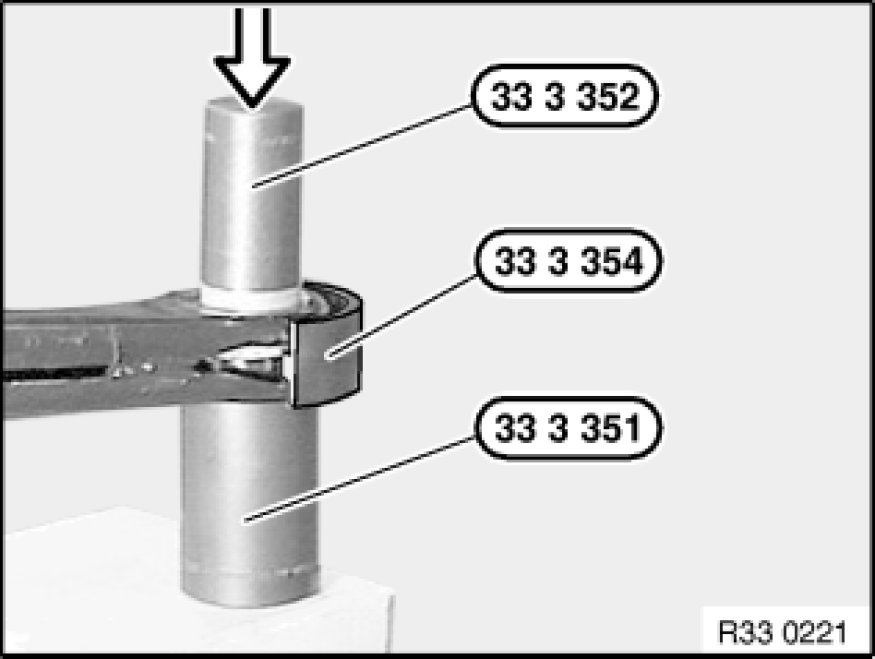

Press rubber mount with special tools 33 3 351 33 3 350 Set of Tools and 33 3 352 33 3 350 Set of Tools out of lower control arm.





Attach special tool 33 3 354 33 3 350 Set of Tools between both control arms.

Press in new rubber mount (1) with special tools 33 3 351 33 3 350 Set of Tools and 33 3 353 33 3 350 Set of Tools.





After installation:

- Perform chassis alignment check
