Removing and Installing/Replacing Belt Pulley on Vane Pump for Power Steering

32 41 100 - Removing and installing/replacing belt pulley on vane pump for power steering





Note:
Carry out preliminary work as described in the document "Replacing drive belt Replacing Alternator Drive Belt (M52/S52/M52TU/M54/M56)".

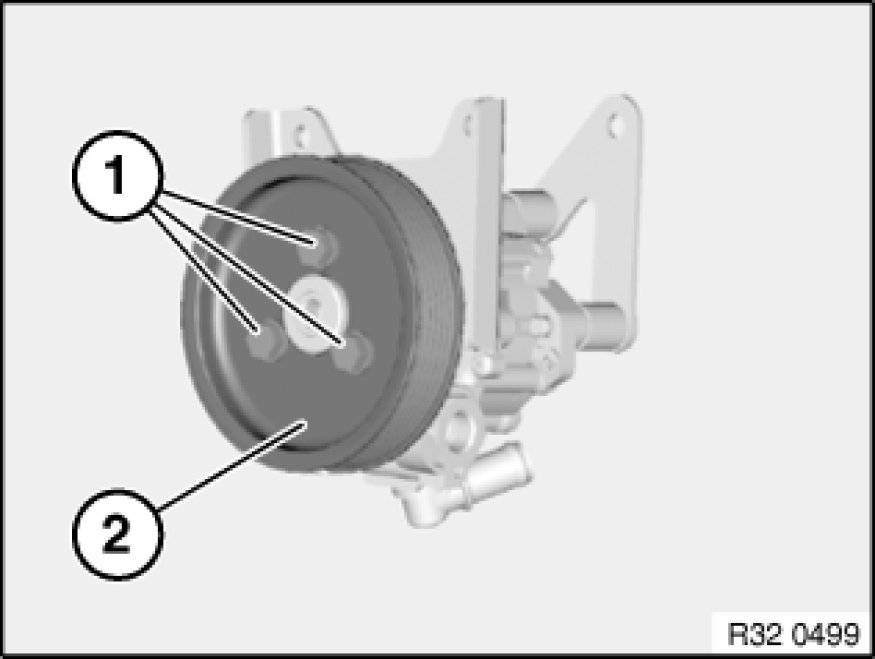

Slacken screws (1)
Relieve tension on drive belt Replacing Alternator Drive Belt (M52/S52/M52TU/M54/M56) and remove from belt pulley (2).
Unscrew bolts (1) and remove belt pulley (2).

Installation:
Lettering on belt pulley (2) must point forwards.
Tightening torque 32 41 14AZ Pump and Oil Supply.
