Replacing Pressure Line for Power Steering (M54)

32 41 332 - Replacing pressure line for power steering (M54)





Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable container.





Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove front underbody protection Removing and Installing/Replacing Front Underbody Protection

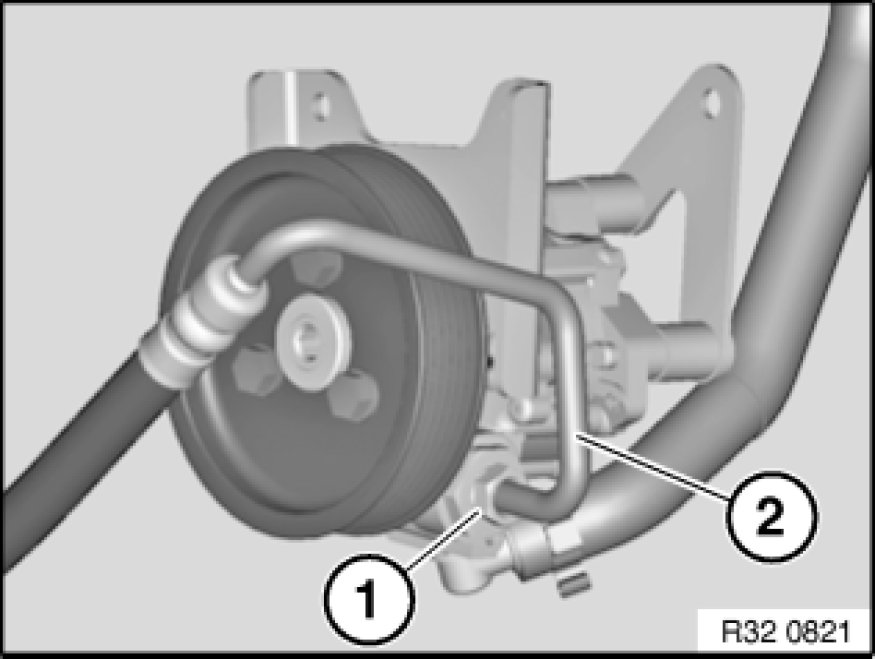

Release union screw (1) and detach pressure line (2) from vane pump.

Installation Note:
Replace sealing ring.
Make sure hydraulic line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 3AZ Pump and Oil Supply.





Expose pressure line up to connection on power steering gear.





Release FCD coupling Notes on Removing/Installing FCD Clutches and disconnect pressure line.





After installation:
- Fill and bleed hydraulic system Service and Repair
- Check pipe connections for leaks
