Mechanical Components

Mechanical Components

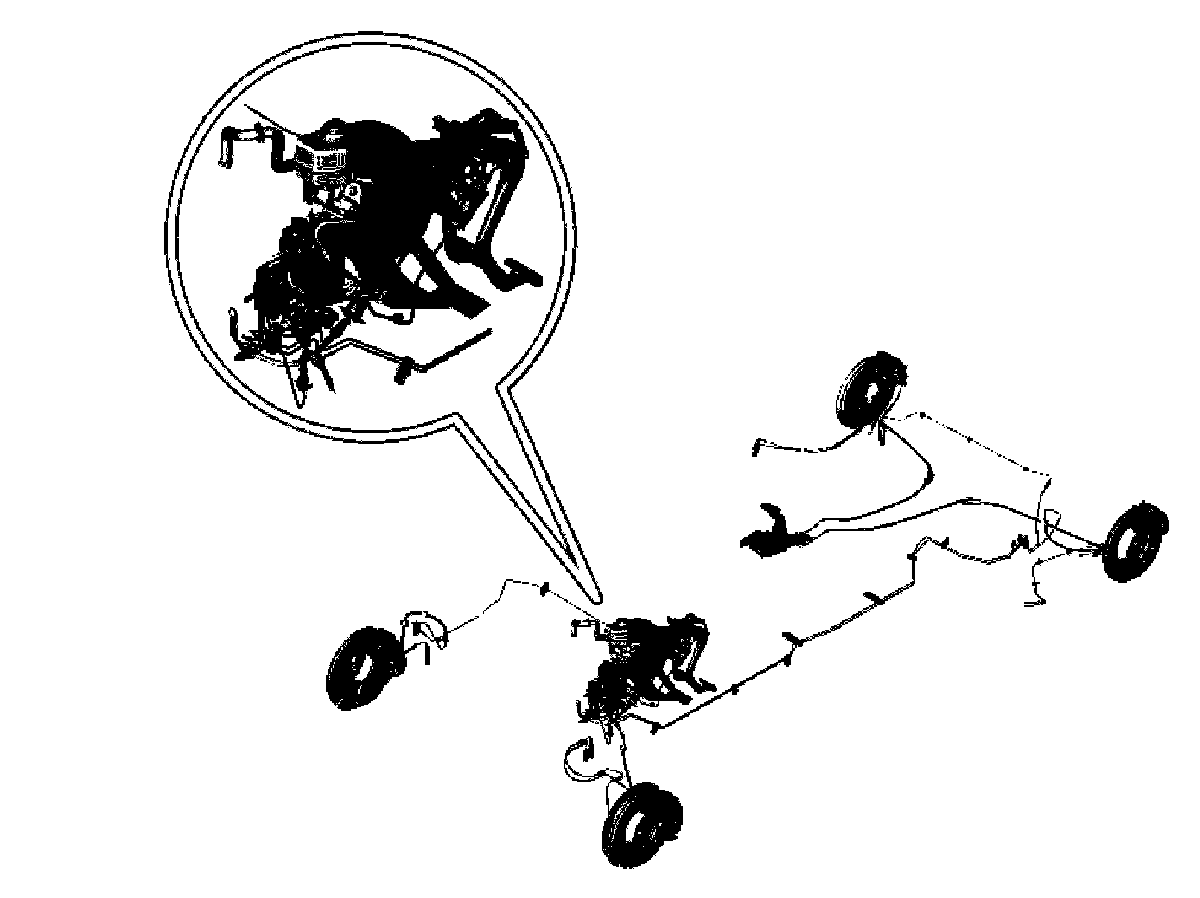

The brake system consists of the following components:

Four Wheel Hydraulic Disc Brakes
The front brakes are constructed of ventilated brake discs 325mm diameter x 25mm thick (Geomet coating) with FN57/25 single piston floating calipers.
The rear brake brakes are constructed of ventilated brake discs 320mm diameter x 22mm thick (Geomet coating) with FN42/22 single piston floating calipers.
