FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2005
>>
X3 3.0i (E83) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Cooling System
>>

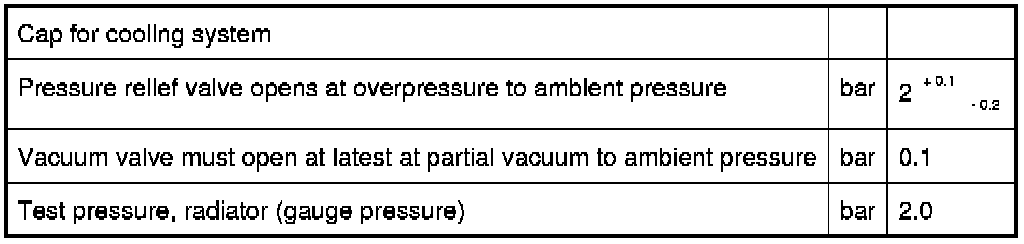

System Specifications
System Specifications
17 11 Radiator and Mounting Parts M52TU/M54
