Replacing Rubber Sleeve Between Fuel Filler Pipe and Fuel Tank

16 11 071 - Replacing rubber sleeve between fuel filler pipe and fuel tank





Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.





Important!
Ensure adequate ventilation in the place of work!
Avoid skin contact (wear gloves)!
Before starting the engine for the first time:
- Fill fuel tank with at least 5 liters of fuel.





Necessary preliminary tasks:
- Draw off fuel from fuel tank Procedures
- Remove right underbody panelling Removing and Installing/Replacing Left or Right Underbody Panelling

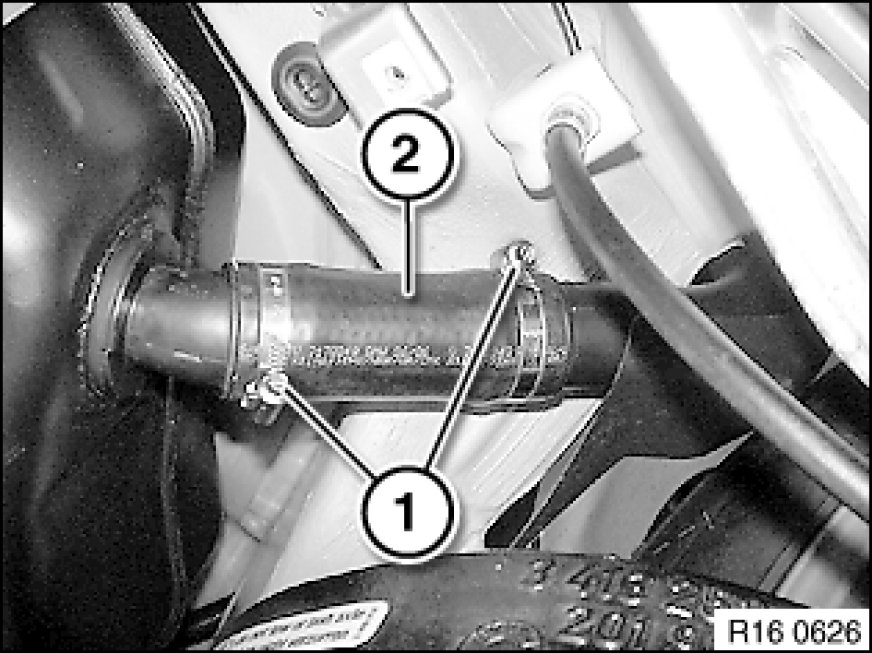

Loosen hose clamps (1).
Detach rubber sleeve (2) first from fuel filler pipe and then from fuel tank.

Installation:
Tightening torque 16 12 10AZ 16 12 Fuel Delivery.
