Fuel Rail: Service and Repair

13 53 240 - Replacing complete injection pipe (M54)





Necessary preliminary tasks:
- Switch off ignition
- Remove cover for fuel injectors





Important!

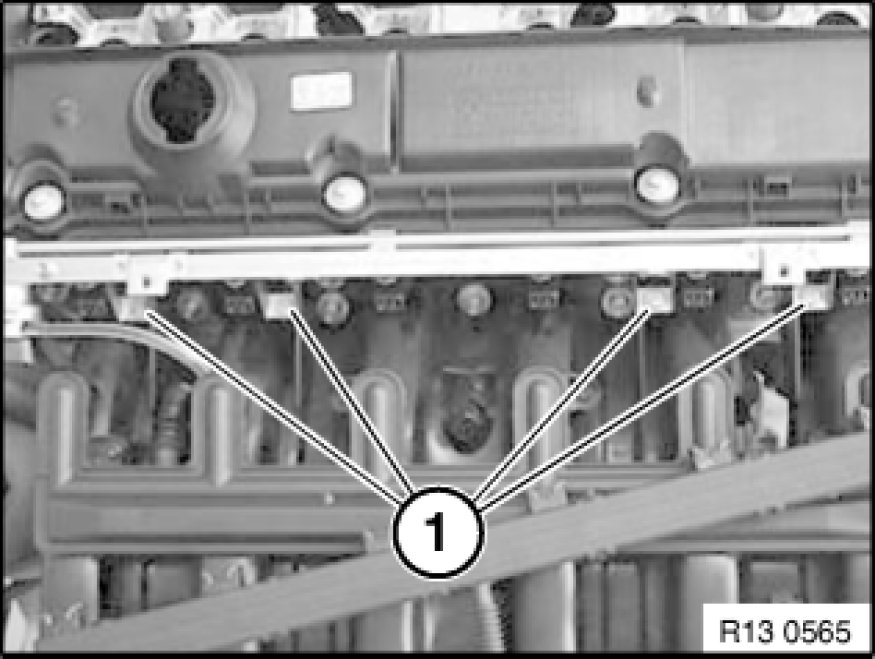

Mark plug connections (1) of monitor sensor for cylinder banks 1-3 and 4-6 to prevent them from being mixed up when they are installed later.

Unclip plug connections (1) from holders and disconnect.

When replacing injection pipe:
Remove both holders for plug connections (1) from injection pipe.
Disconnect plug connection (3) on solenoid valve of VANOS adjustment unit.
Detach terminal strip (4) for fuel injectors from injection pipe.





Recycling:
Fuel in fuel lines is under pressure (approx. 3 - 5 bar). Fuel escapes when fuel lines are detached. Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.





Note:
For a better overview, this work step is shown on an engine that has been removed.

Unclip fuel line (1) from holder (2).

Follow instructions for unlocking fuel line Service and Repair.
Unlock fuel line (1) from cylinder head at rear.





Release screws (1) and remove injection pipe with fuel injectors.

Installation:
Coat sealing rings of fuel injectors with anti-seize agent to facilitate fitting of injection pipe.
