Steptronic Switch (X Series_X3-E83 As of 09/05)

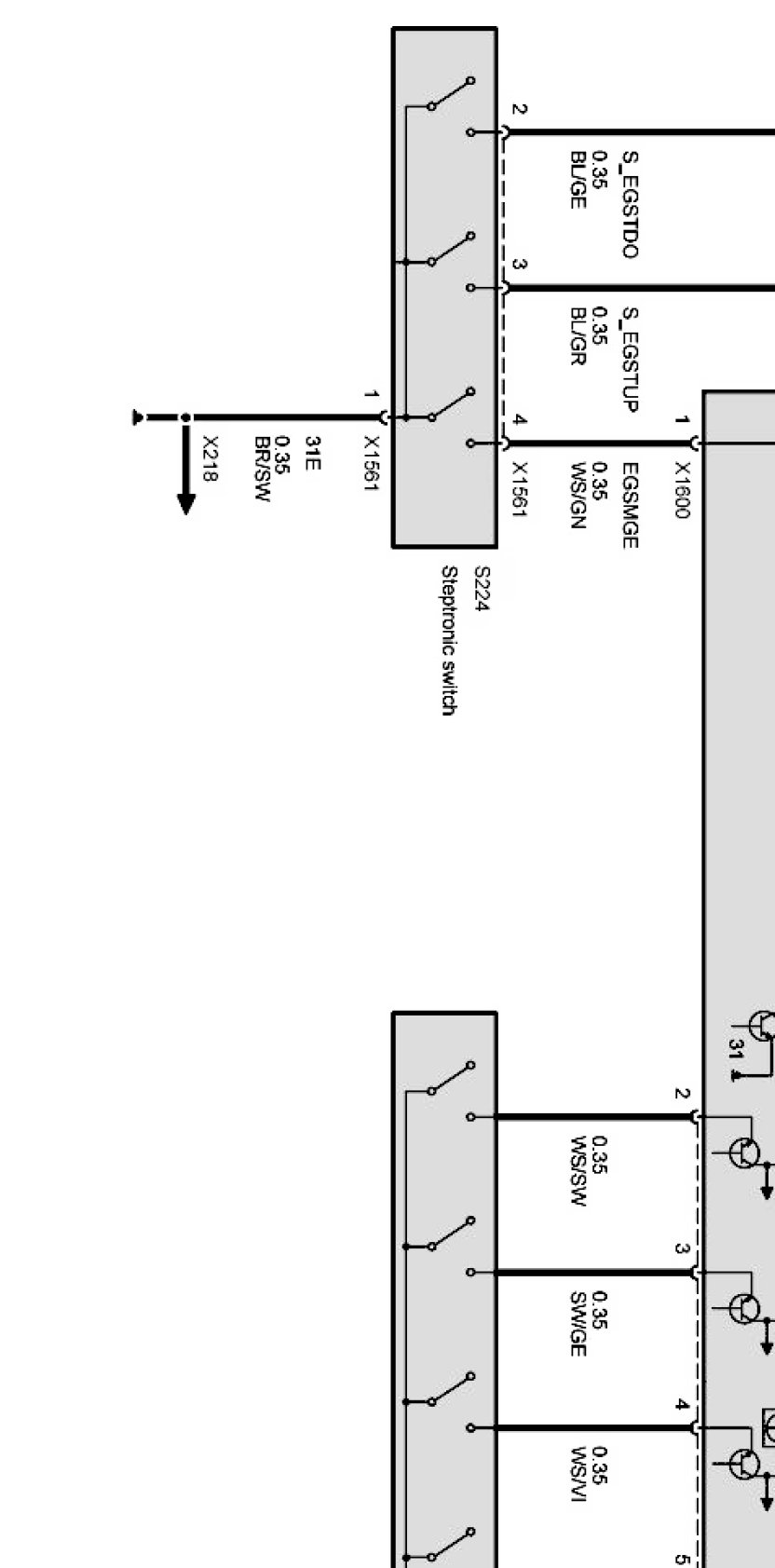

Steptronic switch Part 1:

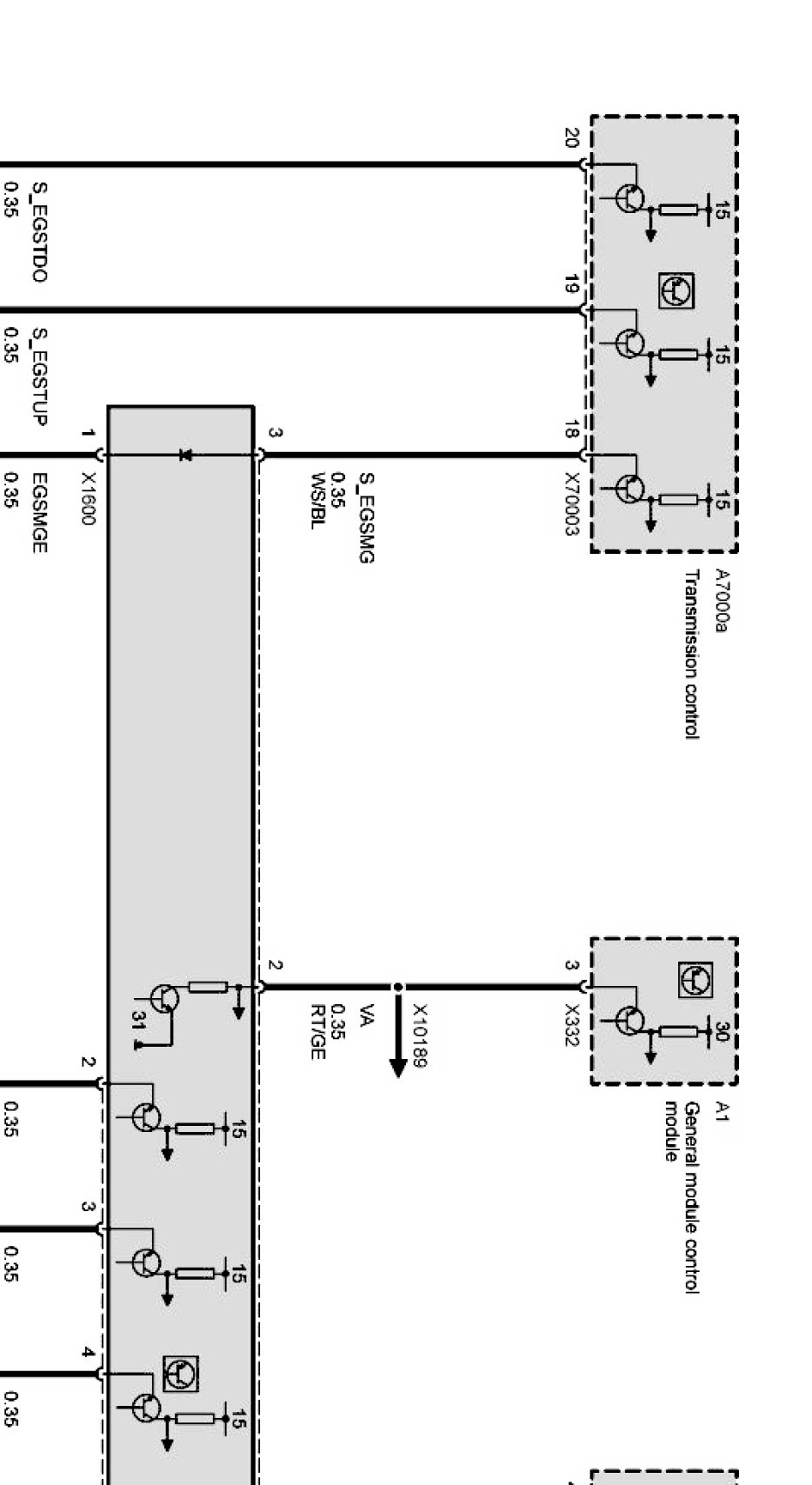

Steptronic switch Part 2:

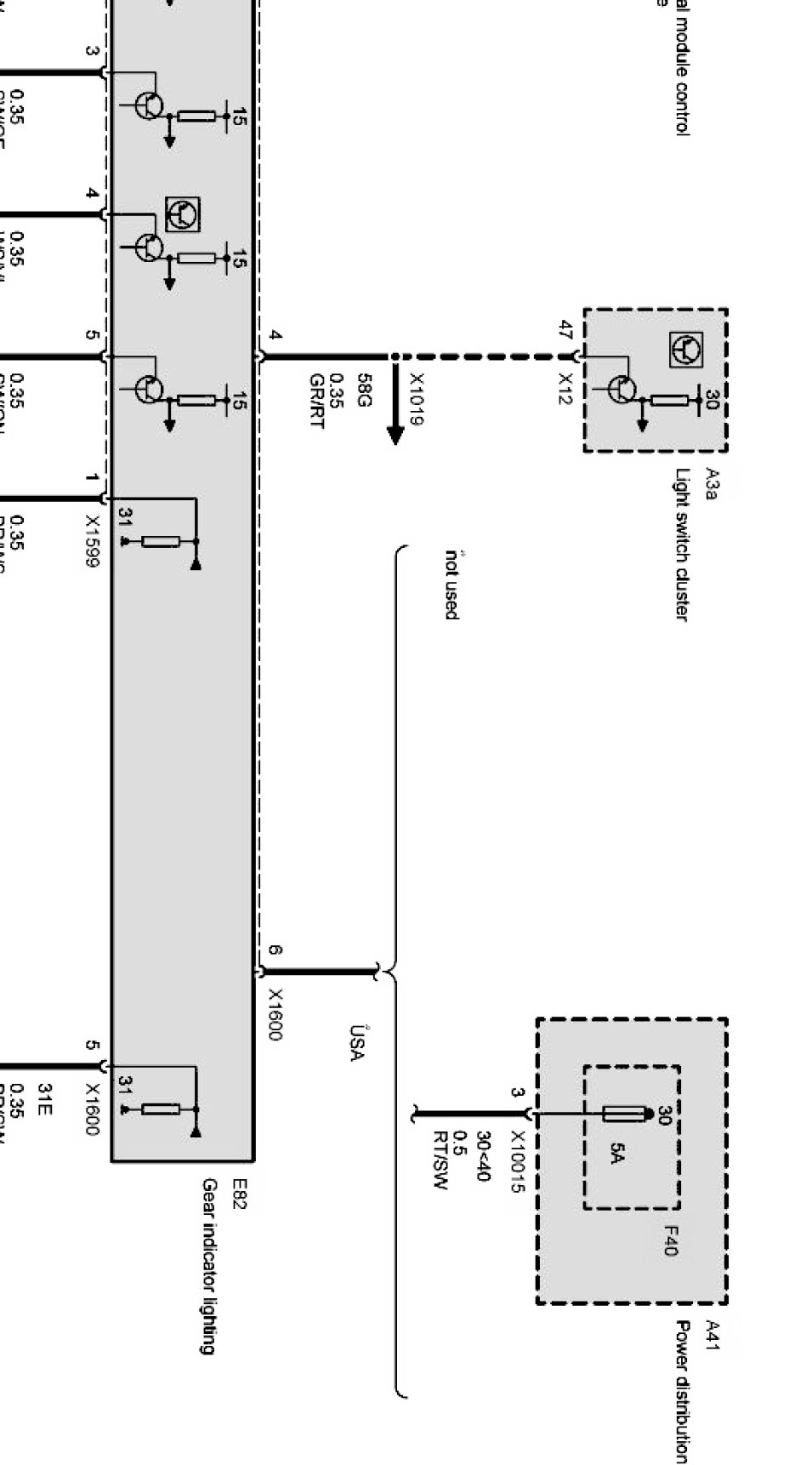

Steptronic switch Part 3:
Steptronic switch Part 4:
