Passenger's Seat Heating (X Series_X3-E83)

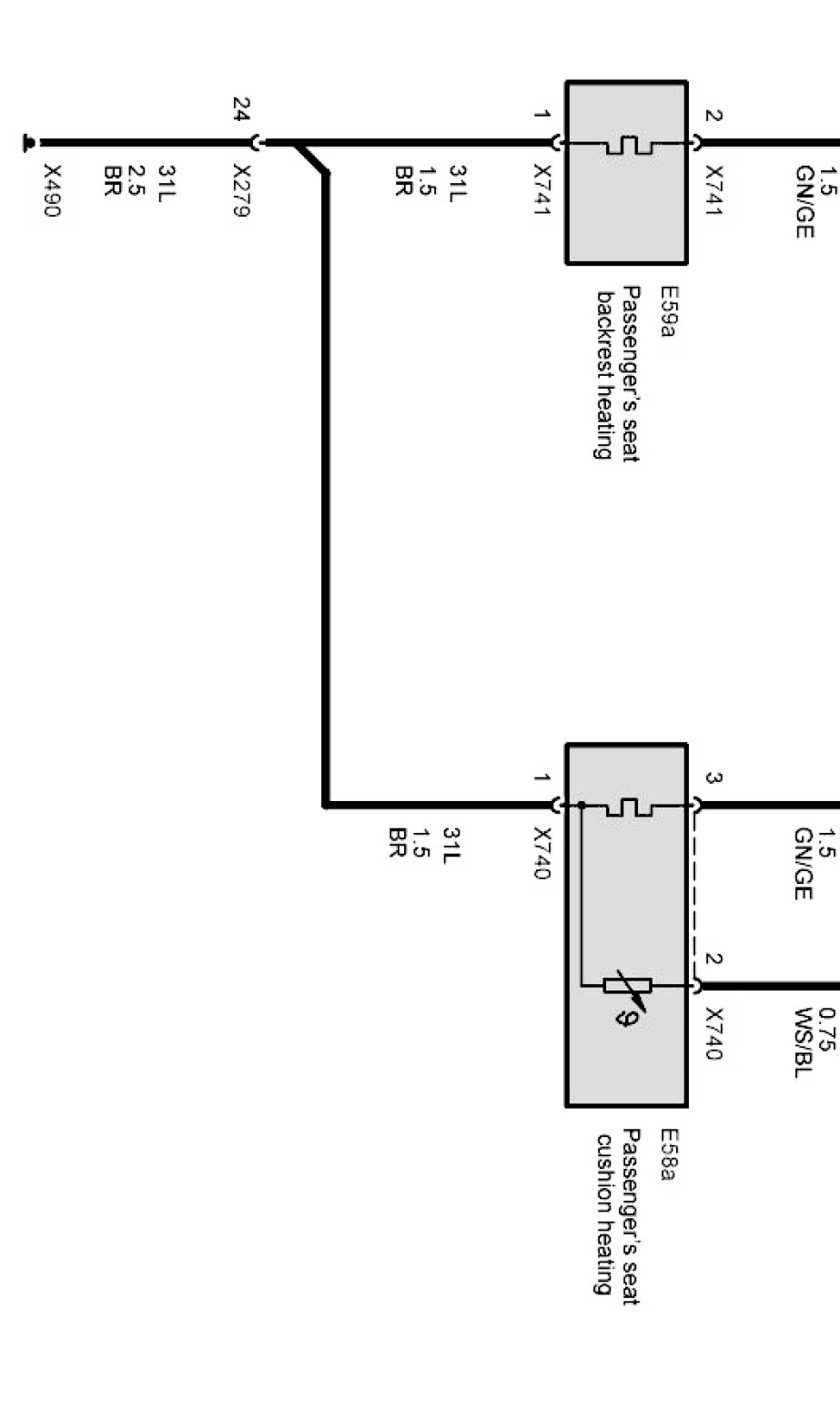

Seat heating, passenger Part 1:



Seat heating, passenger Part 2:
