Cellular Telephone (X Series_X3-E83 With SES Up to 03/05)

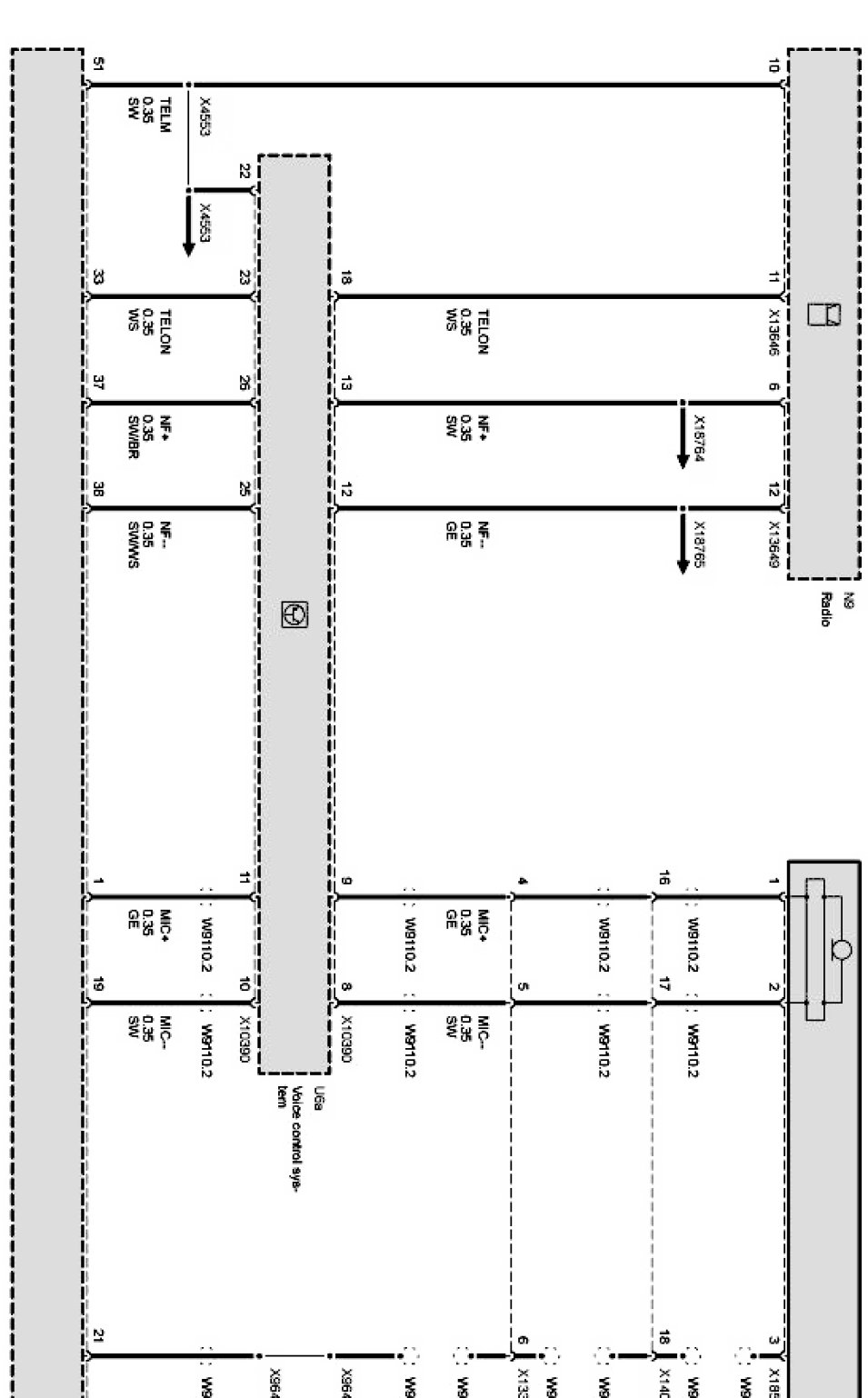

Cellular telephone Part 1:



Cellular telephone Part 2:



Cellular telephone Part 3:



Cellular telephone Part 4:



Cellular telephone Part 5:



Cellular telephone Part 6:
