Speaker (Stereo System E83 As of 09/04 Up to 03/05)
Speaker (Stereo System E83 As of 09/04 Up to 03/05)

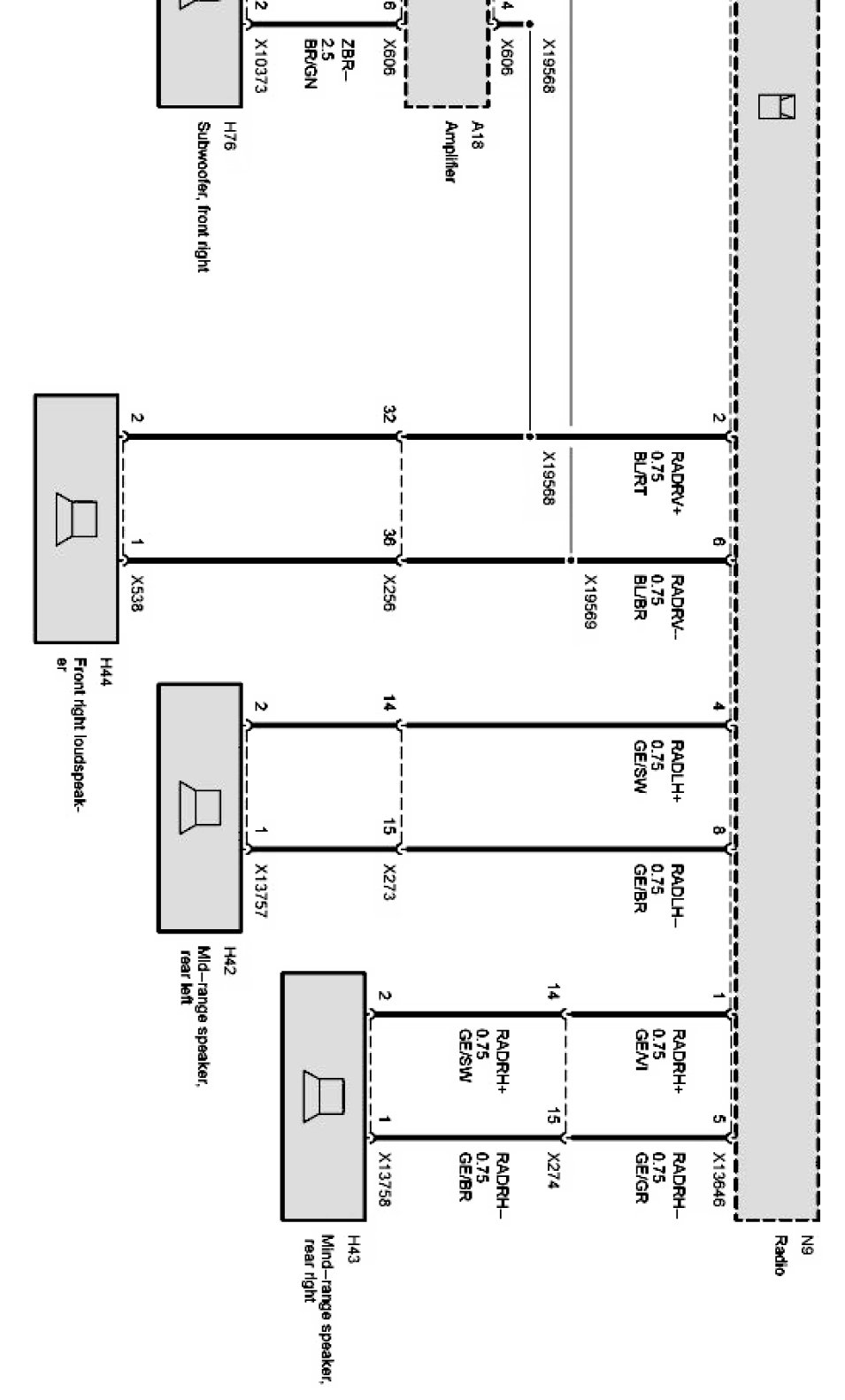

Speaker Part 1:
Speaker Part 2:
