X3 3.0i (E83) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X10266
>>
A18 Amplifier (X Series With Hifi System E83)
A18 Amplifier (X Series With Hifi System E83)

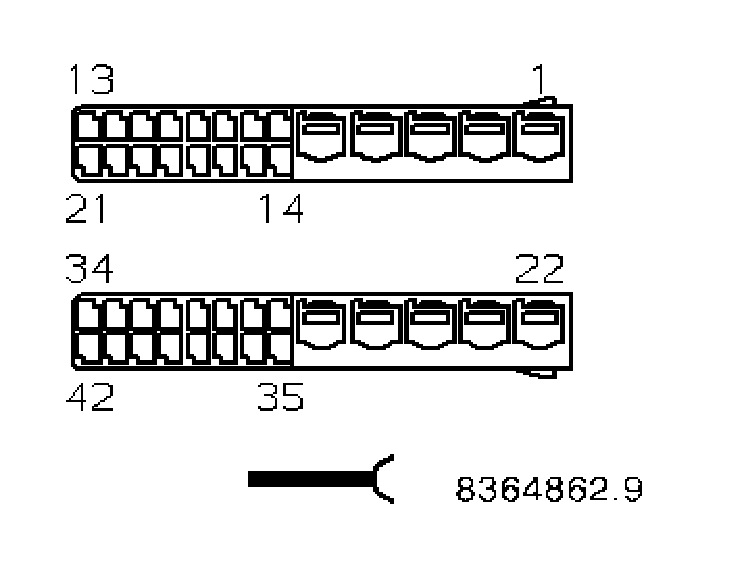

X10266:

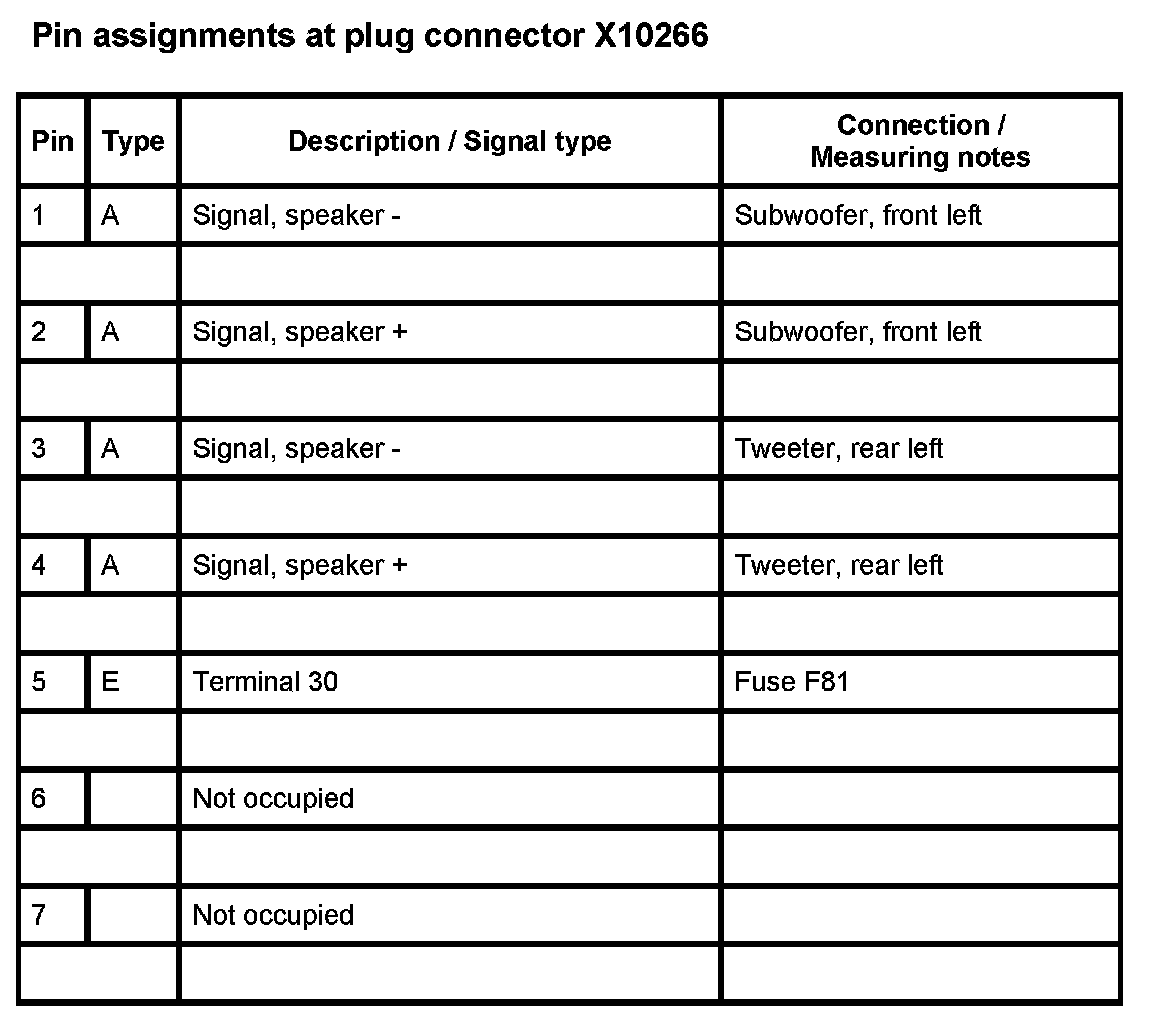

X10266 - Part 1:

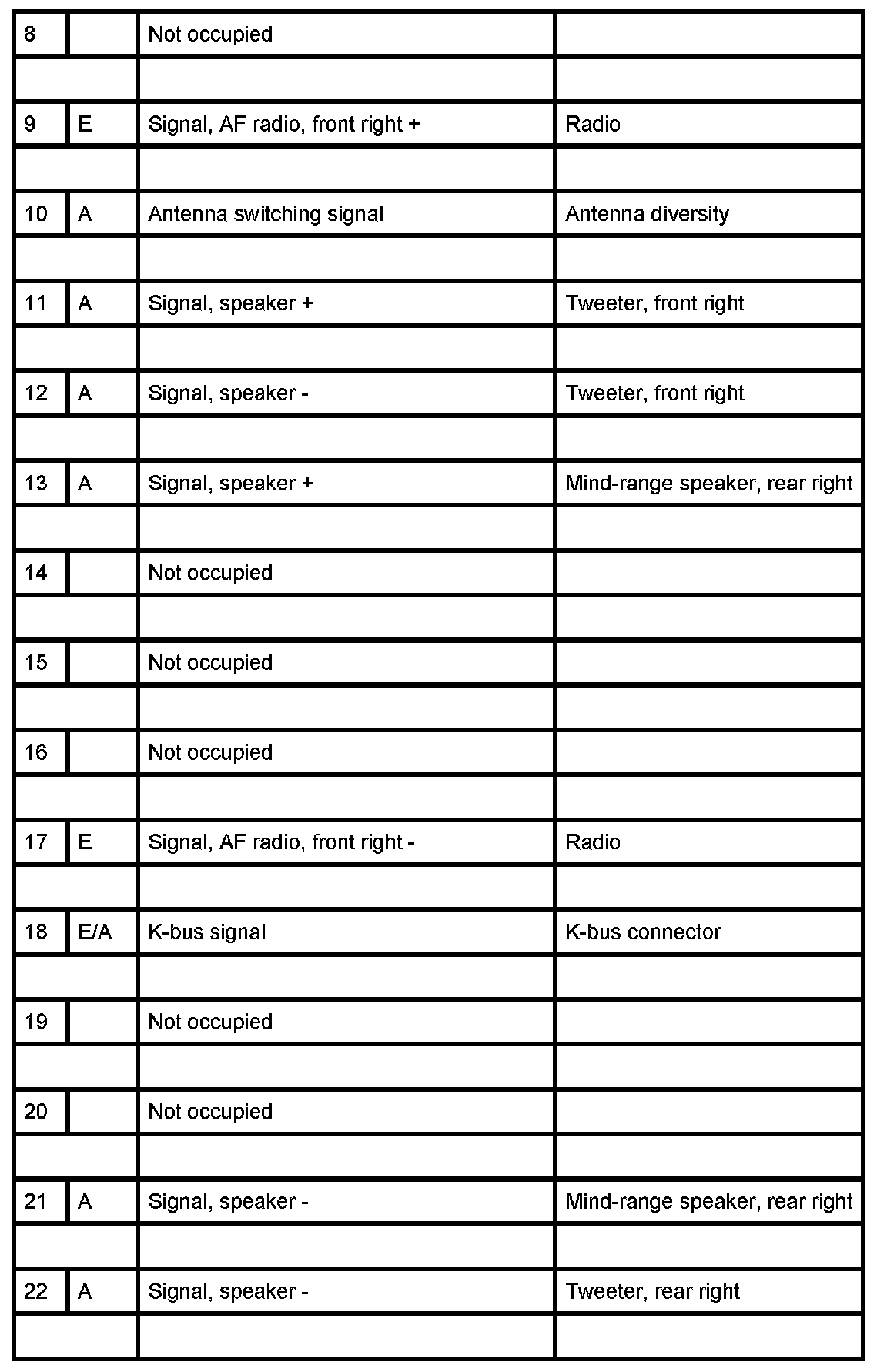

X10266 - Part 2:

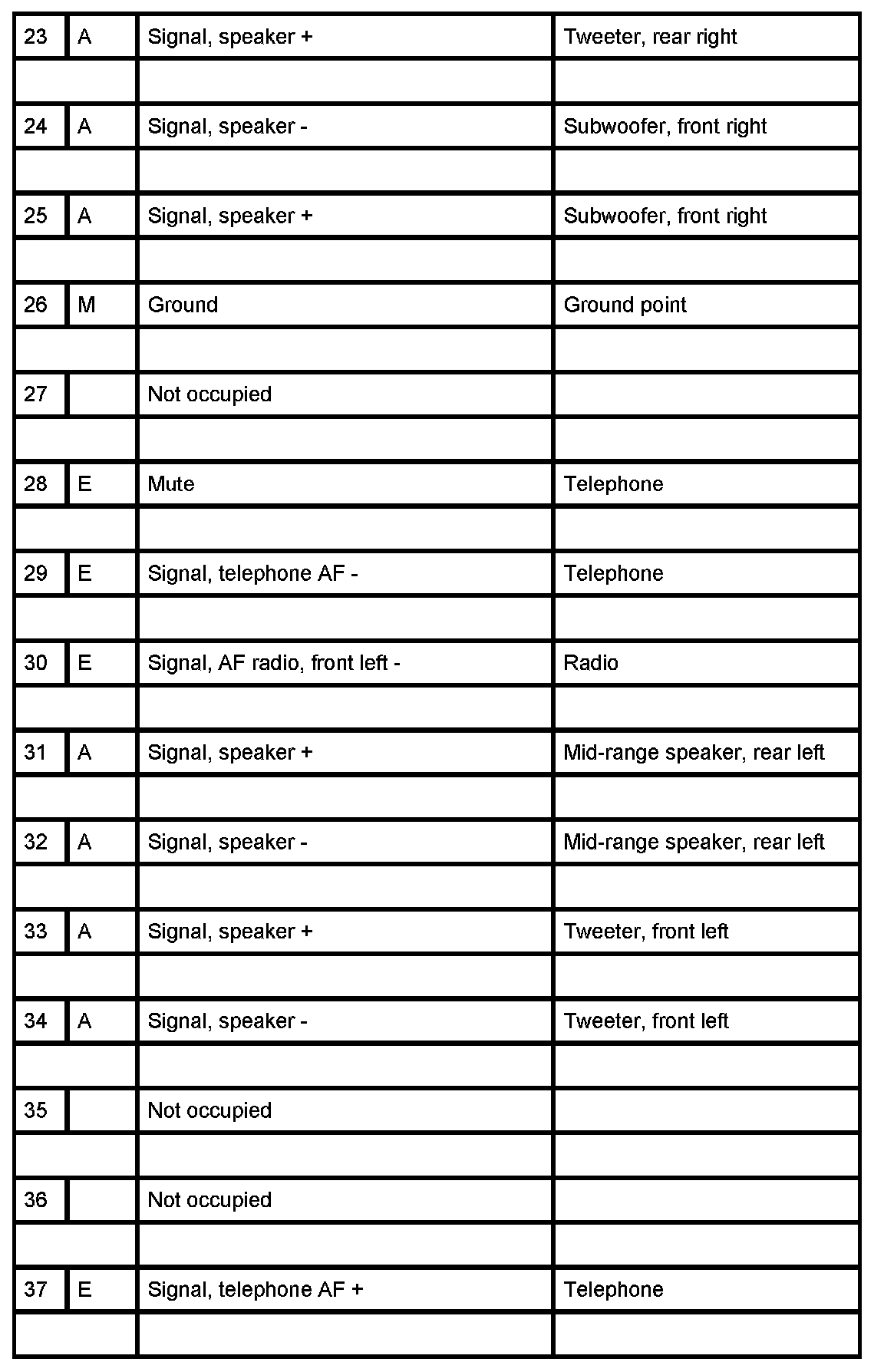

X10266 - Part 3:

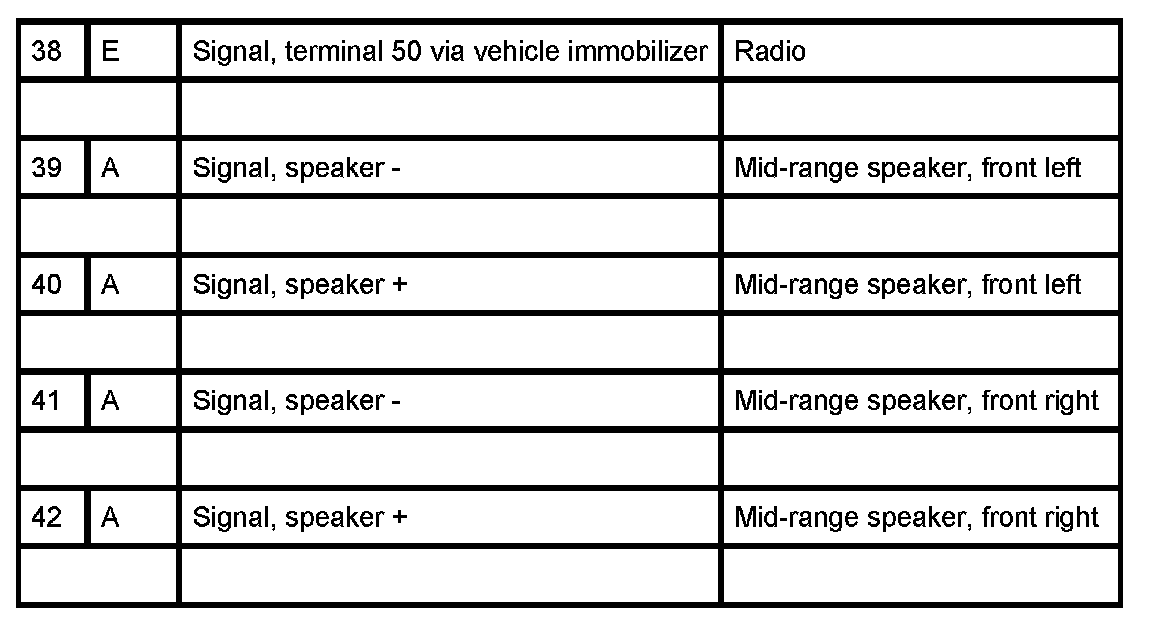

X10266 - Part 4:
