Replacing Rubber Guide For Front Left or Right Door Window Glass (Coupe)

51 32 211 Replacing Rubber Guide For Front Left Or Right Door Window Glass (Coupe)

Remove rearview mirror from front door.
Remove front door window glass.
Remove outer cavity strip.

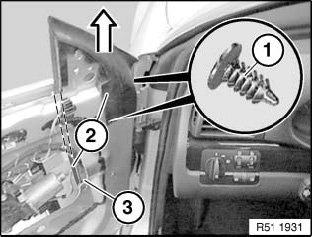

Release rivet (1).
Pull rubber guide (2) completely out of front door.

Installation:
Prior to installation, coat rubber guide (2) with soapy solution (washing-up liquid).
Insert rubber guide at front/bottom into window guide rail (3).







Installation:

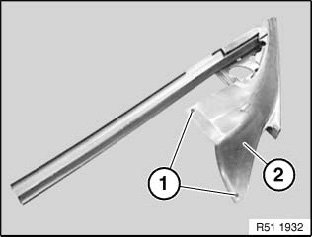

Bores (1) in rubber guide (2) must not be damaged.
