Wiper Motor: Service and Repair

61 61 270 Removing and Installing Complete Wiper Console

Necessary Preliminary Tasks:
- Remove cowl panel cover. Please refer to: Vehicle/ Body and Frame/ Unibody/ Cowl/ Cowl Moulding/Trim/ Service and Repair/ Remove and Replacement Service and Repair
- Remove heater bulkhead. Please refer to: Vehicle/ Body and Frame/ Unibody/ Cowl/ Cowl Moulding/Trim/ Service and Repair/ Remove and Replacement Service and Repair

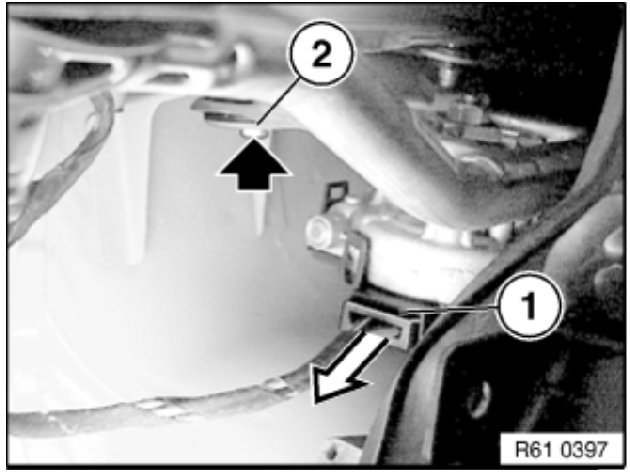

Unfasten Plug Connection (1) and disconnect.

Unscrew bolt (2).






Installation:

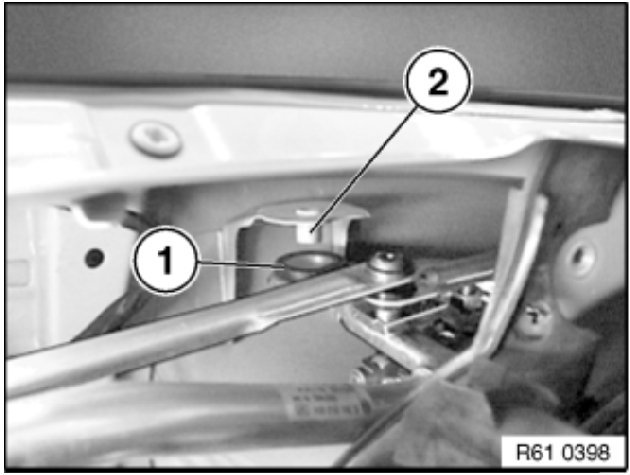

Fit Rubber Grommet (1) of wiper console on pin (2).
Tightening Torque 10 Nm

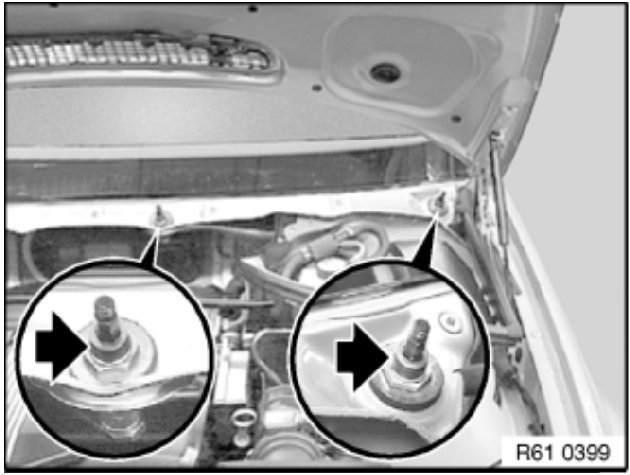

Release nuts and feed out complete wiper console through opening in heater bulkhead.

Installation:
Tightening torque 10 Nm
