Window Handle: Service and Repair

51 34 000 Removing And Installing/Replacing Window Crank, Rear Left Or Right

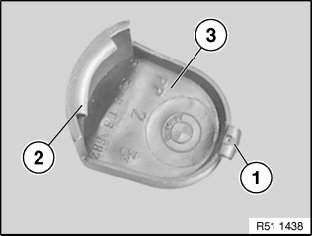

Remove plate (1).







Installation:
Guide (1) and catch (2) if finisher (3) must not be damaged.
If necessary, replace faulty finisher (3).

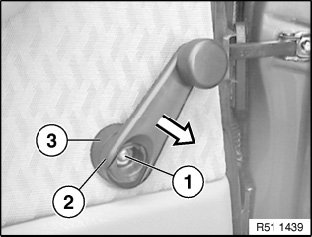

Unscrew bolt (1).
Remove window crank (2) and rosette (3).

Installation:
Fit window crank (2) in this position with door window glass closed.







Installation:

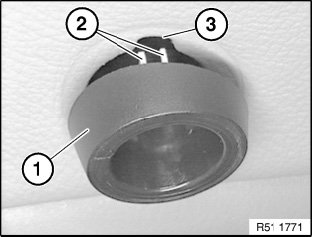

Insert rosette (1) with turning lock (2) in opening (3) of door trim panel.
