Replacing Rear Left or Right Hinged Window (Coupe)

51 36 016 Replacing Rear Left Or Right Hinged Window (Coupe)

Remove rear hinged window.







Detach retainer (1) from support (2).







Installation:

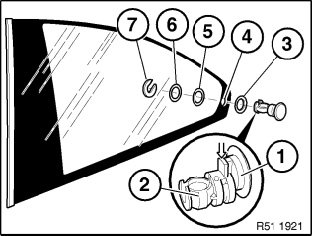

Slide knob (1) into support (2) then assemble the rest.
1. Knob
2. Support
3. Shim
4. Bore in hinged window
5. Washer
6. Washer
7. Retainer







Installation:

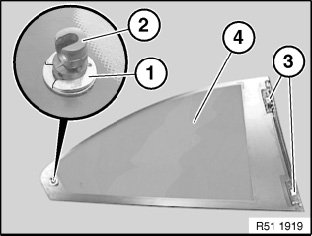

Retainer (1) must be mounted correctly.
Opening of support (2) must point towards rear.
Thread (3) on hinged window (4) must not be damaged.
Replace cover on side window (hinged window).
