Removing and Installing Rear Left or Right Hinged Window (Coupe)

51 36 015 Removing And Installing Rear Left Or Right Hinged Window (Coupe)

Unhook connecting rod on hinged window.
Remove panel for door pillar (B-pillar).

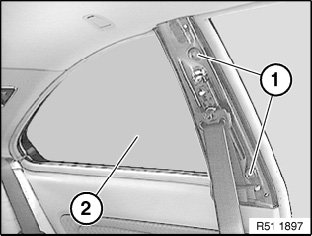

Lever out protective caps (1) and release screws underneath.
Remove hinged window (2).

Installation:
1AZ Vent window to body
M6 6.2 Nm







Installation:

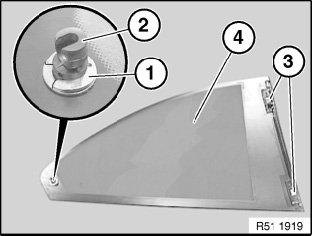

Retainer (1) must be correctly seated.
Opening of support (2) must point towards rear.
Thread (3) on hinged window (4) must not be damaged.

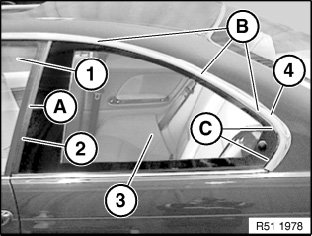

Ideal adjustment:
A Distance of strip (2) to edge of door window (1)
B Distance from hinged window edge (3) to water drain (4), top
C Distance from hinged window edge (3) to water drain (4), in corner

Distances:
A. up to 6 mm
B. 1 mm
C. up to 1.8 mm

NOTE:
- If distance (A) is not achieved, a new cover strip (2) must be fitted.
- If necessary, replace cover on hinged window.
