Removing and Installing/Replacing Cover (Anti-Trapping Protection) on Door Window Frame, Left or Right, Inside

51 32 160 Removing And Installing/Replacing Cover (Anti-trapping Protection) On Door Window Frame, Left Or Right, Inside

Remove front door trim panel.

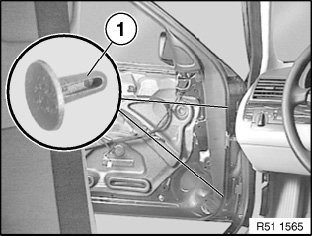

Unfasten clips (1).

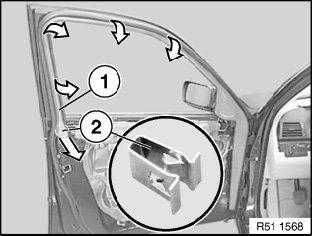

Lever out cover (1) towards inside,
feed out from door brake (2) and detach from retainer (3).

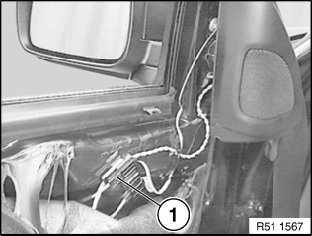

Disconnect plug connection (1) for anti-trapping protection.







Detach cover (1) from retainer (2) and remove rest.







Installation:

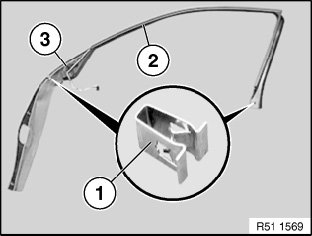

If necessary, remove retainers (1) from cover (2) and insert in front door.
If necessary, replace foam (3).
