Rear Door Window Motor: Service and Repair

51 37 000 Removing and Installing Complete Power Window Lifter from Rear Left and Right Sides (Sedan, Touring)

Note: Whenever battery power is interrupted to window motors, Initialize Windows

Release rear door window glass (do not remove).

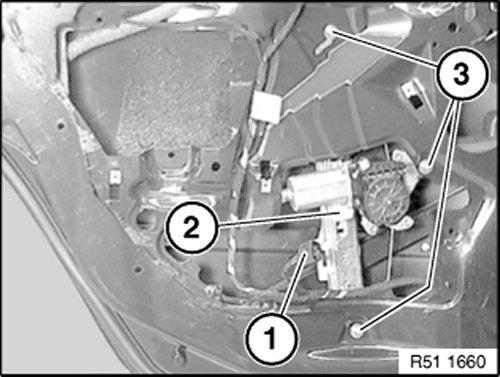

Plug connection (1) must be disconnected from window lifter (2).
Unscrew nuts (3).

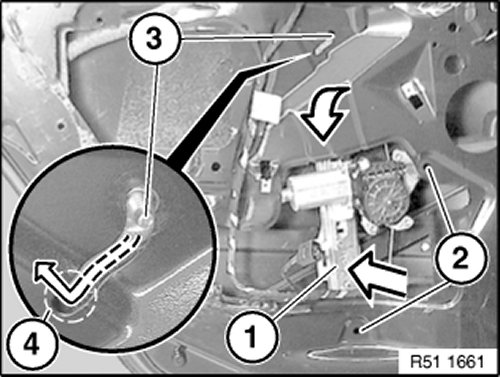

Lift out window lifter (1) with stay bolts (2).
Guide window lifter (1) with stay bolts (3) up to point (4) and remove.

Replacement only:

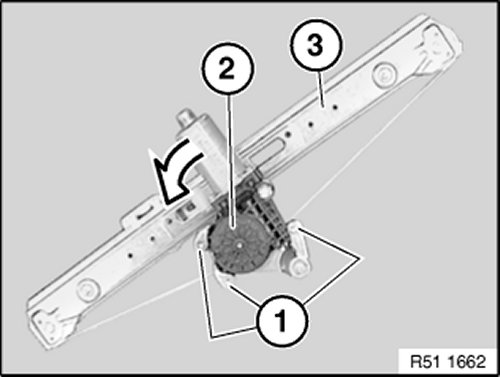

Release screws (1).
Turn flat motor (2)
and detach from window lifter (3).
