Shifter ASMT: Service and Repair

Removing and Installing/ Replacing Shifters for SMG Transmission (both)


Necessary Preliminary Tasks:
- Remove airbag unit Service and Repair

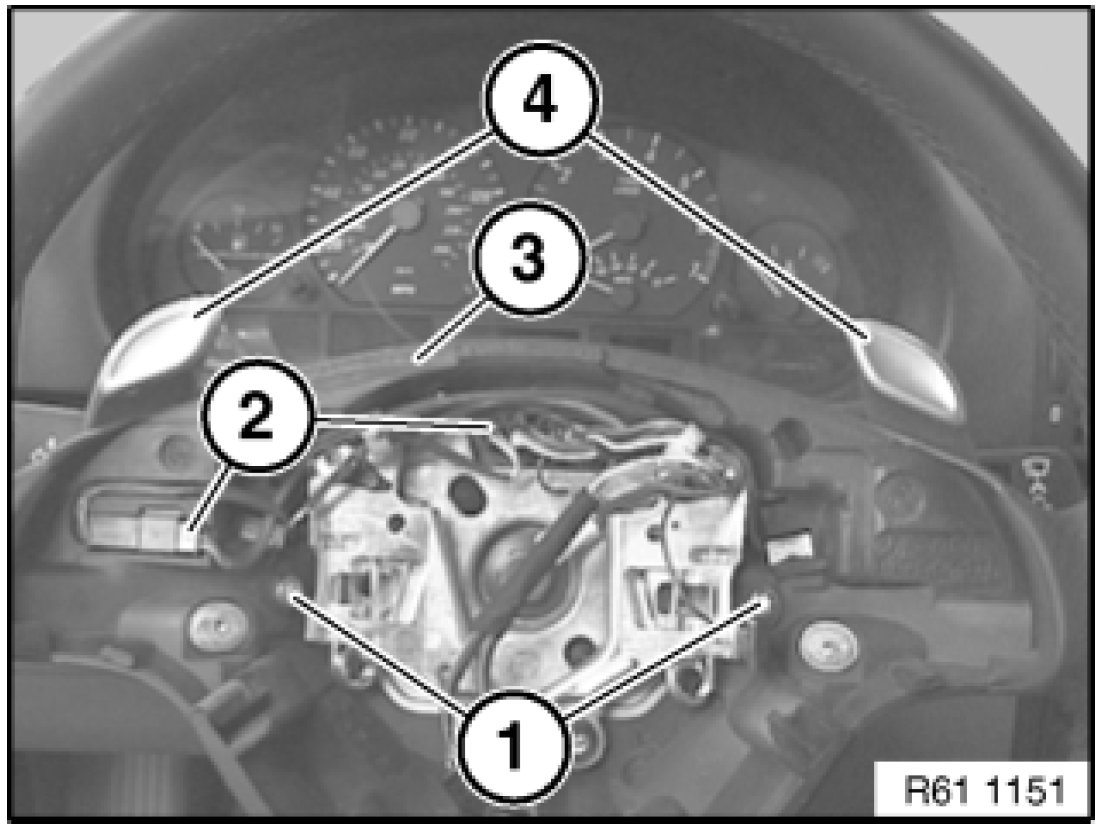

Disconnect plug connections (2).

Release screws (1).

Remove both shifters for SMG transmission (3) forwards from sports steering wheel (3).

Installation:
- Make sure electrical leads are correctly routed.





Make sure both turning locks (1) of each shifter for SMG transmission (2) are correctly seated in the respective mounts.
