Checking Front and Rear Wheel For Face and Radial Runout

Checking Front and Rear Wheel For Face and Radial Runout






Wheel bearings must be OK
Lift vehicle.

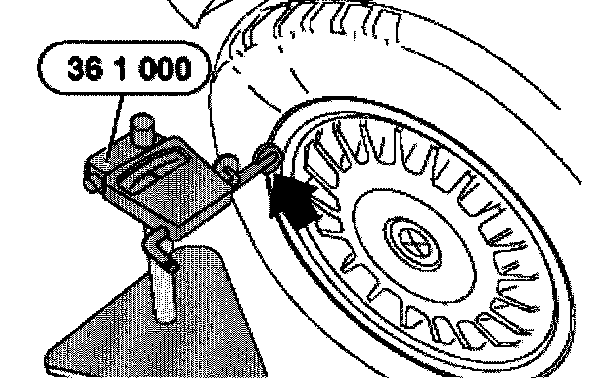

Check wheel for lateral runout with special tool 36 1 000 (measuring fixture).

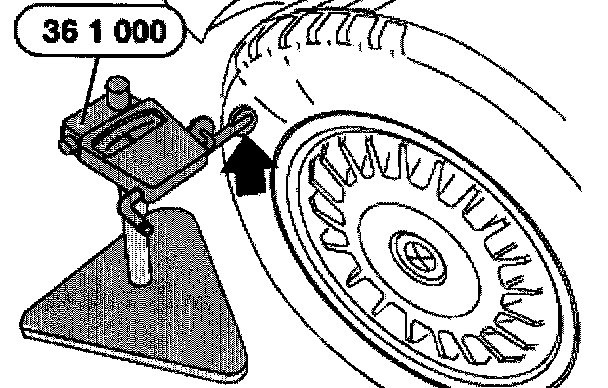

Check wheel for radial runout with special tool 36 1 000 (measuring fixture).

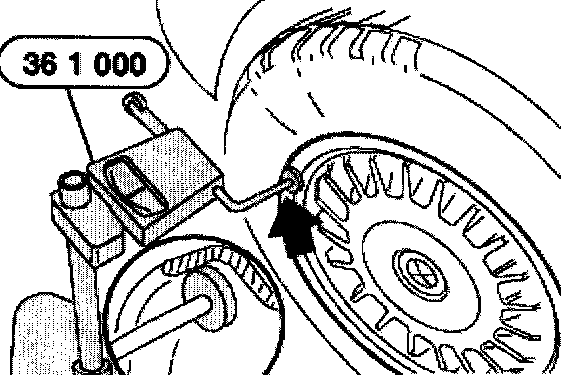

If applicable, remove balance weights. Check lateral runout of rim with special tool 36 1 000 (measuring fixture).

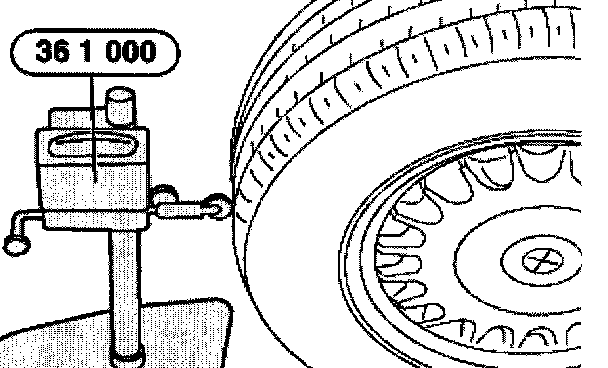

Check radial runout of rim with special tool 36 1 000 (measuring fixture).
