Replacing One Rubber Mount In the Upper Control Arm

Replacing One Rubber Mount In the Upper Control Arm
Control Arm Removed

Remove upper control arm, refer to 33 32 071.

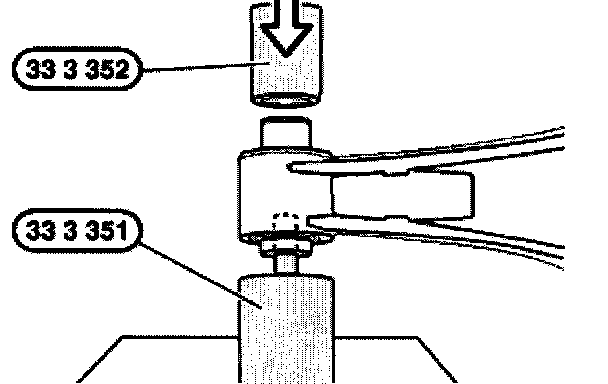

Press out rubber mount with special tool 33 3 351 / 352.

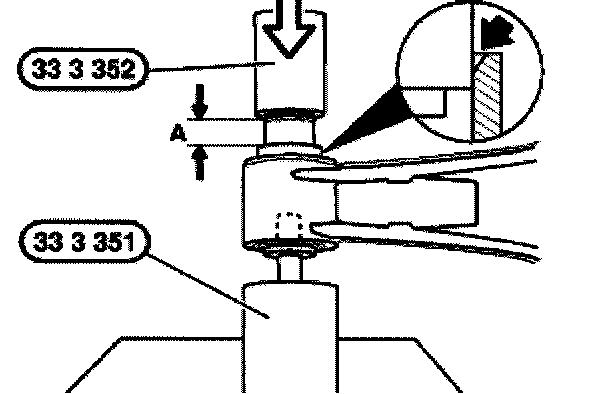

Place new rubber mount at chamfered end of control arm bore.

Longer collar (A = 17 mm) of rubber mount must point upwards here.

Press in rubber mount with special tool 33 3 351 / 352 so that it is flush.
