Replacing One Rubber Mount In Lower Control Arm


Replacing One Rubber Mount In Lower Control Arm
Control Arm Removed





Attach special tool 33 3 354 between both control arms.

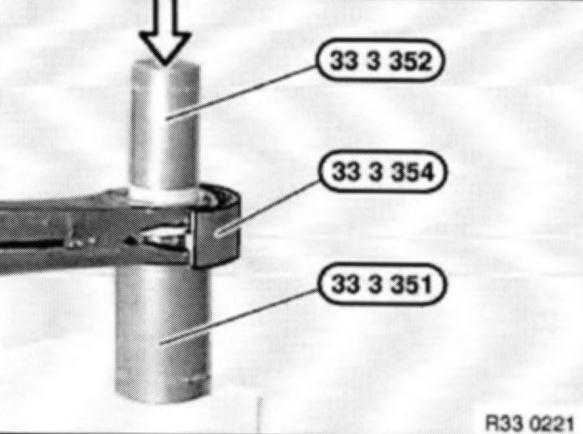

Press out rubber mount with special tool 33 3 351 / 352.

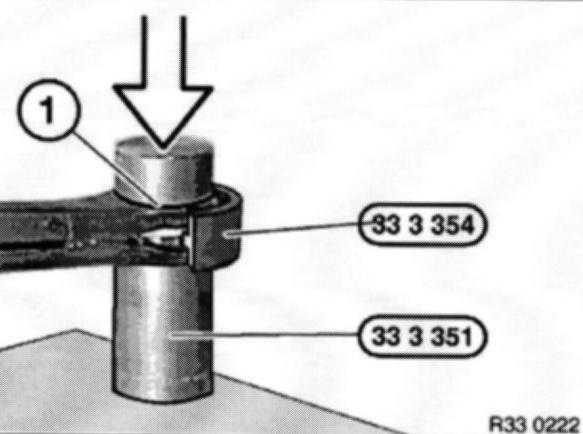

Press in new rubber mount (1) with special tool 33 3 351 / 353 / 354.
