Power Steering Pump: Tools and Equipment

Instructions For Using Special Tool 32 4 000

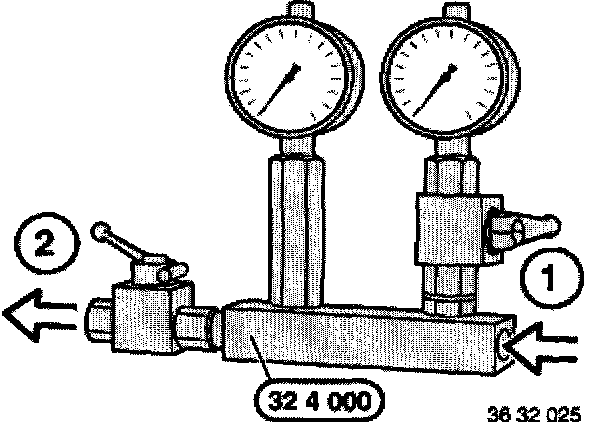

Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.
1=Connection, pump
2=Connection, steering gear

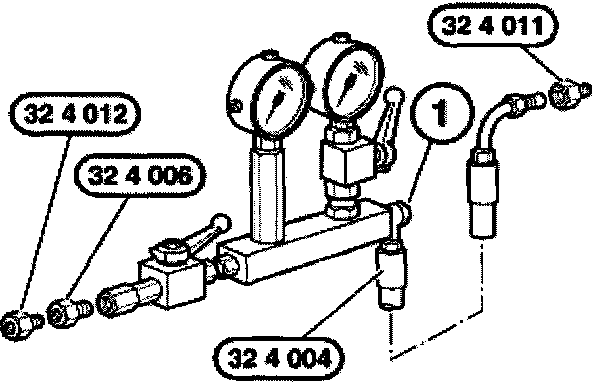

Pressure hose connection to pump with M14 x 1.5 banjo bolt:





Screw special tool 32 4 004 with M1 4 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.
Screw special tool 32 4 011 onto pump and connect special tool 32 4 004.
Screw special tools 32 4 006/32 4 012 onto special tool 32 4 000 and connect pressure hose with M14 x 1.5 banjo bolts and 2 sealing rings.

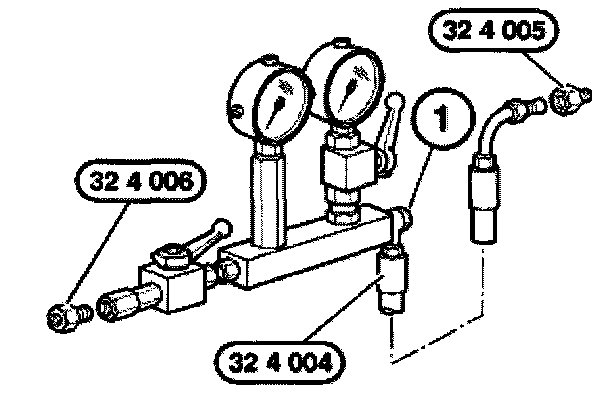

Pressure hose connection to pump with M16 x 1.5 banjo bolt:





Screw special tool 32 4 004 with M1 4 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.
Screw special tool 32 4 005 onto pump and connect special tool 32 4 004.
Screw special tool 32 4 006 onto special tool 32 4 000 and connect pressure hose with M16 x 1.5 banjo bolt and 2 sealing rings,

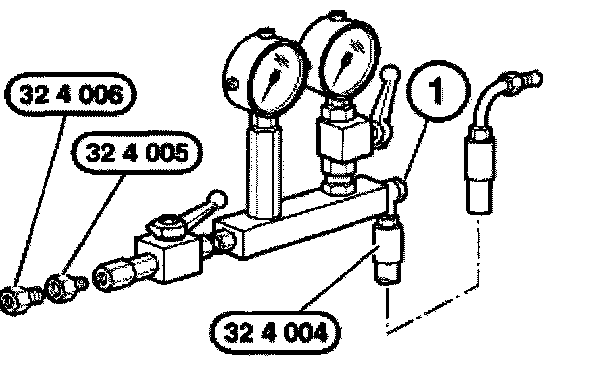

Pressure hose connection to pump with M16 x 1.5 union screw:





Screw special tool 32 4 004 with M1 4 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.
Connect special tool 32 4 004 to pump.
Screw special tools 32 4 006/32 4 005 onto special tool 32 4 000 and connect pressure hose.
