Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> 11 11 Engine Block >> 3AZ - 5AZ

3AZ - 5AZ

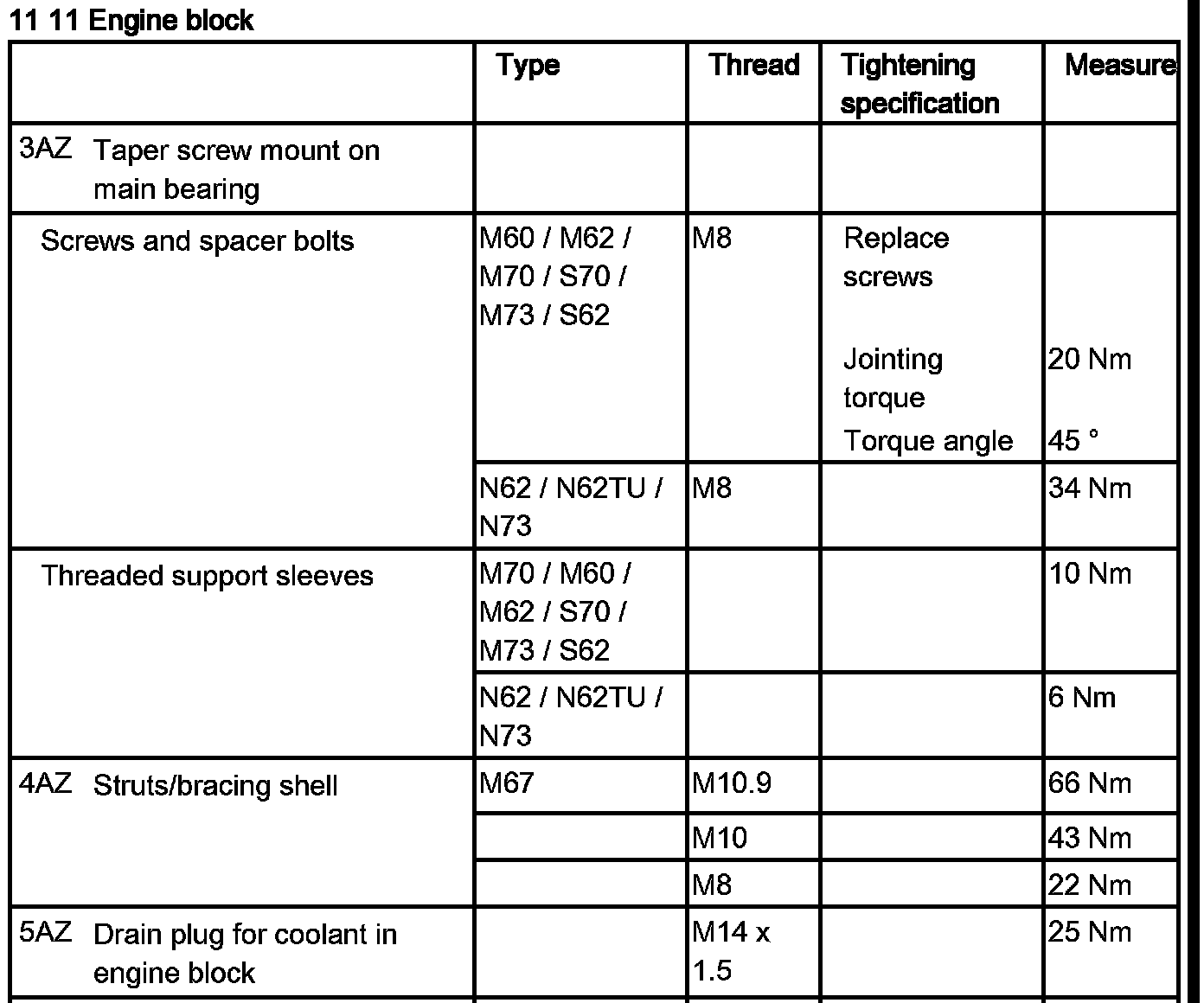

11 11 Engine Block

3AZ - 5AZ:
