Replacing Rear ABS Pulse Generator

Note: Follow General Instructions, remove wheel, if necessary, remove tank trim,

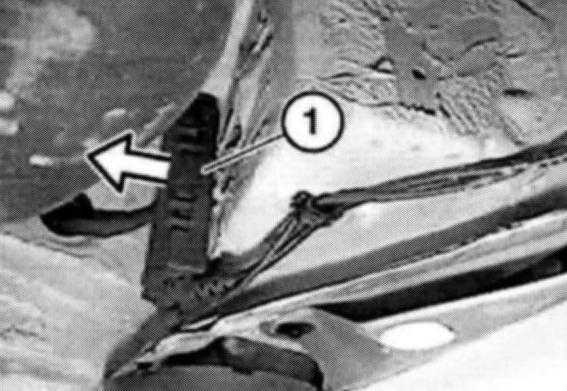

Open plug housing (1).
Pull plug connection for ABS pulse generator out of fixture and disconnect.

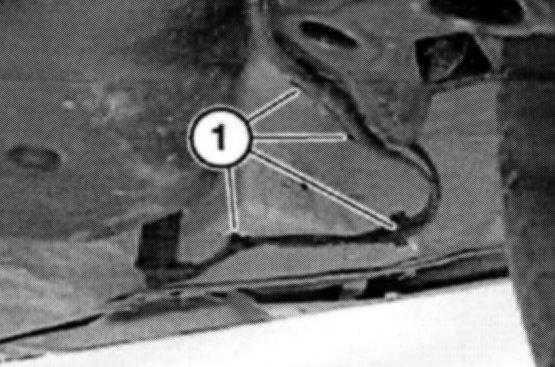

Open cable fasteners (1). Pull cable out of fasteners on rear swinging fork.

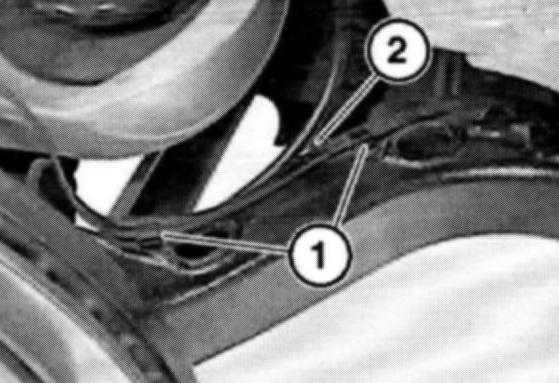

Open cable fasteners (1). Pull cable (2) out of fasteners on rear swinging fork.

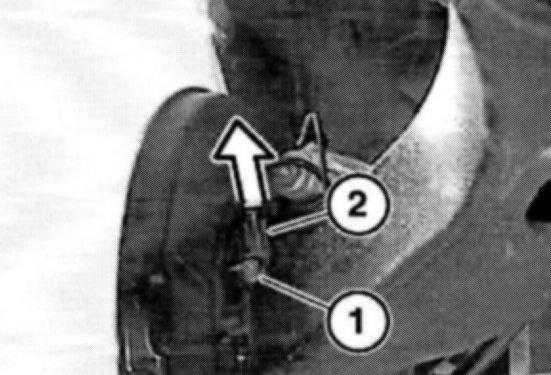

Release hexagon socket screw (1). Withdraw ABS pulse generator (2) from bore hole.
Installation: Clean bore hole for pulse generator and grease with lubricating grease.
Pulse generator to swivel bearing / wheel carrier 8 Nm
