Replacing All Rear Seat Belts (Complete With Inertia Reel Belt)

Removing And Installing Or Replacing All Rear Seat Belts (Compl., With Inertia Reel Belt) (Convertible)

Remove and install backrest.
Remove and install rear head restraints.

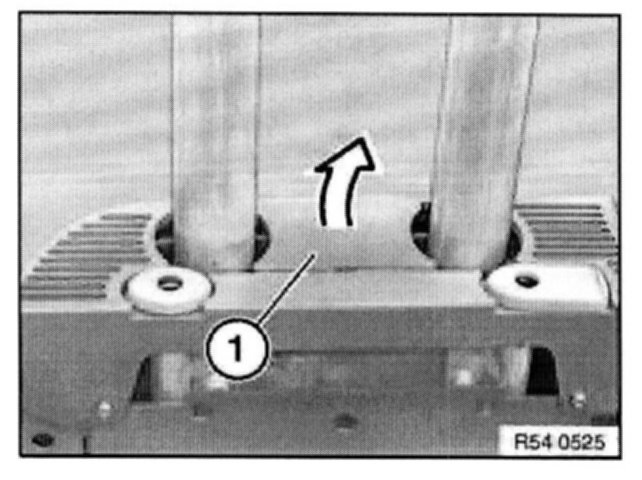

Unclip complete left and right covers (1).

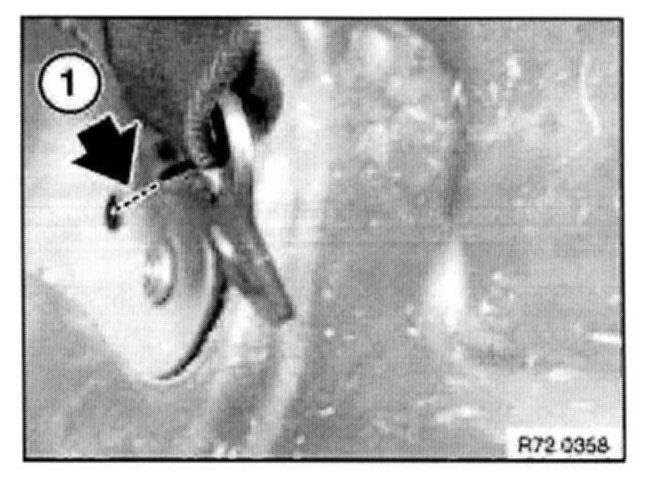

Unfasten left and right screw.







Installation Note:
Coding of end fitting (lug) must run into hole in body.

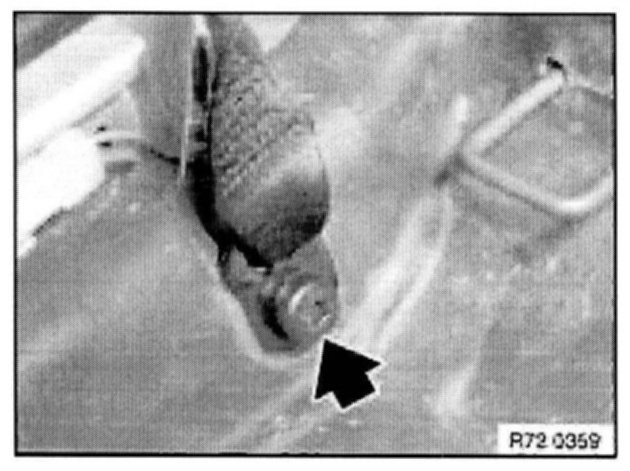

Unfasten left and right screw.

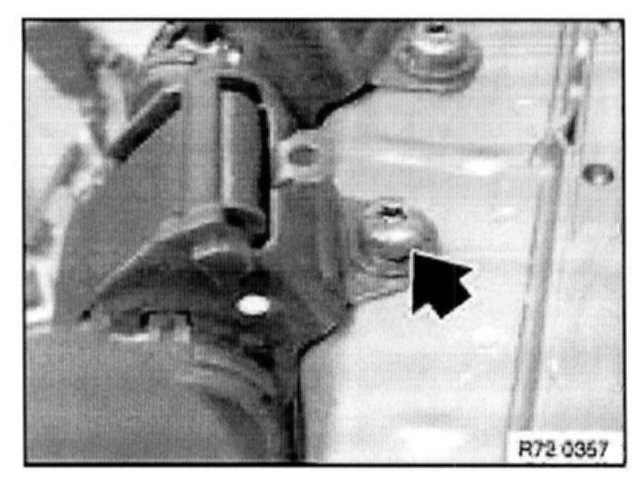

Remove left and right inertia reel unit.

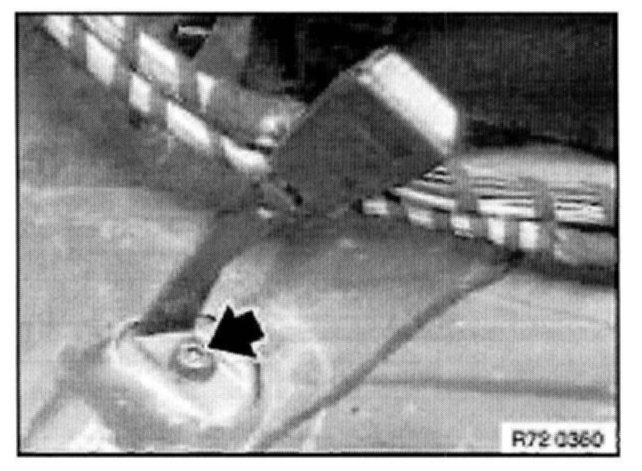

Release screw on left and right and remove belt buckle on left and right.

Installation Note:
Belt buckle is secured by both beads.
