Seat Belt Tensioner: Testing and Inspection

Belt Catch Tensioner (Information On Electrical System)


NOTE: The mechanical system is described separately.

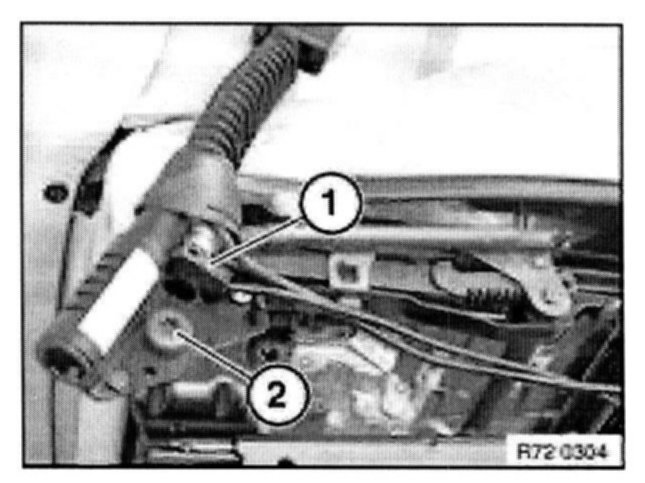

Older systems:
Disconnect plug connection (1) on belt tensioner.
2 Screw for securing belt catch tensioner

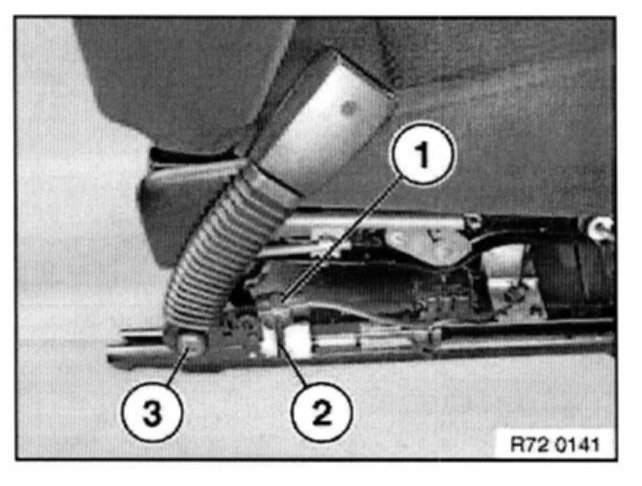

New systems:
Open cable tie (2).
If necessary, remove cover cap.
Disconnect plug connection (1) on belt tensioner.
3 Screw for securing belt catch tensioner


CAUTION: A belt catch tensioner which has been triggered must always be replaced.
