Replacing Rear Left or Right Side Door Airbag

Removing And Installing/Replacing Rear Left Or Right Side Airbag

CAUTION: Note safety regulations for handling airbag modules and pyrotechnical seat belt tensioners.
Incorrect handling can activate airbag and cause injury.

Remove insert on rear left or right side trim panel.

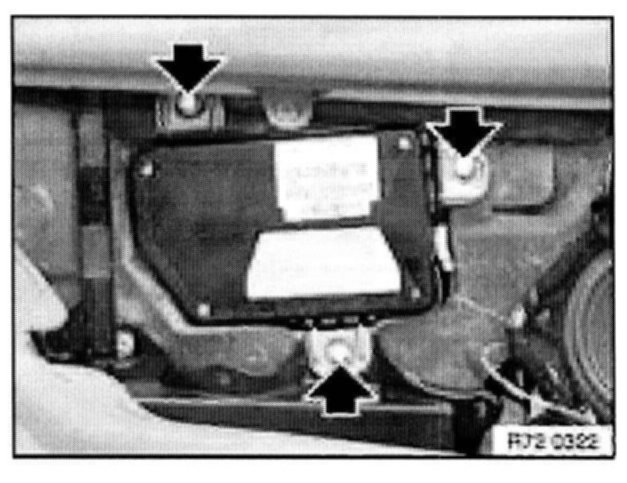

- Release screws and remove airbag module.

CAUTION: Always replace micro-encapsulated screws!
Tightening torque: 8.5 Nm

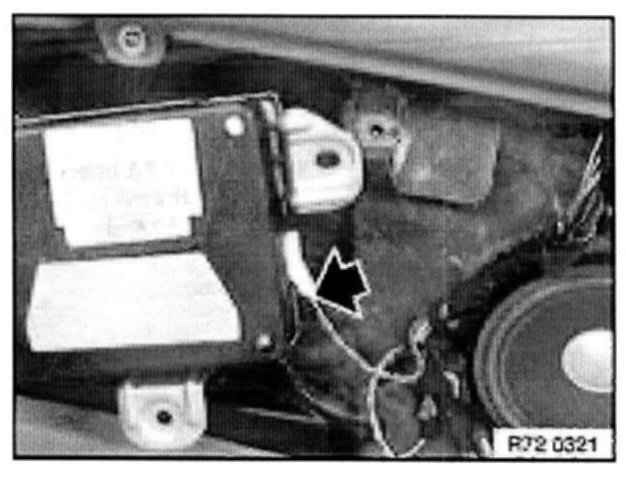

- Detach plug from airbag module and remove airbag module.
