Airbag Unit Before 01/2002

Replacing Airbag Unit (Inserted Airbag Unit)


Warning!
Conform with safety precautions!
Incorrect handling can activate airbag and cause injury.
Disconnect battery negative pole and cover negative pole and terminal.

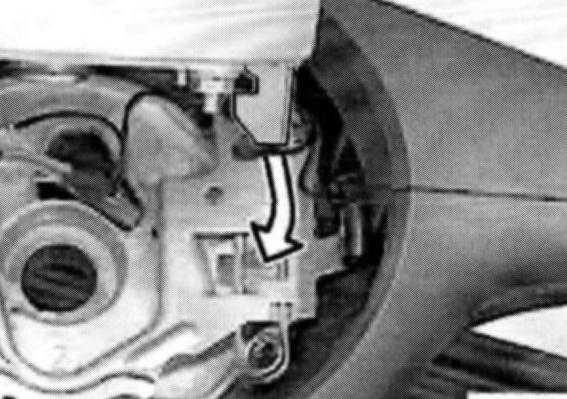

Insert a screwdriver through opening on rear side of steering wheel and press down on lock. If a springy resistance can be felt, press down lock as far as it will go and pull airbag unit (1) away from steering wheel.
Repeat procedure on opposite side.
For purposes of clarity, the procedure is shown in the next picture with the airbag unit already removed.

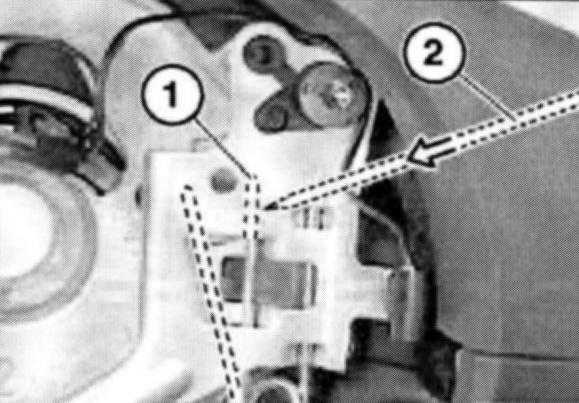

Using screwdriver (2), press down on lock (1).

Installation:





Insert airbag unit with hooks into locks and press into steering wheel.





Unlock airbag plug connection:
Lever out lock (1) with a screwdriver.

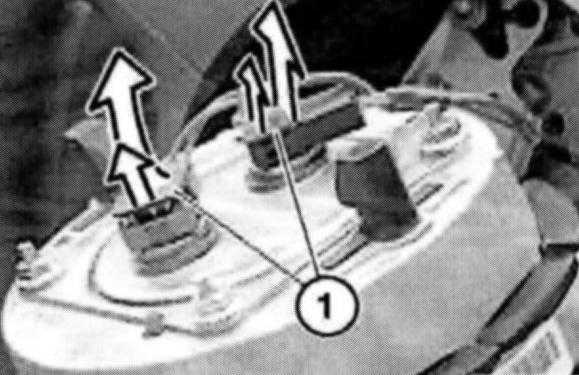

Open locks (1) on both plugs and disconnect plug connections.
Remove airbag unit.

Warning!
Airbag unit may only be put down with the impact pad facing upwards (luggage compartment).
