Replacing Airbag Control Unit

Removing And Installing Airbag Control Unit

WARNING:
Note airbag safety instructions!
Incorrect handling can activate airbag and cause injury.
Disconnect battery negative lead from body and cover.


Remove oddments tray.

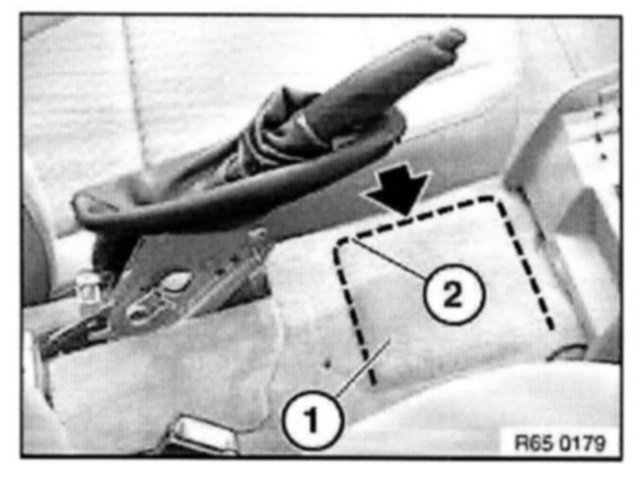

Cut carpet (1) along premarked line and fold back.

Installation Note: Secure carpet (1) to position (2) using cable strap.





Release nuts (2) and raise airbag control unit.

Installation:
Before installing airbag control unit, make sure grounding cable is resting on stud bolt (1).
Observe tightening torque: 8.8 Nm




Unfasten plug connection and disconnect.
Lift out airbag control unit.
