Replacing Front Receiving Antenna For RDC

Replacing Front Receiving Antenna For RDC


Front left





Remove panel (1).

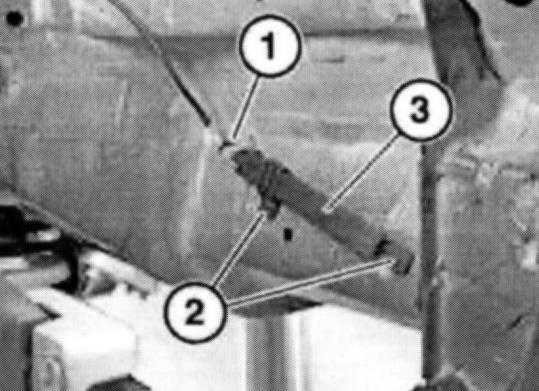

Unfasten plug connection (1) and disconnect.
Release screws (2) and remove receiving antenna (3).

Front right





Release panel (1) and carefully pull towards rear.
Unfasten plug connection (2) and disconnect.
If necessary, disconnect plug connection on outside temperature sensor.





Release screws (1) and remove receiving antenna (2) from panel (3).
