Fuel Pump Relay: Service and Repair

Replacing Fuel Pump Relay

Turn off ignition.
Remove glovebox on right.

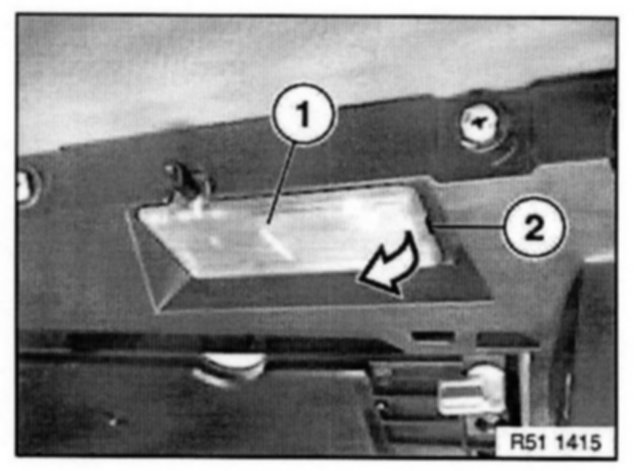

Unclip glovebox light (1) in opening (2).
Disconnect plug connection of glovebox light and remove light.

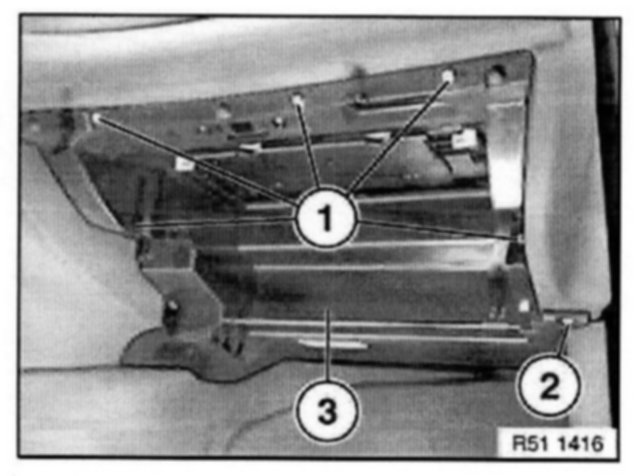

Release screws (1) and pin (2).
Remove insert (3) downwards.

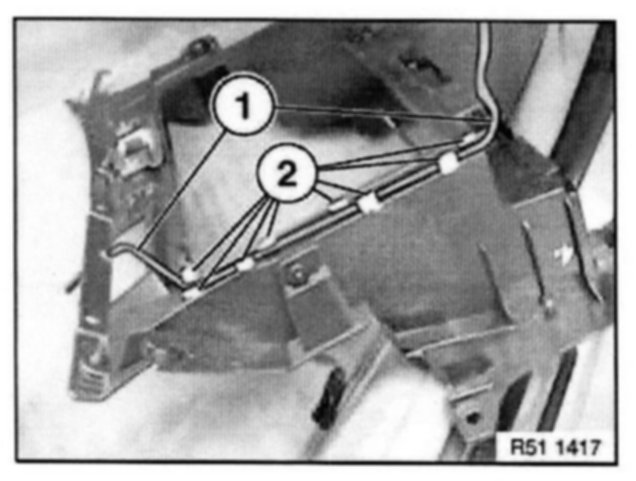

Feed out wire (1) for glovebox light from guides (2).

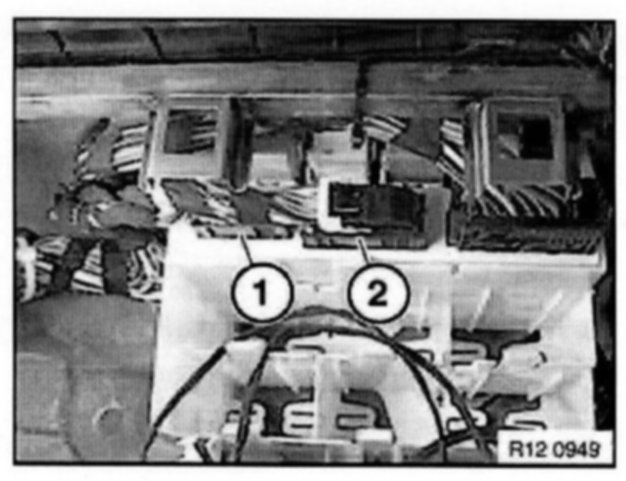

Disconnect plug connections (1 and 2) on general module.

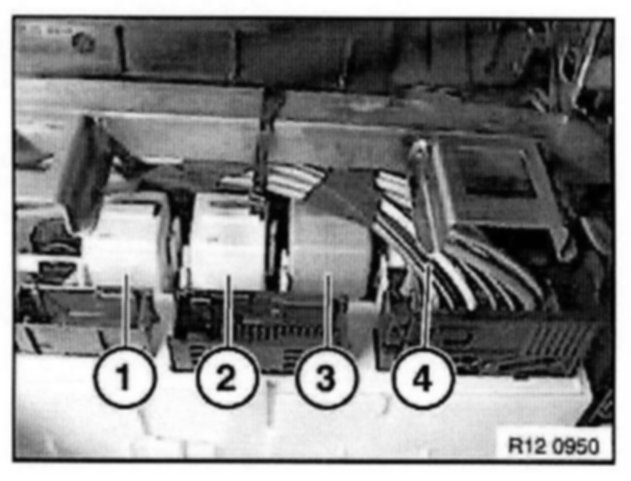

Pull fuel pump relay (1) out of pin base.


NOTE:
Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
