Intake Air Duct: Service and Repair

Replacing Intake Hose (S54)

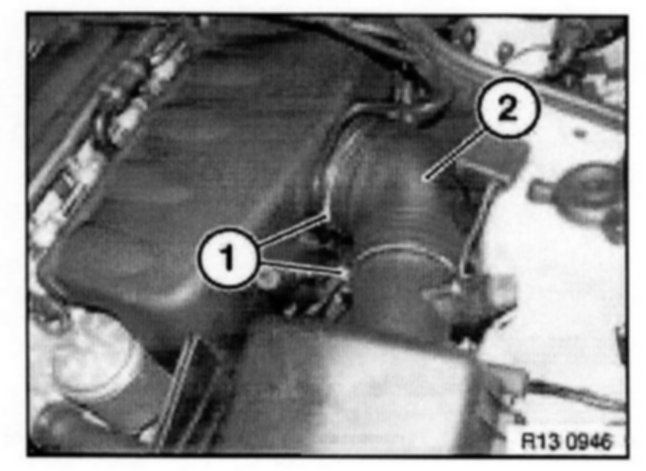

Release hose clamps (1).
Detach intake hose (2) first from intake filter housing and then from intake air manifold.

Installation:
Check sealing rings for damage, replace if necessary.
Check that suction pipe is correctly seated.
