Fuel Pressure Regulator: Service and Repair

Replacing Fuel Pressure Regulator (S54)

Turn off ignition.

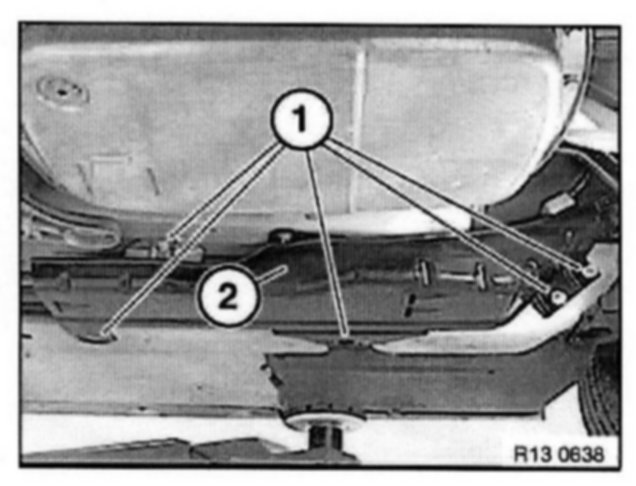

Release screws (1).
Remove cover (2).







Installation Note: Ensure seal (1) is in correct installation position.

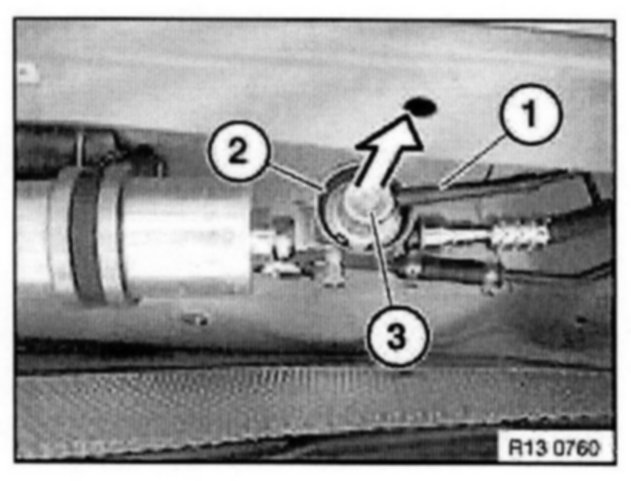

Detach vacuum hose (1).
Remove snap ring (2).

Recycling:
Catch and dispose of escaping fuel.

Pull out fuel pressure regulator (3).

Installation Note: Note installation position of fuel pressure regulator (3).







Installation:

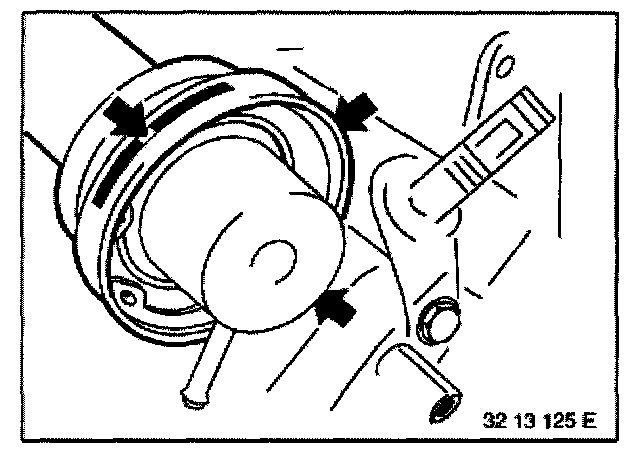

Snap lugs of snap ring into place in openings on fuel pressure regulator housing.

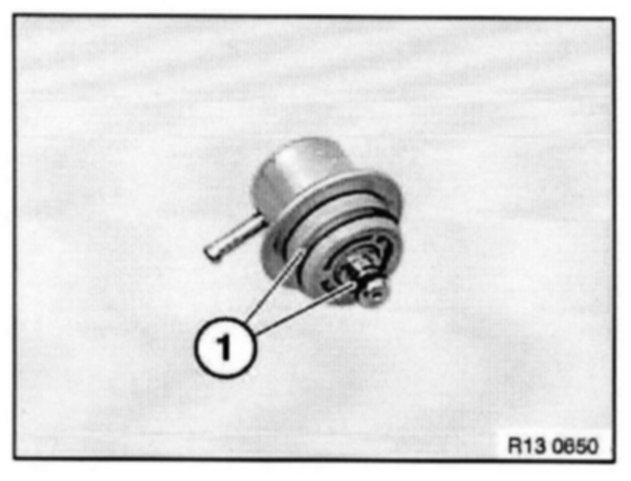

Apply a thin coat of anti-friction rubber coating (e.g. petroleum jelly) to O-rings (1).
