Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle Speed/Throttle Actuator - Electronic >> Locations

Idle Speed/Throttle Actuator - Electronic: Locations

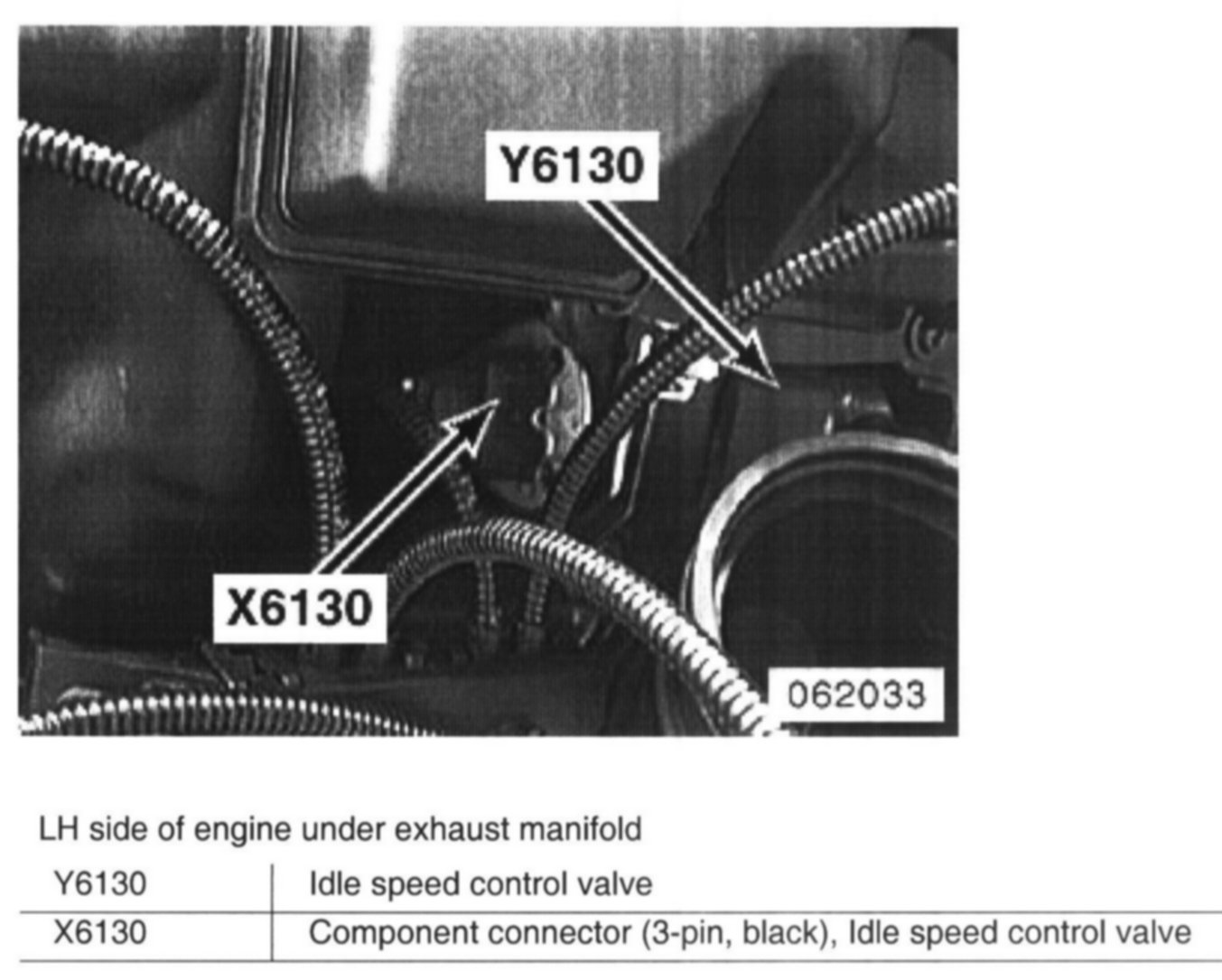

LH Side Of Engine Under Exhaust Manifold (Part 2 Of 2):
