64 11 220 Removing and Installing/Replacing Resistor for Heater Blower (without A/C)

64 11 220 Removing And Installing/Replacing Resistor For Heater Blower

Remove heater bulkhead. Service and Repair







Release screws and lever out cover for blower impeller

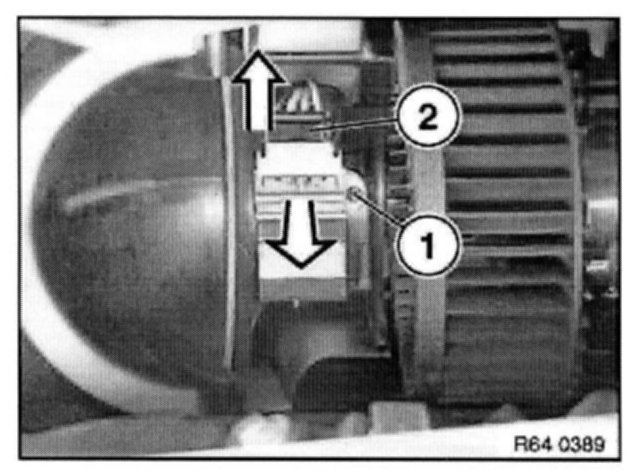

Release screw (1), disconnect plug connection (2) and lever out blower resistor.

Installation Note: First install resistor. Then insert plug connection.
