Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Transmission Control >> Transmission Management SMG (SMG Sequential M Transmission) >> Hydraulic Unit >> Connecting Frequency

Connecting Frequency

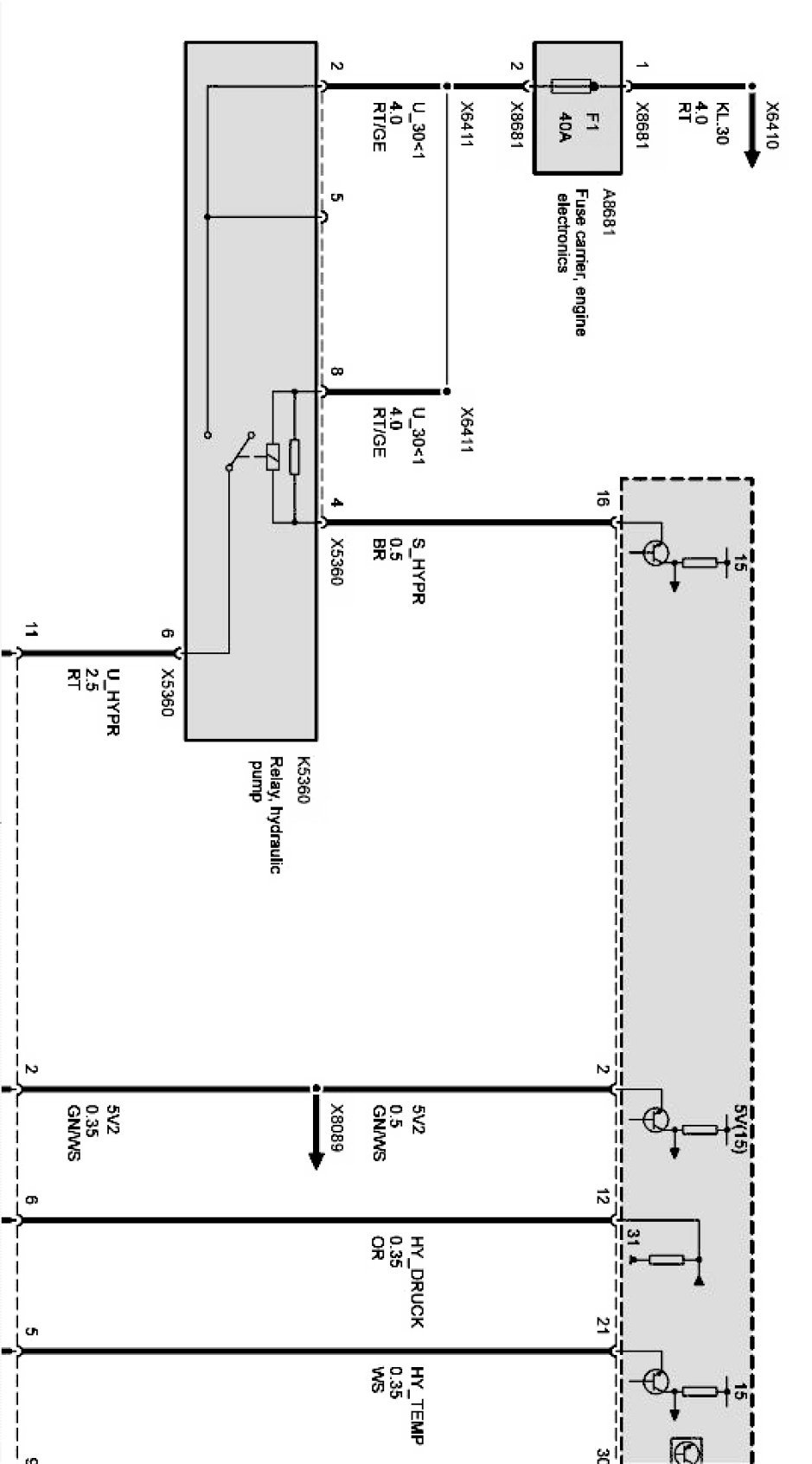

Hydraulic Unit SMG Part 1:

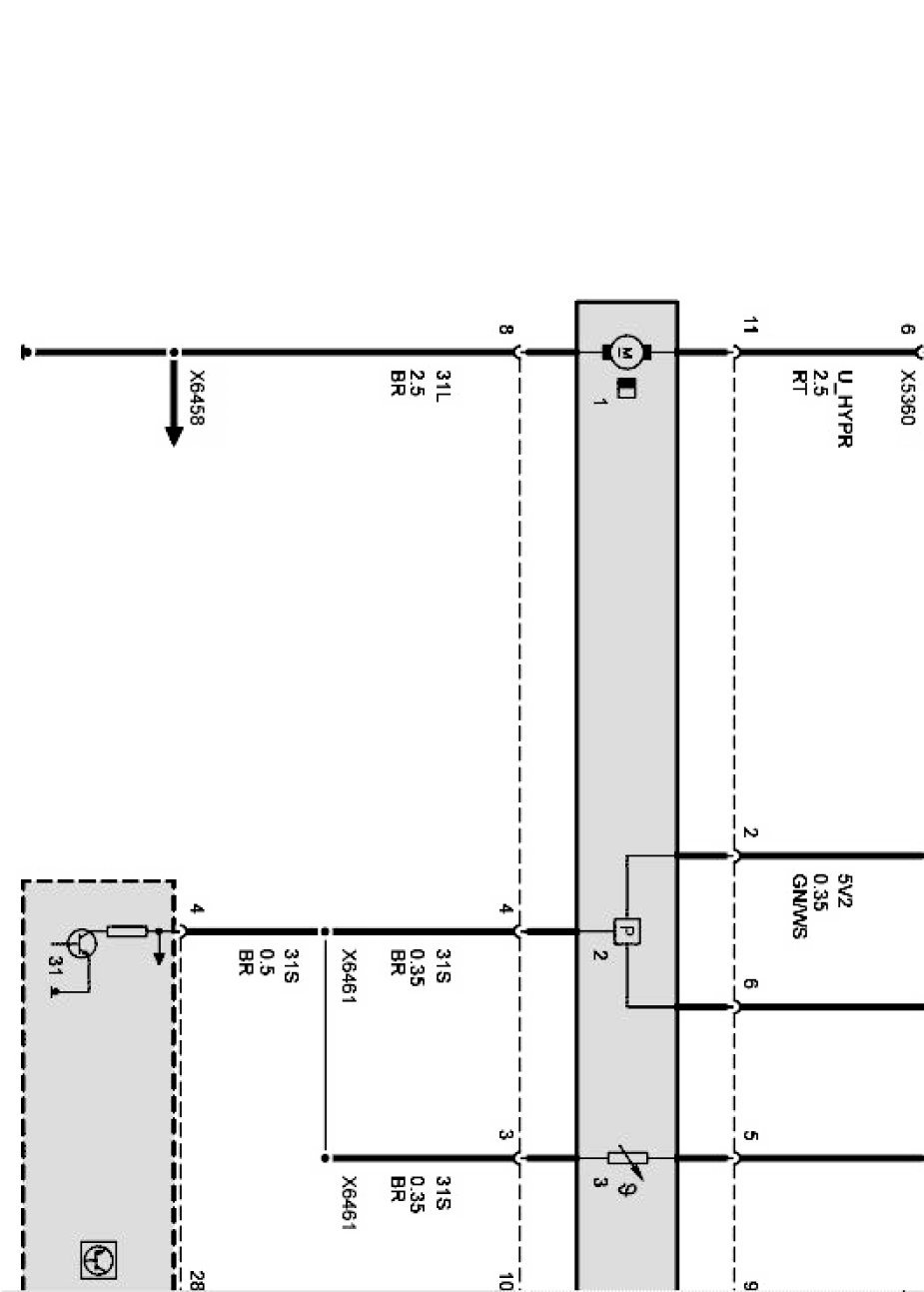

Hydraulic Unit SMG Part 2:

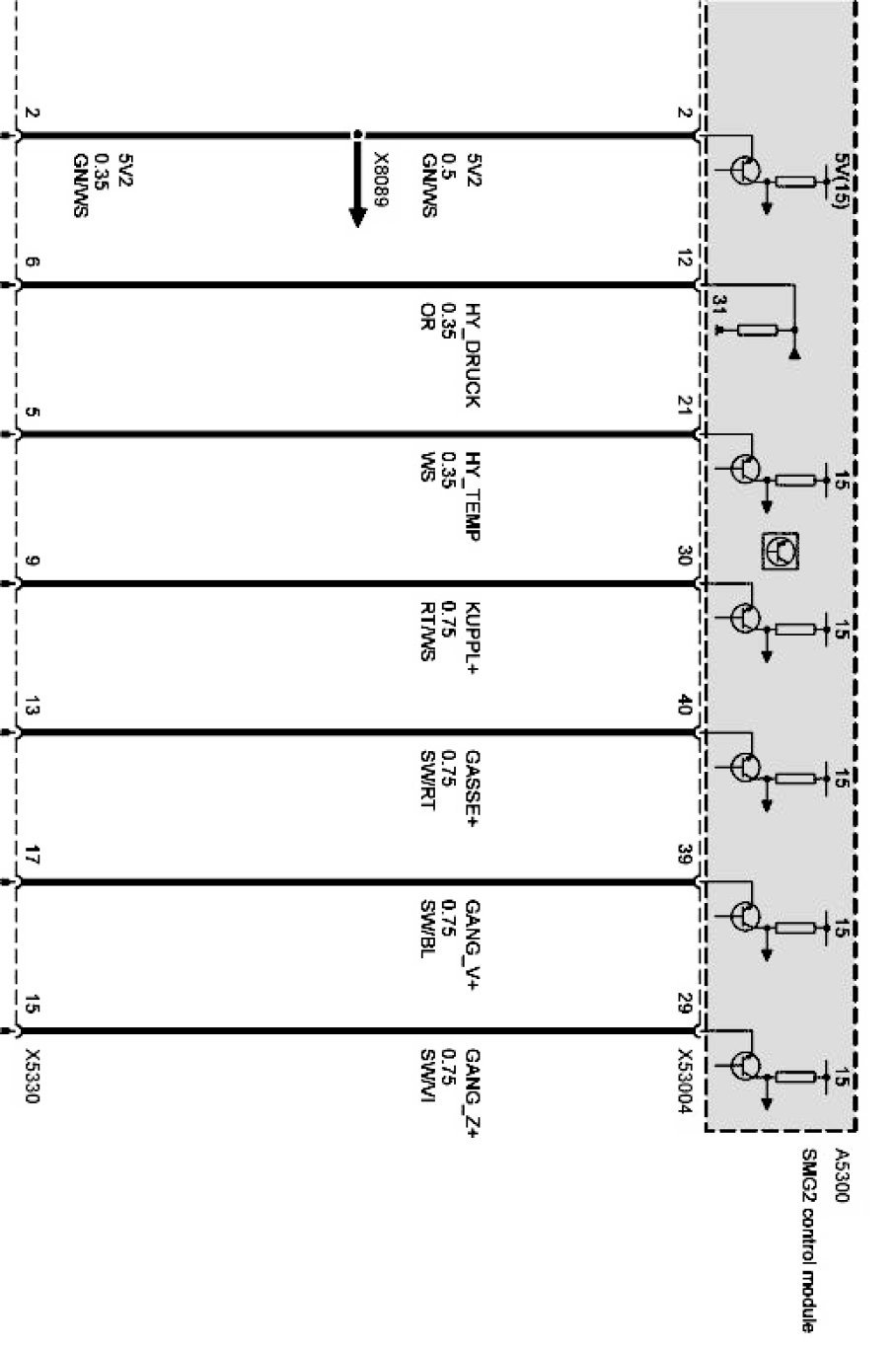

Hydraulic Unit SMG Part 3:

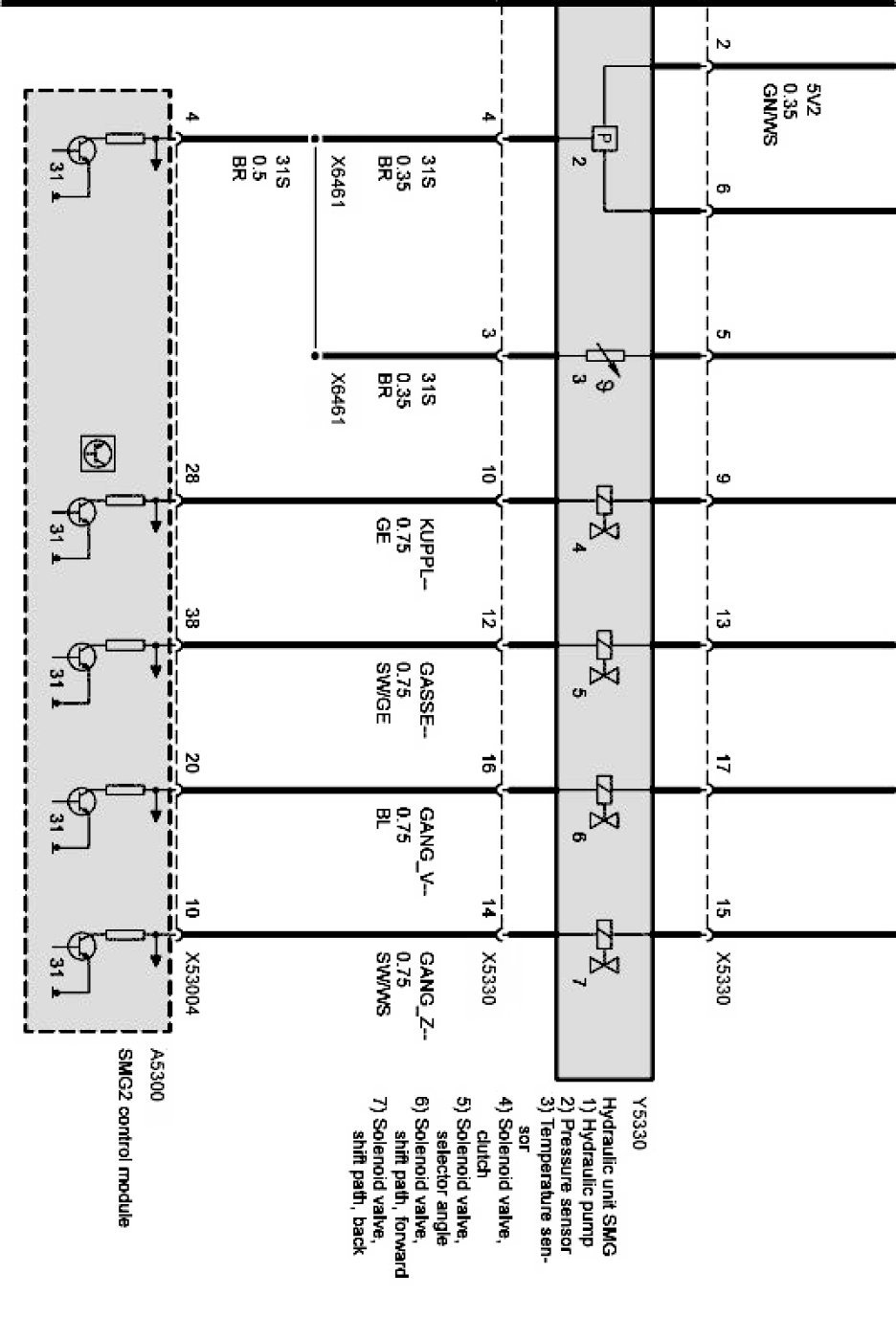

Hydraulic Unit SMG Part 4:
