Transmission Control (As of 09/99 Without DME Digital Motor Electronics MS43)

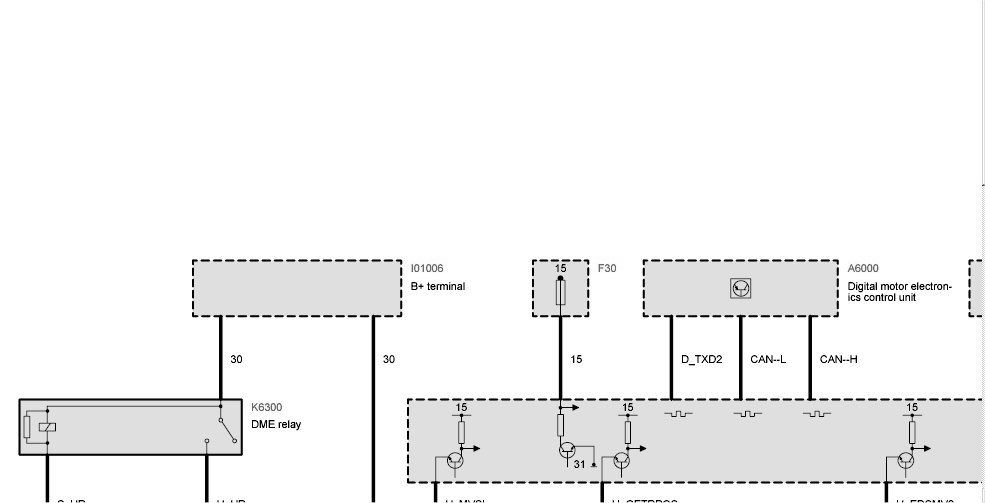

Transmission Control Part 1:

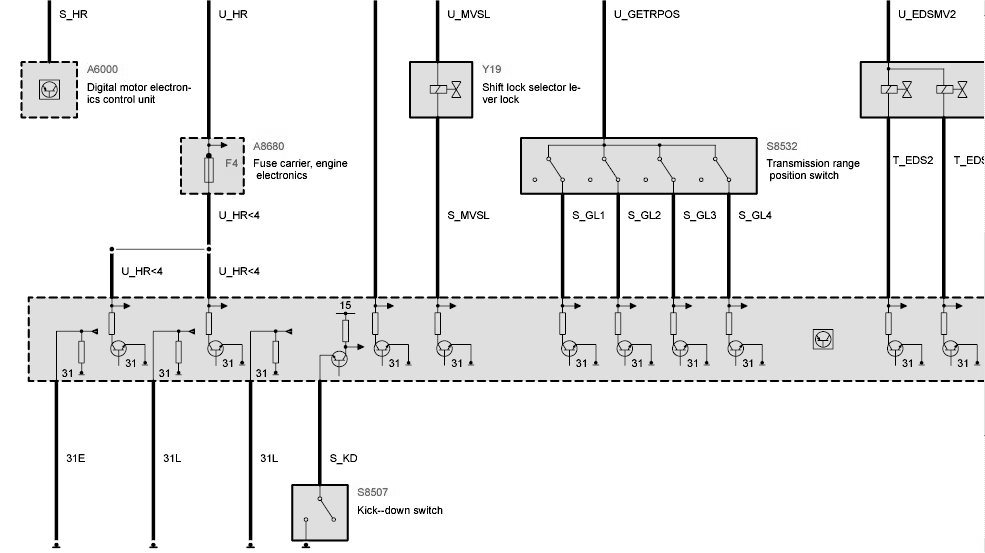

Transmission Control Part 2:

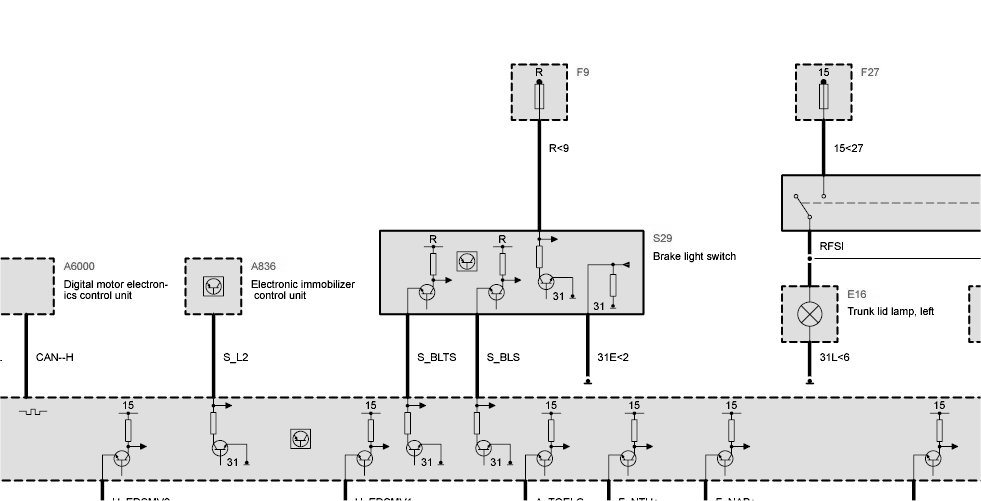

Transmission Control Part 3:

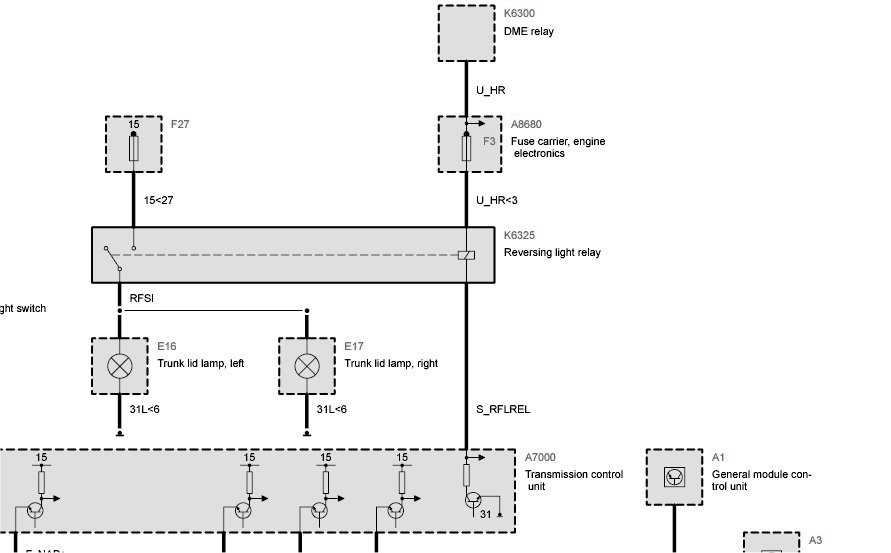

Transmission Control Part 4:



Transmission Control Part 5:



Transmission Control Part 6:
