M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Chassis
>>
Wheel Slip Control System
>>
Steering Angle Sensor (LWS Steering Angle Sensor)
>>
Steering Angle Sensor (As of 09/01 With Dynamic Stability Control MK60)
Steering Angle Sensor (As of 09/01 With Dynamic Stability Control MK60)

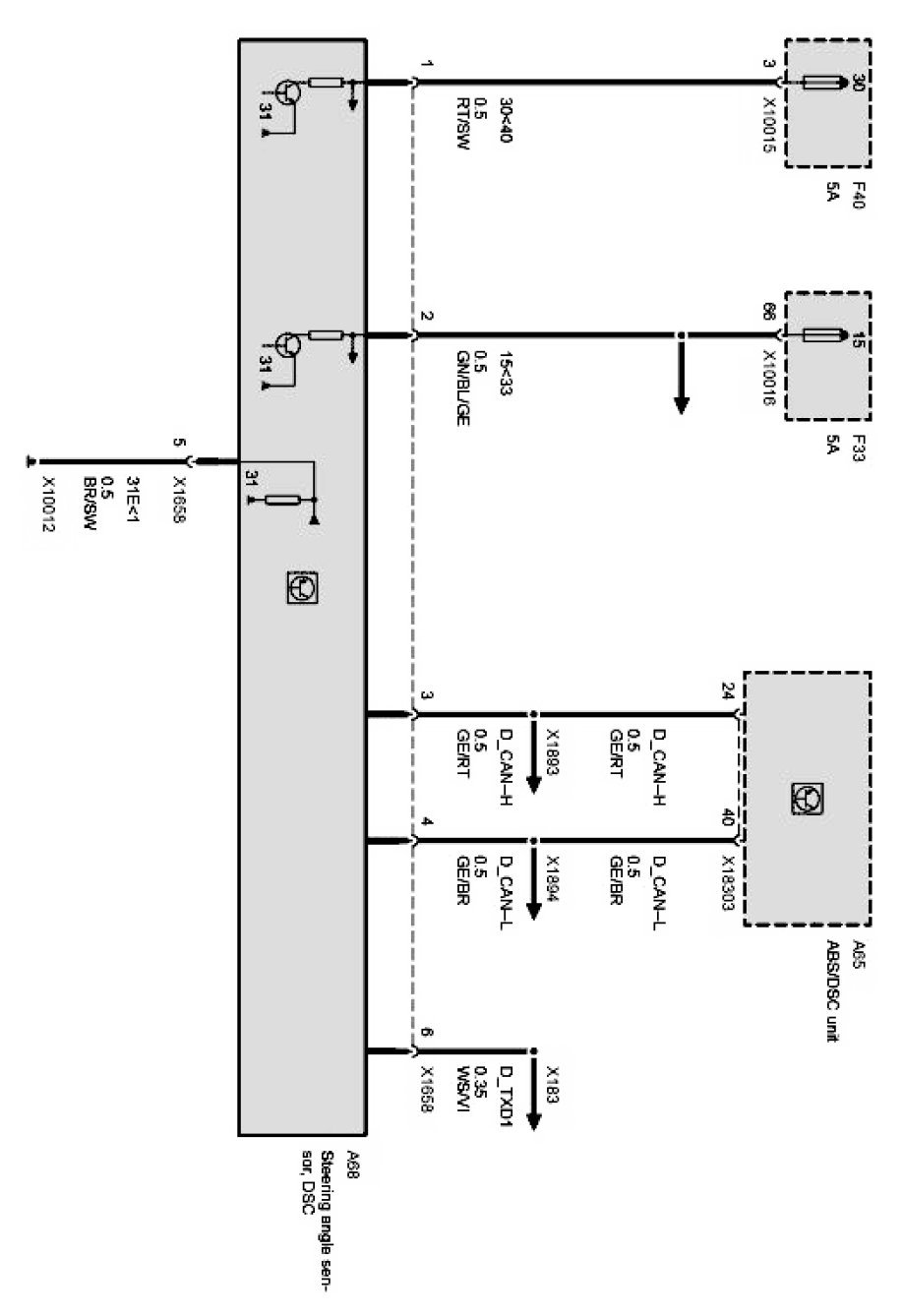

Steering-angle sensor:
