Dynamic Stability Control (As of 09/99)

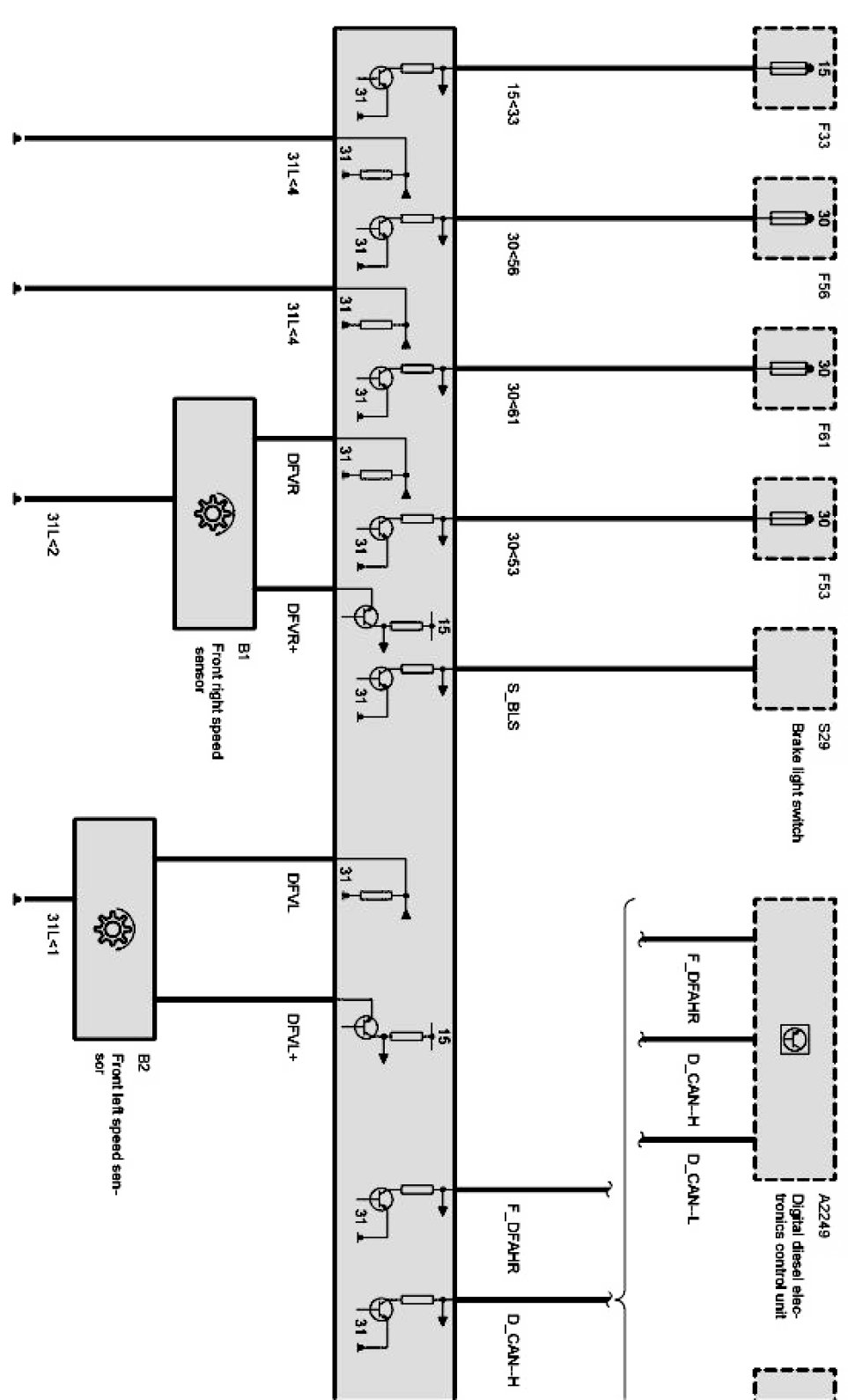

Dynamic Stability Control Part 1:

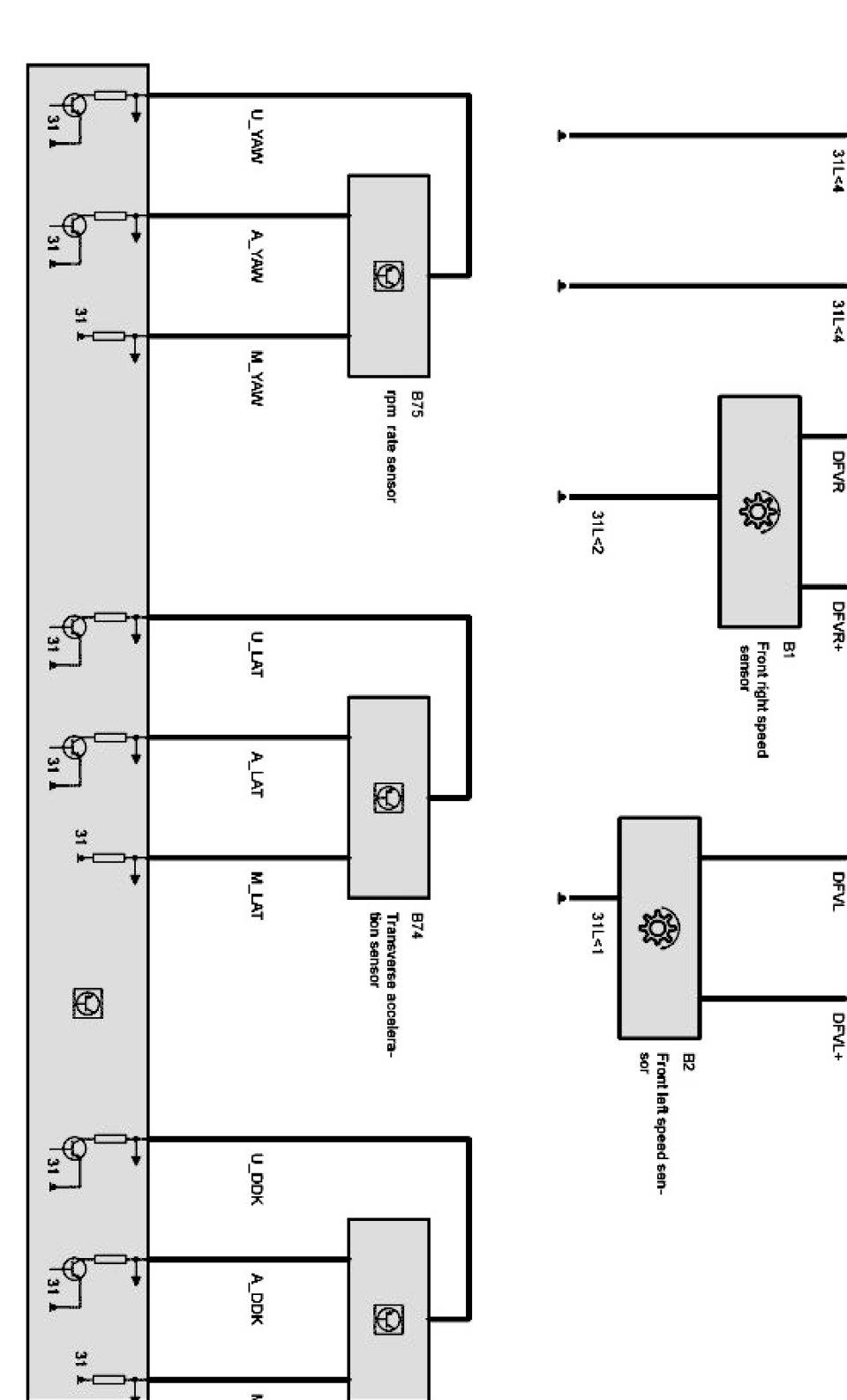

Dynamic Stability Control Part 2:

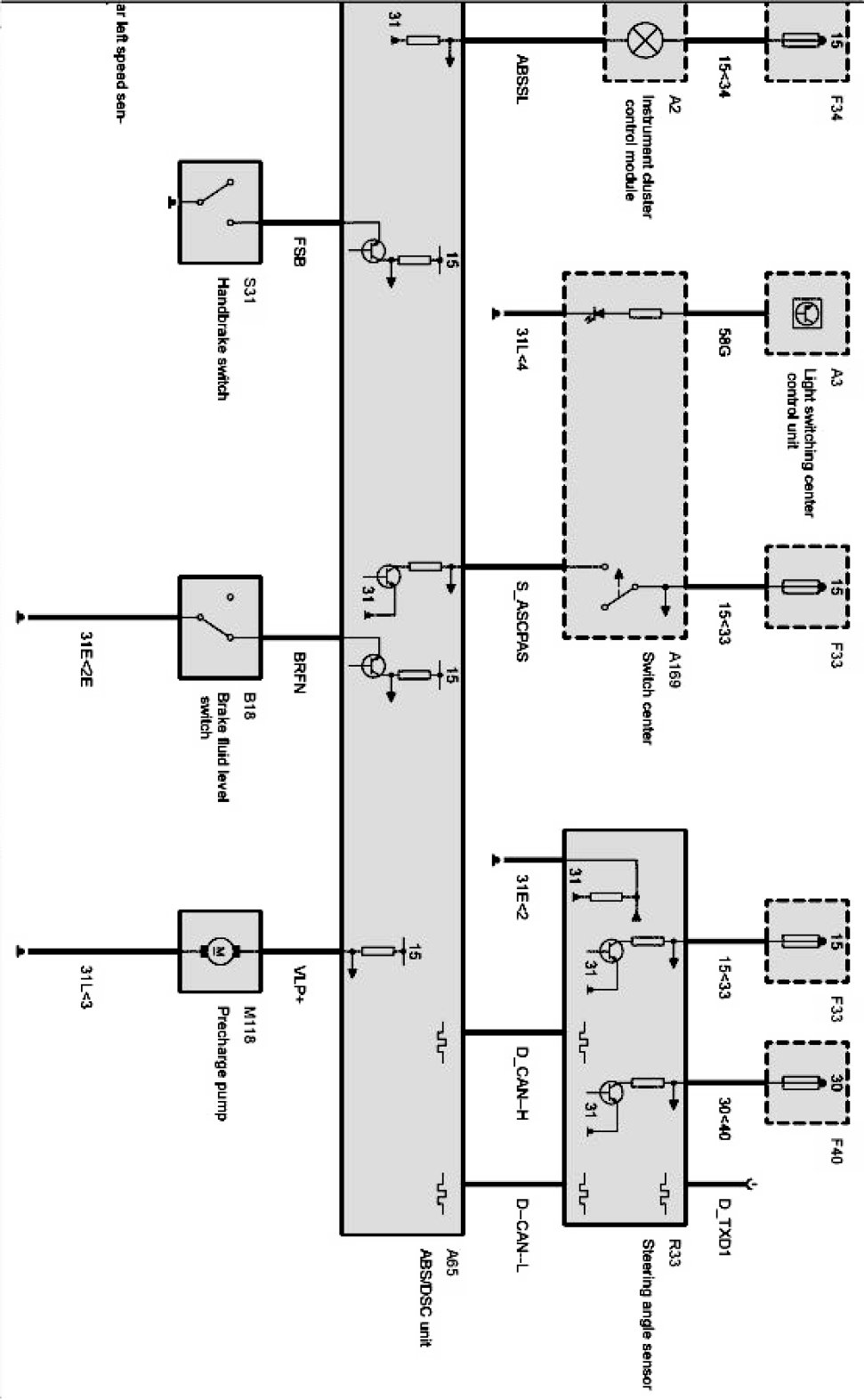

Dynamic Stability Control Part 3:

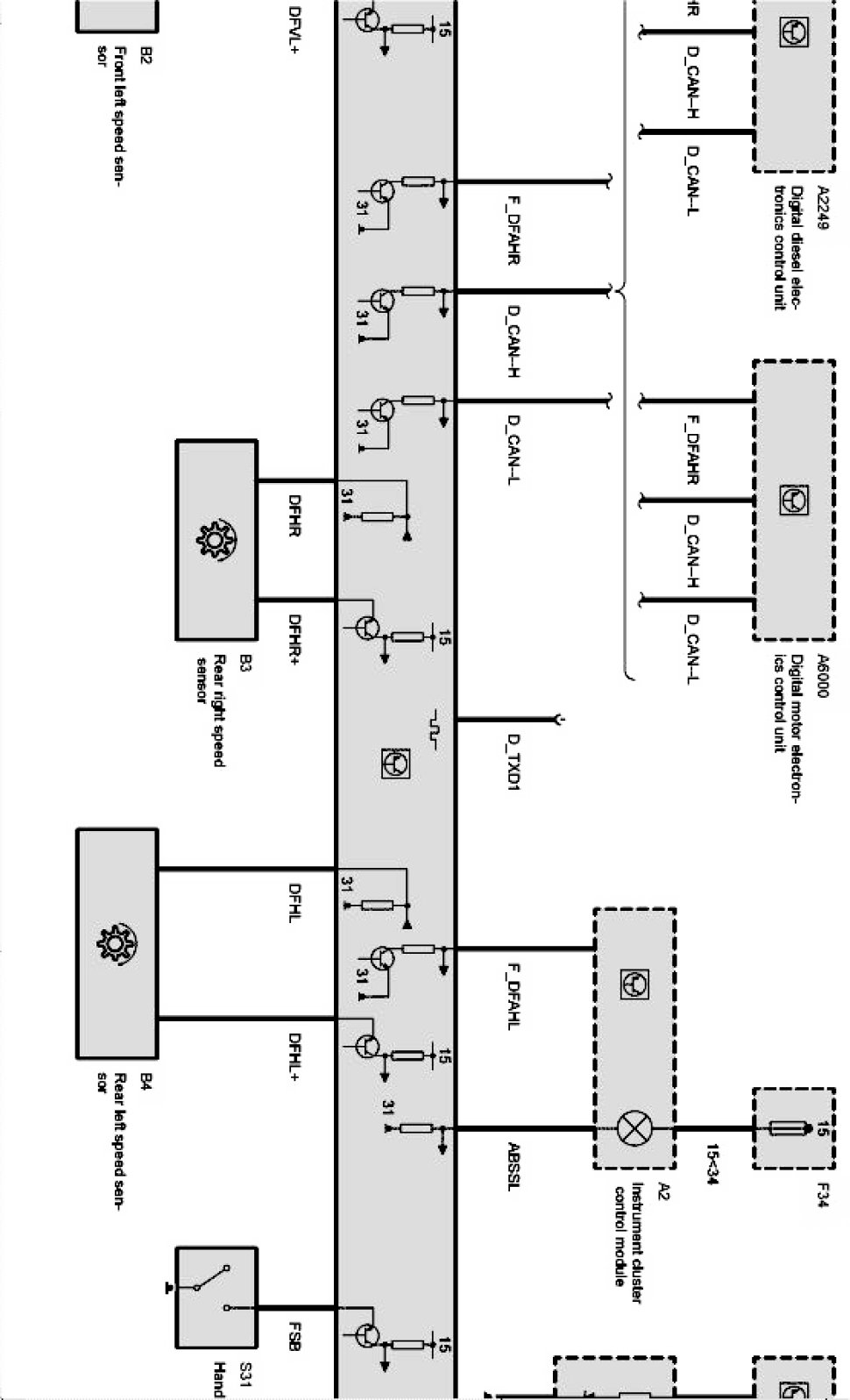

Dynamic Stability Control Part 4:



Dynamic Stability Control Part 5:
