Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Signal and Warning Functions >> Parking Aid (PDC Park Distance Control) >> Distance Warning (As of 03/03)

Distance Warning (As of 03/03)

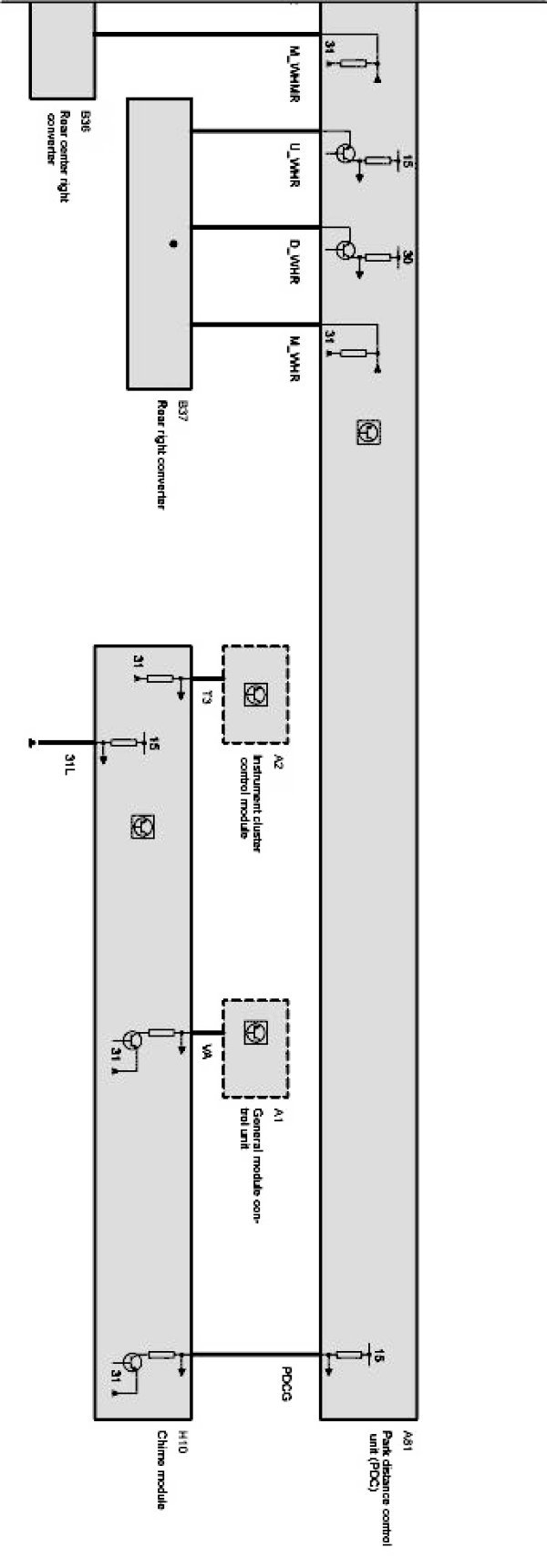

Distance warning Part 1:

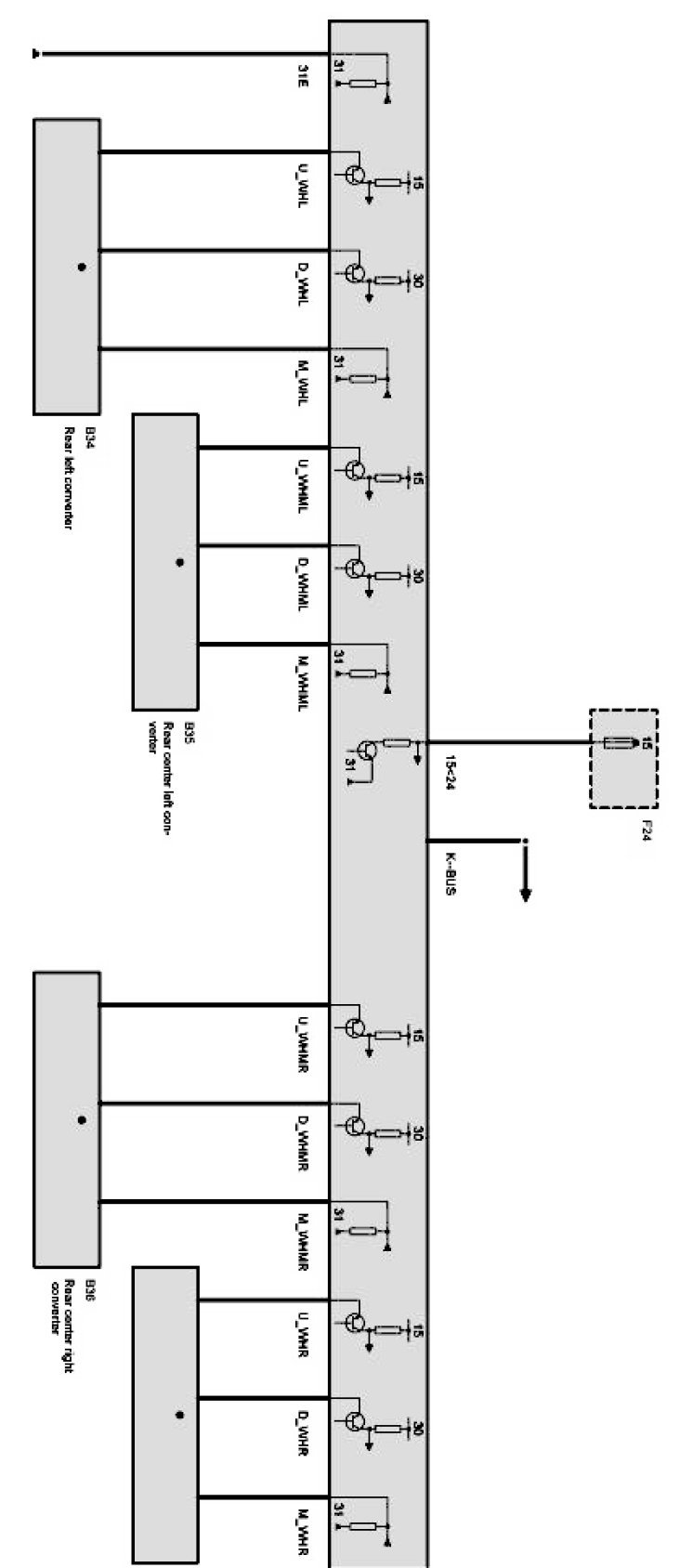

Distance warning Part 2:
