M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Seat, Steering-Column, Mirror Functions
>>
Seat Heating, Front Right
>>

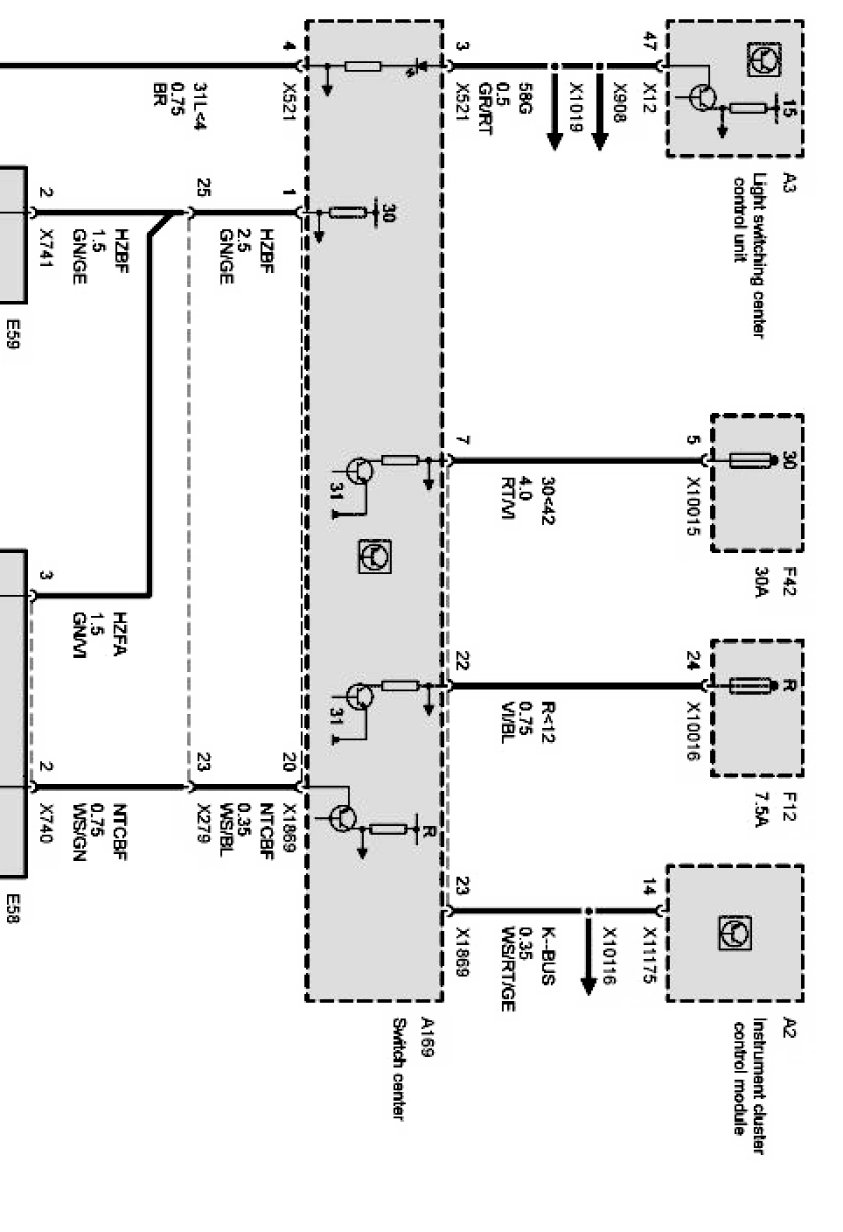

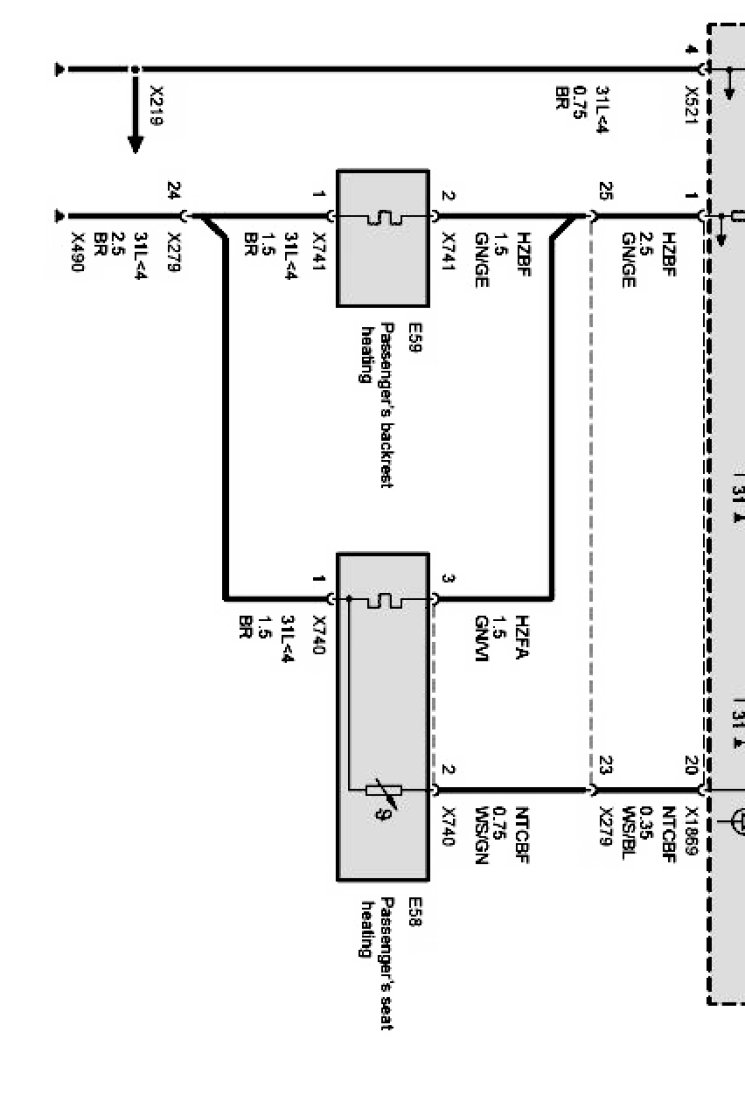

Passenger's Seat Heating (As of 09/99 Up to 09/00)
Passenger's Seat Heating (As of 09/99 Up to 09/00)
