FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2005
>>
M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Seat, Steering-Column, Mirror Functions
>>
Seat Heating, Front Left
>>

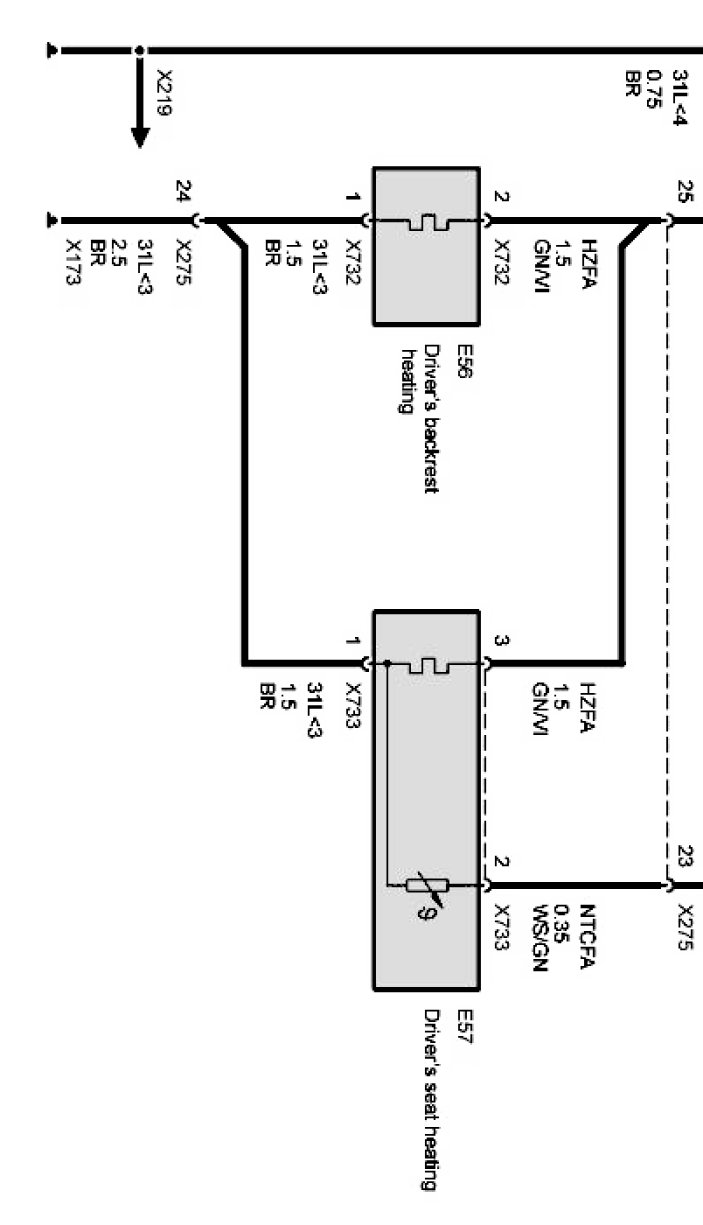

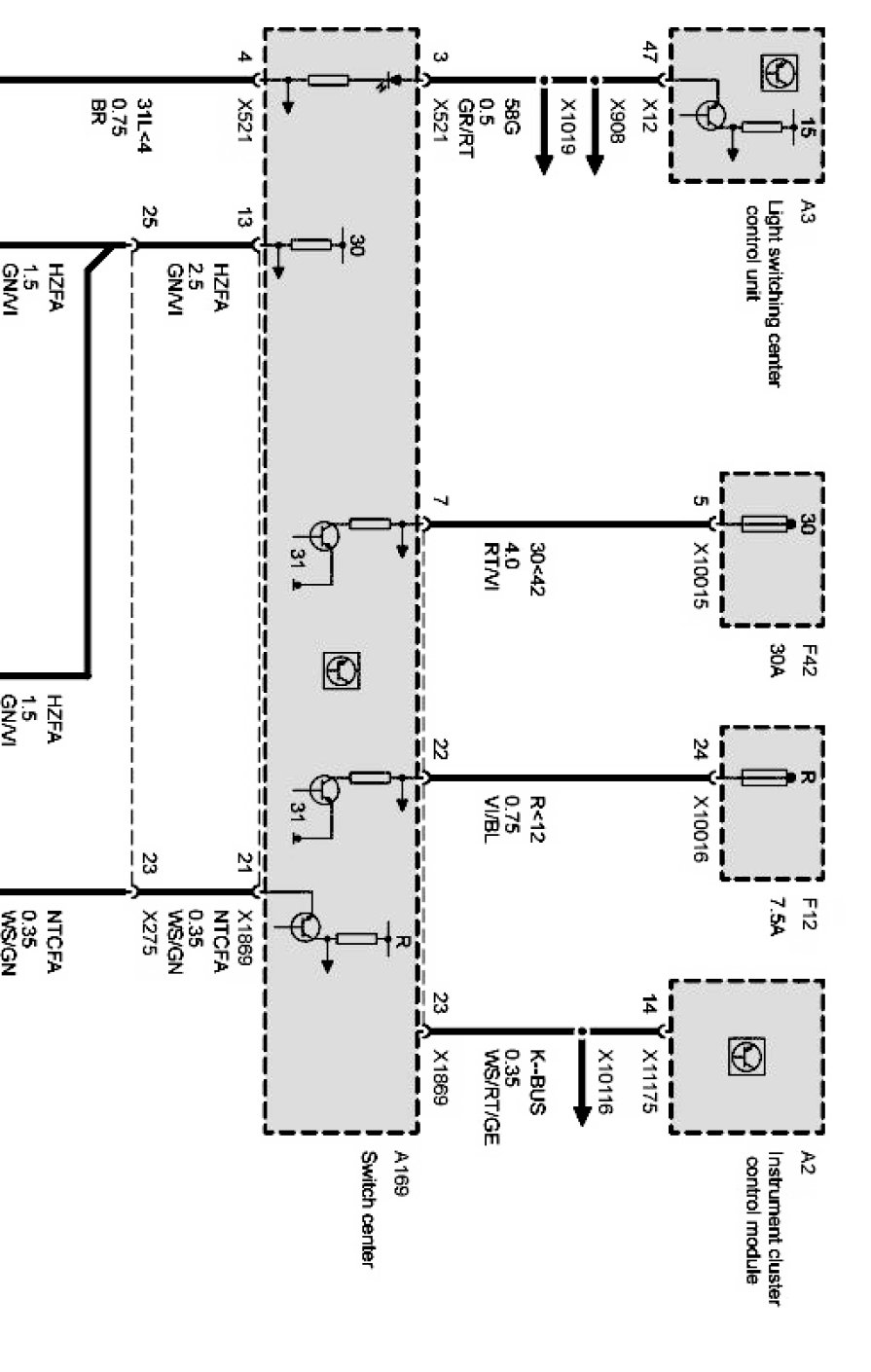

Driver's Seat Heating (As of 09/99 Up to 09/00)
Driver's Seat Heating (As of 09/99 Up to 09/00)
