Driver's Lumbar Support With Backrest Width Adjustment (DME Motor Electronics MSS54)

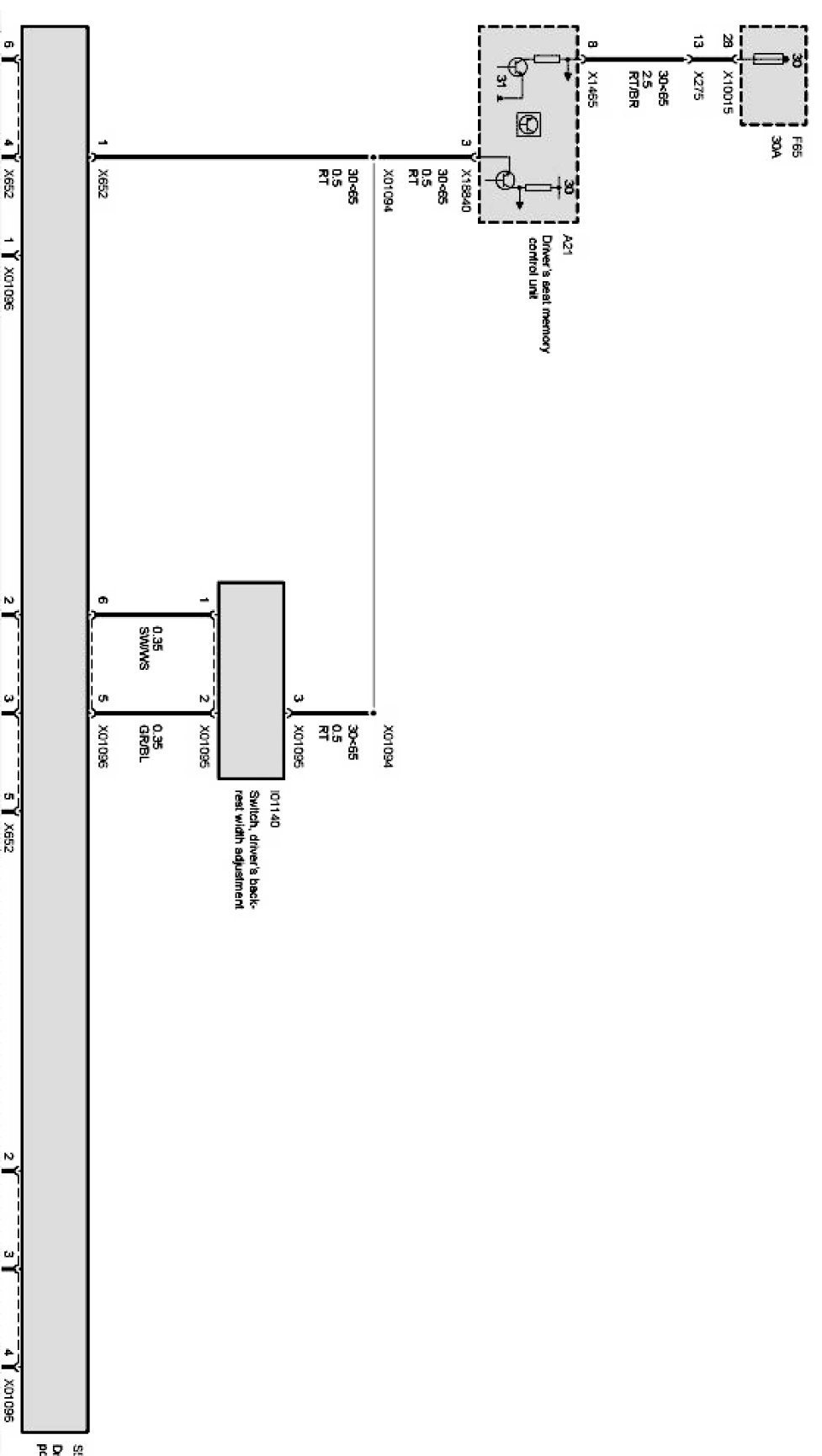

Driver's lumbar support with backrest width adjustment Part 1:

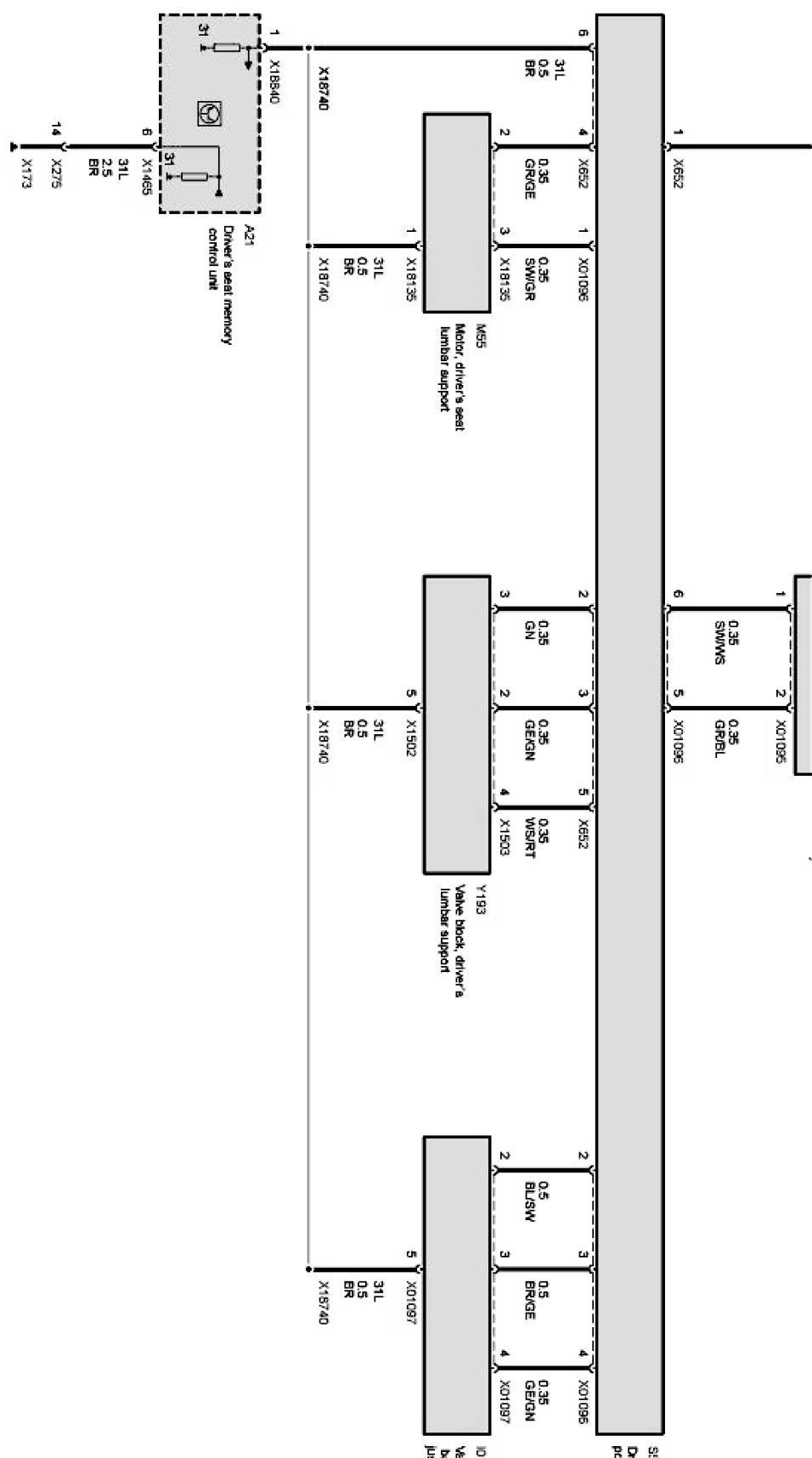

Driver's lumbar support with backrest width adjustment Part 2:



Driver's lumbar support with backrest width adjustment Part 3:
