Sunroof (Saloon or Coupe or Touring or Compact)
>>
Sliding/Tilting Sunroof Module
Sliding/Tilting Sunroof Module

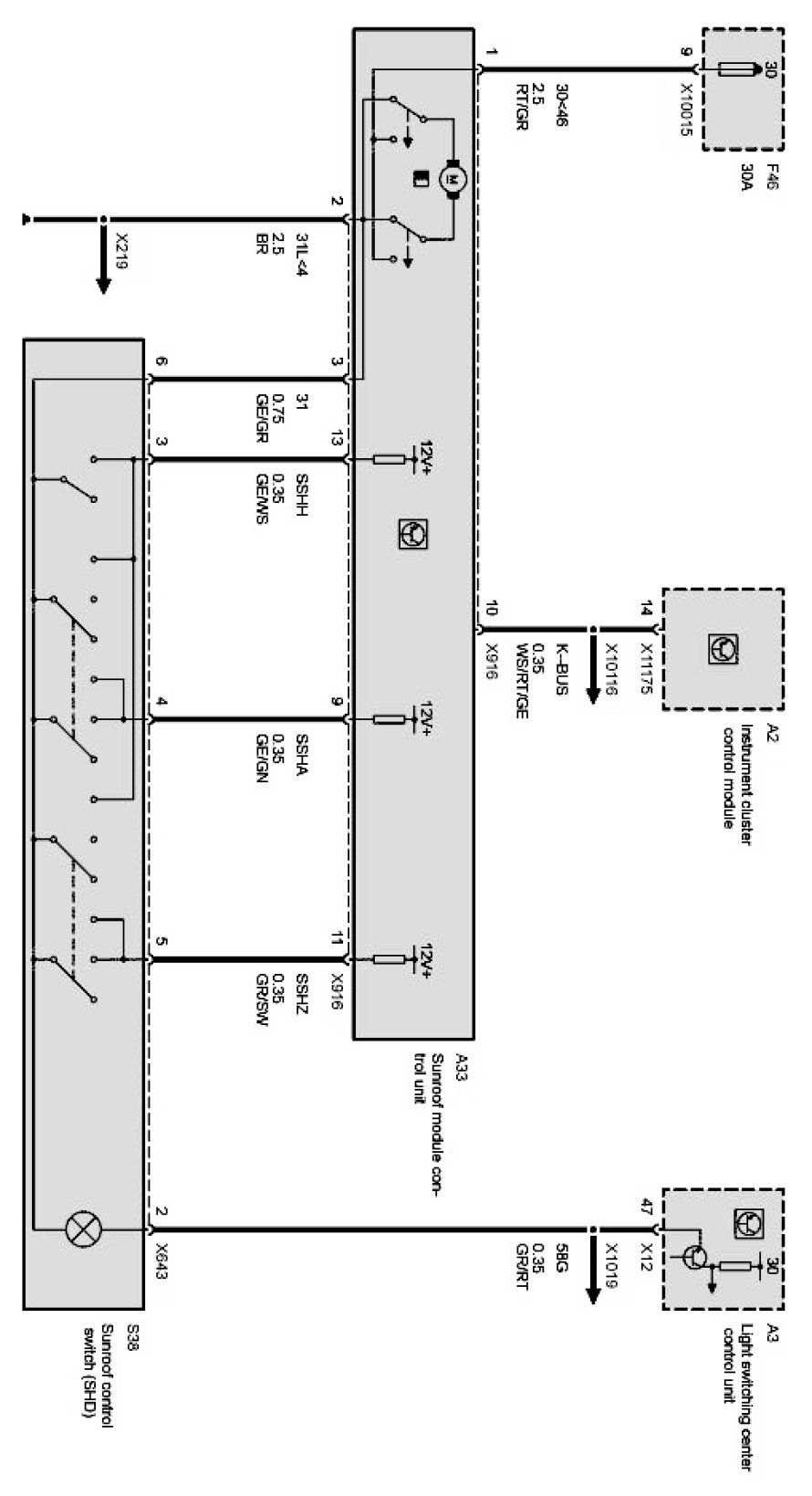

Slide/tilt sunroof:
