Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Remote Control >> Infrared Remote Control >> Central Locking System (Without Automatic Transmission)

Central Locking System (Without Automatic Transmission)

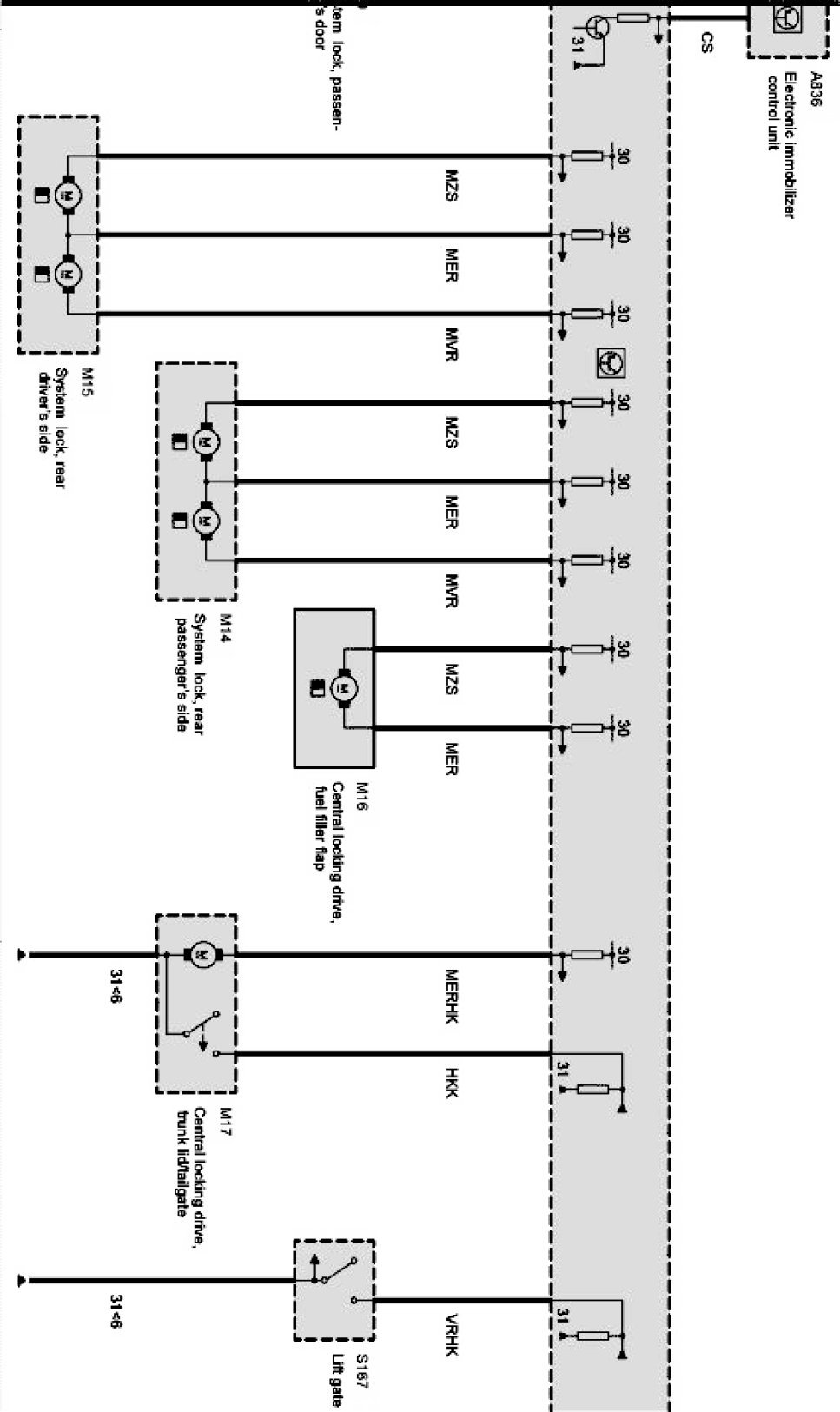

Central locking Part 1:

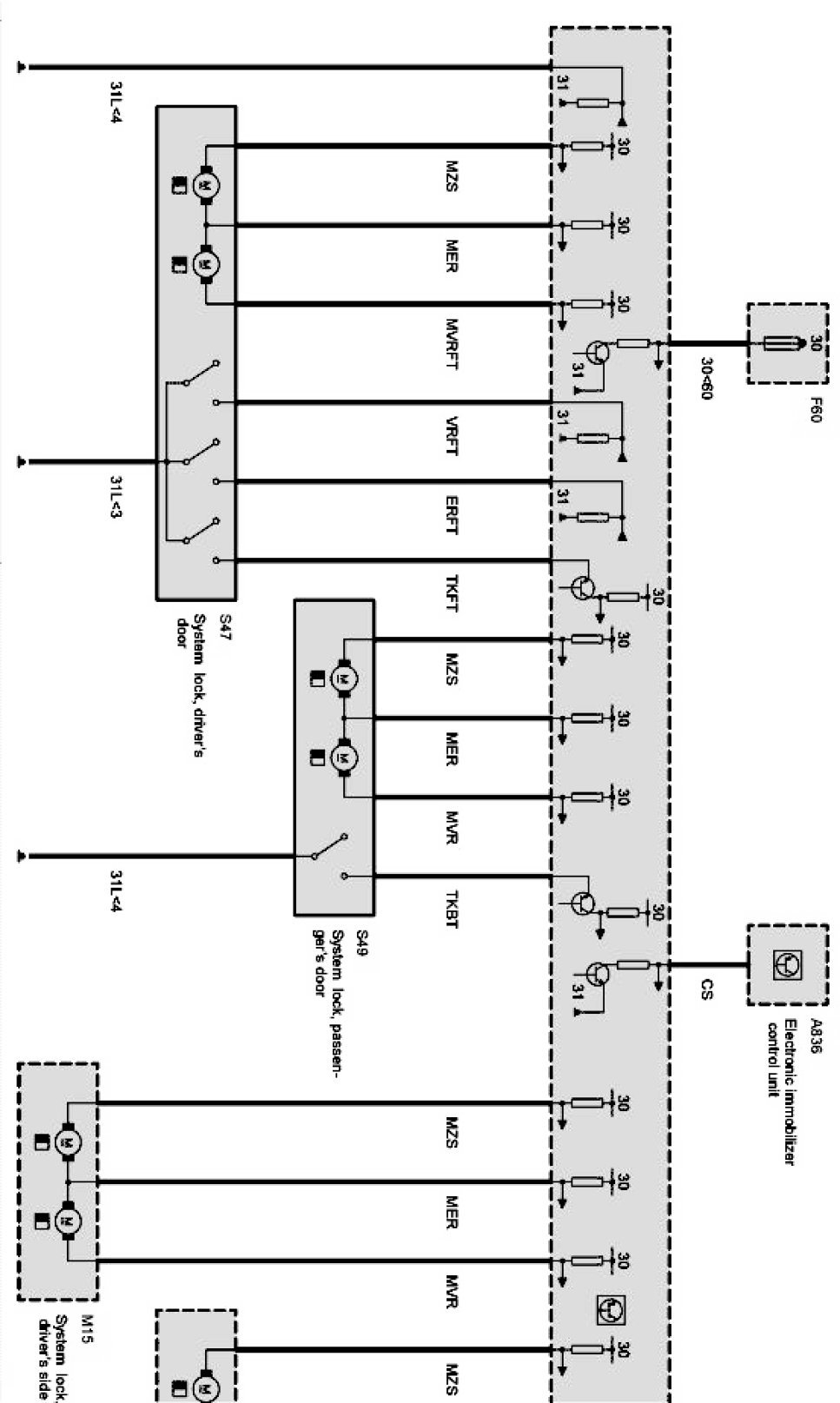

Central locking Part 2:

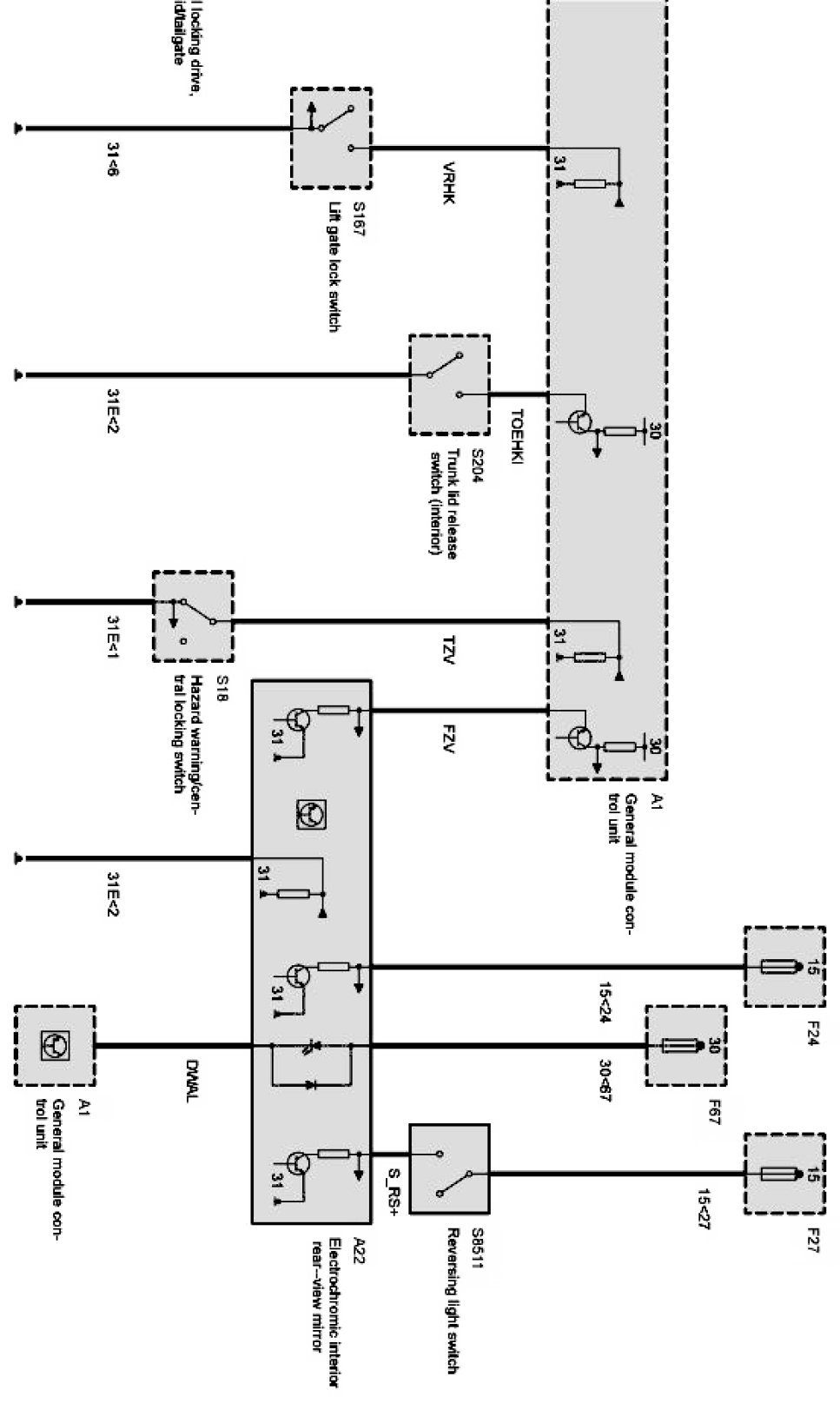

Central locking Part 3:
