Connector X10116 (As of 09/01)

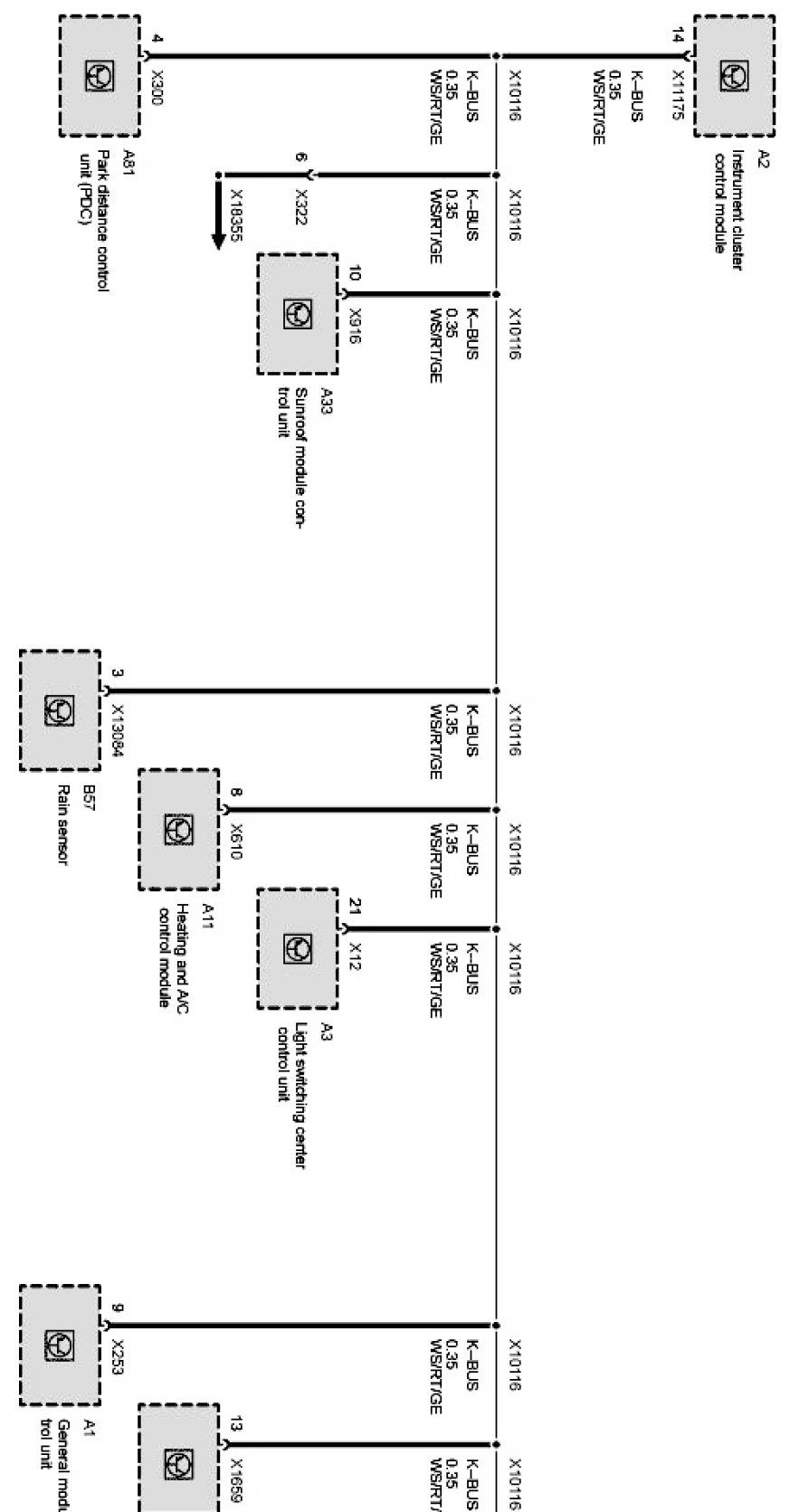

Connector X10116 Part 1:

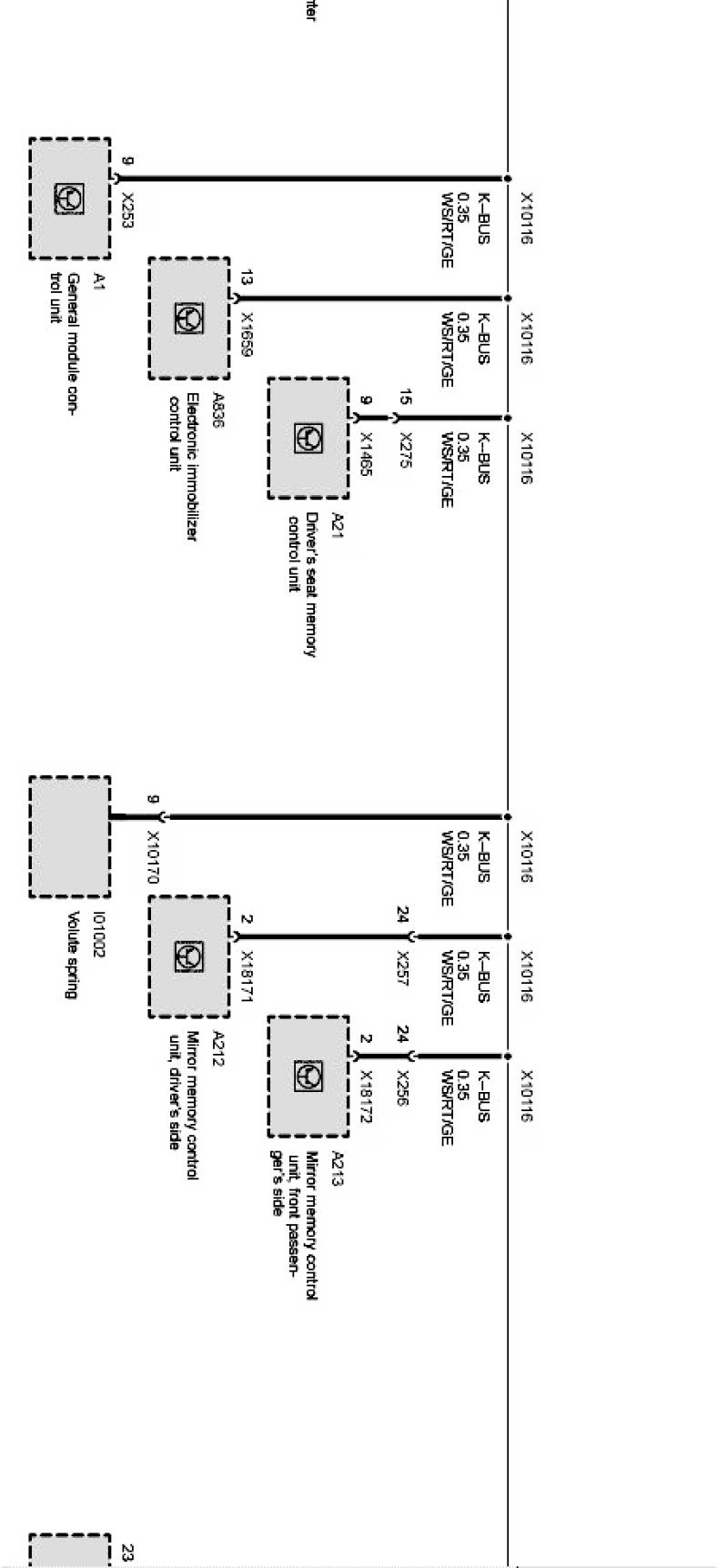

Connector X10116 Part 2:



Connector X10116 Part 3:
